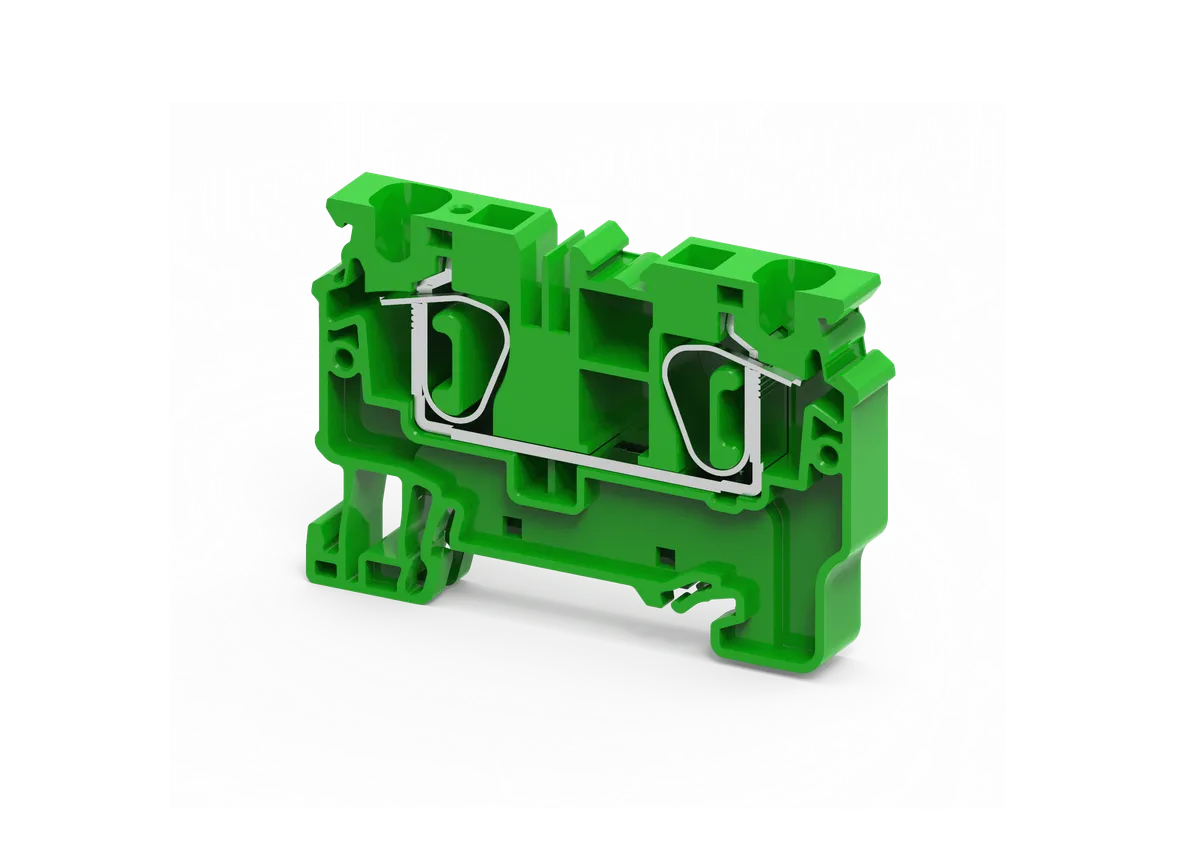

CX2.5GN is a compact and reliable 2.5 sq.mm spring clamp feed through terminal block designed for secure conductor termination and efficient electrical distribution in industrial control panels, automation systems, switchgear assemblies, machine wiring, and power distribution applications. The green housing provides visual identification support for organized wiring layouts and structured electrical installations.
Built with advanced spring clamp connection technology, CX2.5GN provides vibration-resistant and maintenance-free wire termination. Unlike conventional screw terminals that may loosen because of vibration, thermal cycling, or mechanical movement, the internal spring mechanism continuously applies stable contact pressure to maintain dependable electrical conductivity over long operating periods.
The terminal block uses a feed through connection design, enabling safe and efficient conductor routing across electrical circuits. Feed through terminals are widely used in industrial wiring applications where stable current transmission and organized cable management are required. The design allows quick conductor connection while reducing installation effort and improving panel cleanliness.
CX2.5GN features a top-entry conductor orientation, making wiring more convenient in compact electrical enclosures. During installation, the spring mechanism is opened using a standard screwdriver, allowing wire insertion into the terminal opening. Once the tool is removed, the internal spring securely clamps the conductor onto the current bar, creating a strong and reliable electrical connection.
Designed for DIN rail mounting, CX2.5GN supports installation on DIN 35 and DIN 35-15 rails, making it compatible with standard industrial panel construction methods. DIN rail mounting enables quick assembly, simplified maintenance, and flexible system expansion without major panel modifications.
Its compact 5 mm width allows high-density wiring while preserving accessibility during installation and servicing. Modern control panels often require efficient use of available enclosure space, and the narrow body design of CX2.5GN supports optimized panel organization and improved conductor management.
The terminal block supports multiple conductor configurations including 0.2 to 2.5 sq.mm stranded conductors and up to 4 sq.mm solid conductors, making it suitable for a broad range of industrial electrical applications. Compatibility with ferrules and flexible conductors further improves installation flexibility and long-term connection reliability.
Manufactured using industrial-grade polyamide housing, CX2.5GN provides excellent insulation performance, mechanical durability, and dimensional stability. The housing material is engineered to perform under industrial operating conditions involving vibration, temperature variation, and continuous electrical operation.
With a rated voltage of 1000V and rated current of 24A, this terminal block supports dependable electrical transmission across control and distribution circuits. The product also offers a rated surge voltage of 8 kV and is designed for pollution degree 3 environments, contributing to improved electrical safety and stable long-term operation. Rated current values apply when using copper conductors.
The green terminal housing can assist in structured conductor identification and panel organization where color-based terminal allocation is used. Organized terminal layouts simplify maintenance procedures and reduce installation errors in large electrical systems.
CX2.5GN is widely used in industrial control panels, PLC cabinets, switchboards, instrumentation systems, machine control systems, OEM equipment, automation installations, and electrical distribution assemblies where secure and maintenance-free conductor termination is essential.
Its combination of compact dimensions, reliable spring clamp operation, and industrial-grade insulation makes CX2.5GN a dependable solution for modern electrical panel applications requiring organized wiring and long-term performance.
| Specification | Details |
|---|---|
| Product Code | CX2.5GN |
| Product Type | Feed Through Terminal Block |
| Connection Technology | Spring Clamp |
| Terminal Function | Feed Through |
| Rated Voltage | 1000 V |
| Rated Current | 24 A |
| Housing Material | Polyamide |
| Housing Color | Green |
| Wire Entry Orientation | Top Entry |
| Mounting Type | DIN 35 / DIN 35-15 Rail |
| Rated Surge Voltage | 8 kV |
| Pollution Degree | 3 |
| Stranded Conductor Range | 0.2–2.5 sq.mm |
| Solid Conductor Range | 0.2–4 sq.mm |
| AWG Range | 24–12 AWG |
| Stripping Length | 10 mm |
| Width | 5 mm |
| Length | 50 mm |
Technical values compiled from published specifications.
CX2.5GN is suitable for:
