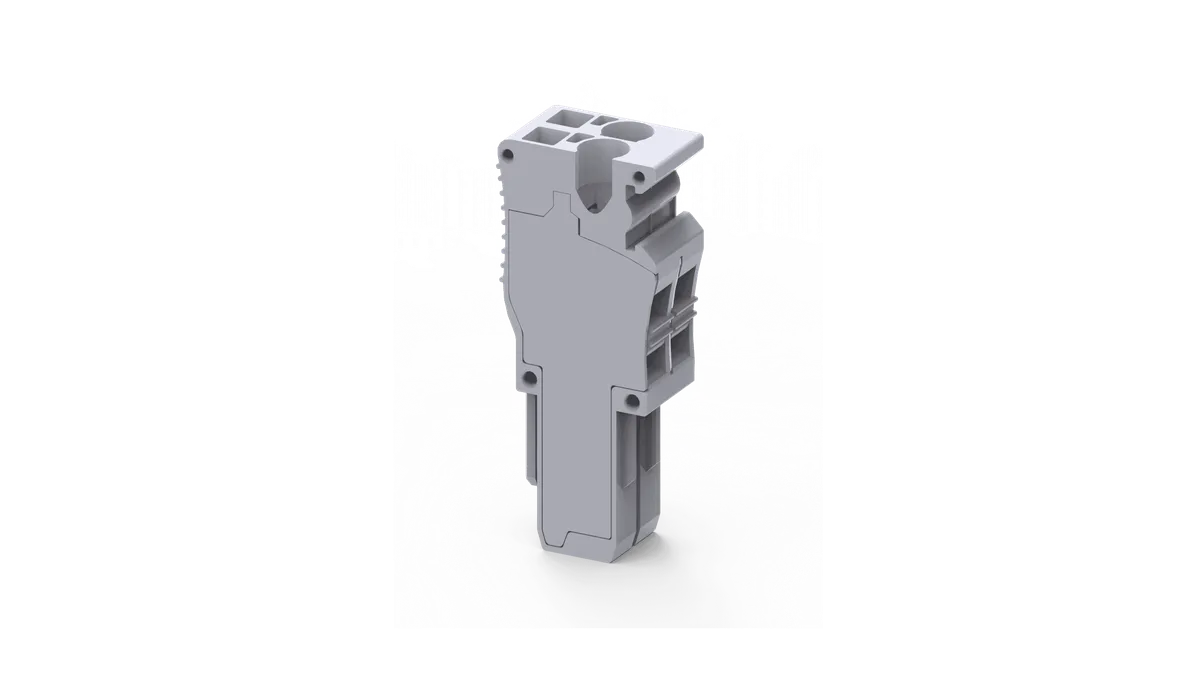

CX2.5PLN is a compact and reliable 2.5 sq.mm 1 pole plug spring clamp stack end terminal block designed for pluggable electrical connections and structured wire harness applications in industrial electrical systems. This terminal is developed as part of a modular pluggable terminal system, enabling faster field wiring, simplified maintenance, and efficient conductor management inside industrial control panels, automation systems, machine wiring installations, and electrical cabinets.
The product functions as a stack end plug terminal, allowing it to act as the end element in modular pluggable terminal assemblies. Its modular architecture enables multiple plug terminals to be stacked together to create customized multi-pole connector arrangements according to application requirements. This design improves flexibility and reduces installation effort in industrial panel construction.
CX2.5PLN is commonly used in applications where wiring assemblies require quick disconnection and reconnection during commissioning, maintenance, equipment replacement, or field servicing. The pluggable configuration allows technicians to remove and reconnect complete wiring groups without disturbing adjacent conductors, reducing downtime and improving maintenance efficiency.
The terminal block uses spring clamp connection technology, which provides vibration-resistant and maintenance-free conductor termination. The spring-operated mechanism applies continuous clamping force to the conductor and eliminates the need for periodic retightening commonly associated with traditional screw-based terminals.
Installation is performed using a standard screwdriver to open the spring mechanism for conductor insertion. Once the conductor is inserted and the tool is removed, the internal spring securely clamps the conductor onto the current bar, ensuring stable electrical continuity and long-term connection reliability.
CX2.5PLN is designed to support wire harness and field connection applications, making it especially useful in automation equipment, OEM machine manufacturing, modular electrical systems, and industrial devices requiring repeated connection cycles. The plug arrangement supports rapid replacement and easier installation in confined panel spaces.
With a rated current capacity of 24A and rated voltage of 500V, the terminal provides dependable electrical performance across industrial wiring applications. These ratings are specified for use with copper conductors and suitable installation practices.
The terminal supports conductor sizes from 0.2 sq.mm to 2.5 sq.mm and wire ranges from 24–12 AWG, allowing flexibility across different industrial wiring requirements. It supports both stranded and ferrule-based conductor terminations for improved installation versatility.
Manufactured using polyamide insulated housing, CX2.5PLN offers excellent insulation performance, mechanical durability, and stable operation under industrial environmental conditions including vibration and thermal variation.
Its compact 5 mm width and 17.5 mm length support high-density wiring layouts while maintaining accessibility during installation and servicing. The terminal is suitable for installations where panel space optimization is important.
CX2.5PLN is compatible with selected pluggable feed through and grounding base terminal systems, enabling flexible modular expansion and connector customization across industrial electrical applications.
This terminal is widely used in industrial control panels, automation systems, machine building, electrical cabinets, OEM equipment manufacturing, PLC systems, switchgear assemblies, and wire harness applications where modular and service-friendly electrical connectivity is required.
| Specification | Details |
|---|---|
| Product Code | CX2.5PLN |
| Product Type | Plug Spring Clamp Stack End Terminal |
| Configuration | 1 Pole |
| Connection Technology | Spring Clamp |
| Product Function | Plug Connection |
| Rated Voltage | 500 V |
| Rated Current | 24 A |
| Housing Material | Polyamide |
| Housing Color | Grey |
| Wire Range | 0.2–2.5 sq.mm |
| AWG Range | 24–12 AWG |
| Width | 5 mm |
| Length | 17.5 mm |
| Height | 42 mm |
| Mounting Type | Plug / Modular Assembly |
| Connection Style | Spring Operated |
| Standard Pack | 100 Pieces |
Technical values compiled from published technical references.
CX2.5PLN is suitable for:
Supports quick connection and disconnection of wiring assemblies.
Pluggable design simplifies servicing and replacement.
Improves conductor management and cable routing.
Spring clamp technology maintains secure conductor pressure.
Compact construction supports high-density installations.
