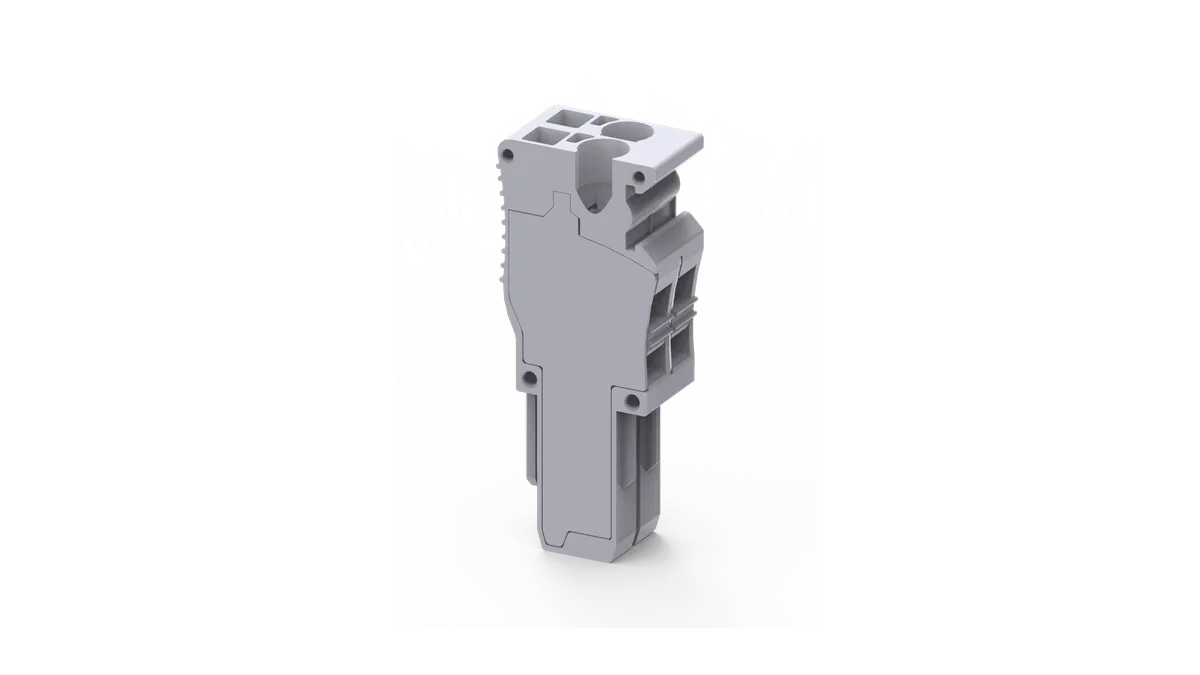

CX2.5PN/2 is a 2 pole pluggable spring clamp terminal block designed for secure electrical connection, modular wiring, and fast plug-in circuit termination in industrial electrical systems. It is specially engineered for applications where two circuits need to be connected through one compact pluggable connector while maintaining safe, vibration-resistant, and maintenance-free electrical continuity. This makes it an ideal solution for modern industrial control panels, automation systems, PLC panels, instrumentation circuits, machine wiring systems, and modular electrical assemblies where fast connection and disconnection are essential.
The main function of CX2.5PN/2 is to provide a 2-way pluggable electrical connection through a compact spring clamp plug connector, allowing quick wiring connection and easy plug-in / plug-out operation during installation, maintenance, or replacement. Unlike conventional fixed wiring systems, this pluggable design allows the complete wiring assembly to be disconnected and reconnected without disturbing individual conductors, reducing downtime and improving maintenance convenience in industrial applications.
Its spring clamp connection technology provides a secure conductor holding mechanism through constant spring pressure, eliminating the need for periodic screw tightening. The spring mechanism automatically maintains strong clamping force on inserted conductors, ensuring stable electrical continuity, secure wire retention, low contact resistance, gas-tight conductor contact, and vibration-resistant connection performance. This makes CX2.5PN/2 highly suitable for industrial environments where machinery vibration and long-term wiring reliability are critical.
One of the major advantages of CX2.5PN/2 is its 2 pole compact pluggable design, which allows two circuits to be connected in one organized plug assembly while saving valuable panel space. The modular stackable construction also allows multiple plugs to be combined together for custom wiring harness creation, helping improve wiring flexibility and panel organization in industrial electrical systems. This reduces cable clutter, simplifies circuit grouping, and supports professional panel design.
The pluggable modular structure provides fast installation and maintenance support. Once the wires are securely terminated into the spring clamp terminals, the complete plug assembly can be inserted or removed from the corresponding socket terminal without disconnecting individual wires. This helps improve troubleshooting speed, reduces machine downtime, and supports modular servicing in industrial automation systems. It also allows safer replacement of electrical sections during maintenance work.
The side wire entry design improves wiring accessibility and allows easier conductor insertion during installation. Its screwdriver-actuated spring clamp mechanism supports safe hands-free conductor insertion and secure locking, making installation faster and more efficient compared to conventional screw-type plug connectors.
Manufactured using high-strength engineering-grade polyamide insulated housing with industrial conductive components, CX2.5PN/2 provides excellent electrical insulation, strong mechanical durability, heat resistance, low resistance electrical contact, secure conductor retention, and long service life in demanding industrial environments. Its compact plug body is designed for industrial modular wiring systems where reliability, flexibility, and safe electrical continuity are essential.
This pluggable spring clamp terminal block is widely used in control panels, PLC systems, industrial automation, instrumentation panels, switchgear assemblies, machine wiring systems, process control panels, HVAC electrical systems, OEM electrical equipment, relay circuits, and modular industrial wiring applications where quick plug-in connection and reliable 2 circuit electrical wiring are required.
