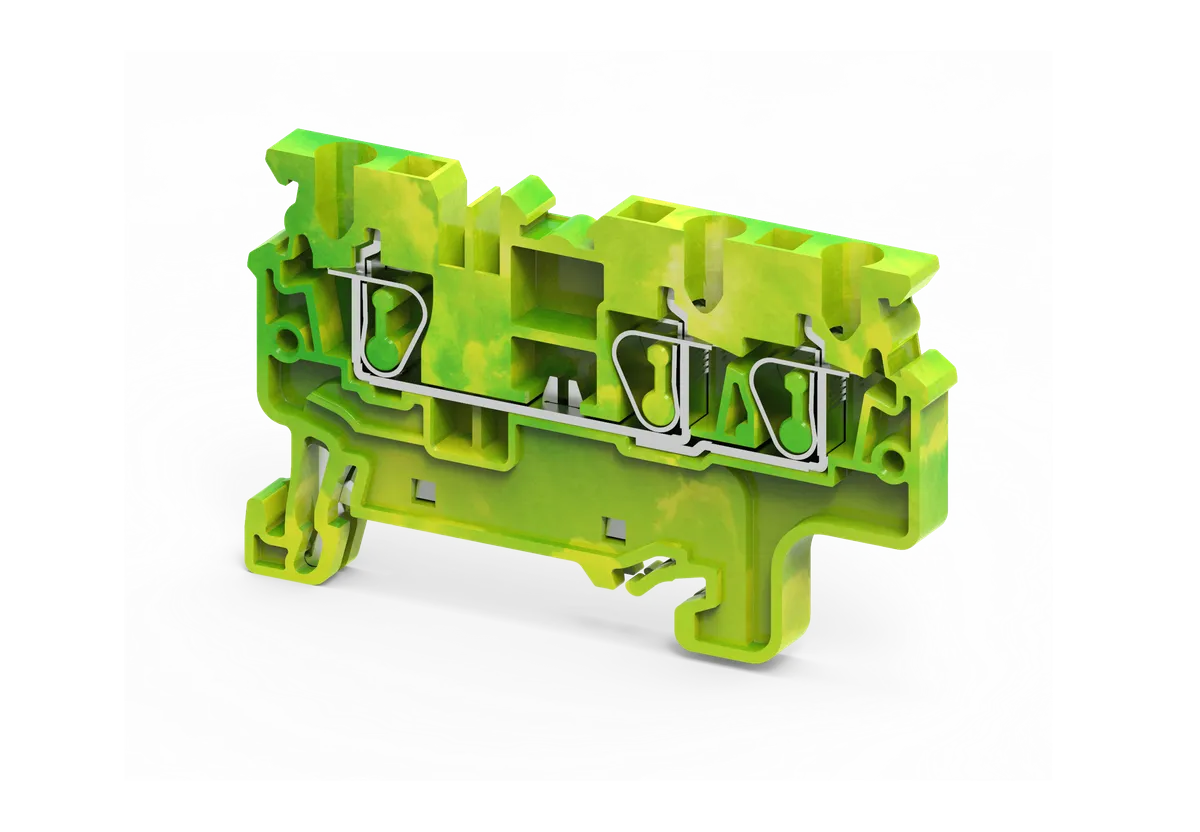

The CXG2.5/3/1B is a compact and high-performance triple-level ground terminal block designed for secure earthing connectivity and reliable electrical grounding in industrial automation and electrical control systems. Engineered for professional panel installations, this terminal block provides dependable grounding performance while maximizing panel space efficiency in high-density industrial applications.
Manufactured using premium flame-retardant polyamide material with high-conductivity grounding components, the CXG2.5/3/1B offers excellent electrical insulation, thermal resistance, and superior mechanical durability. Its industrial-grade construction ensures reliable long-term operation even in environments exposed to vibration, heat, and continuous electrical load.
The terminal block supports 2.5 sq.mm conductor capacity, making it suitable for industrial grounding systems, automation cabinets, machine control circuits, instrumentation panels, electrical distribution boards, and process control applications.
One of the major highlights of the CXG2.5/3/1B is its triple-level grounding configuration, which allows multiple grounding connections within a compact installation area. This helps improve organized panel wiring and supports efficient DIN rail space utilization inside industrial electrical systems.
The green-yellow housing design enables quick identification of grounding circuits inside industrial electrical panels and automation systems. The color-coded structure improves organized wiring management and simplifies installation, maintenance, and troubleshooting activities.
Its compact modular structure supports efficient use of panel installation space while maintaining clean and professional electrical layouts. The triple-level arrangement makes it highly suitable for high-density industrial electrical panels requiring organized earthing systems.
The CXG2.5/3/1B features a secure screw clamp connection mechanism that ensures strong conductor retention and vibration-resistant electrical performance. This provides stable grounding conductivity and minimizes the possibility of loose electrical connections during long-term industrial operation.
Its side-entry wire connection configuration simplifies conductor insertion and allows convenient access during installation and servicing procedures. The terminal block is fully compatible with standard DIN rail mounting systems, enabling quick and organized installation inside industrial control systems and automation cabinets.
The CXG2.5/3/1B is widely used across industries such as industrial automation, manufacturing plants, renewable energy systems, HVAC systems, instrumentation engineering, process control industries, machine manufacturing, and factory automation projects.
Its combination of triple-level grounding capability, durable insulated construction, compact DIN rail design, and organized earthing identification makes it an ideal solution for industrial systems requiring safe and efficient electrical grounding.
The CXG2.5/3/1B delivers dependable grounding performance, optimized panel organization, and long operational reliability for modern industrial electrical applications.
| Specification | Details |
|---|---|
| Product Model | CXG2.5/3/1B |
| Product Type | Triple Level Ground Terminal Block |
| Conductor Capacity | 2.5 Sq.mm |
| Color | Green-Yellow |
| Rated Voltage | 800 V |
| Rated Current | 24 A |
| Mounting Type | DIN Rail Mounting |
| Connection Type | Screw Clamp |
| Housing Material | Flame Retardant Polyamide |
| Grounding Function | Yes |
| Level Configuration | Triple Level |
| Wire Entry | Side Entry |
| Tightening Torque | 0.4 Nm |
| Strip Length | 8 mm |
| Installation Type | Panel Mounted |
| Operating Temperature | -40°C to +105°C |
| Industrial Usage | Earthing & Electrical Protection |
| HSN Code | 85389000 |
| Country of Origin | India |
The CXG2.5/3/1B is suitable for industrial systems requiring organized multi-level grounding connectivity and reliable earthing protection.
Its triple-level grounding functionality makes it highly suitable for compact industrial electrical installations.
Triple-level structure allows multiple grounding connections within limited panel space.
Provides secure grounding connectivity for industrial electrical safety systems.
Green-yellow housing simplifies earthing circuit identification and maintenance.
Secure screw clamp mechanism ensures stable and vibration-resistant conductor termination.
Space-saving modular structure supports organized electrical installations.
Quick mounting compatibility simplifies electrical panel assembly and maintenance.
Manufactured using premium insulated material for dependable long-term operation.
The CXG2.5/3/1B is designed for industrial systems requiring compact grounding solutions and dependable electrical safety.
Professionals prefer this terminal block because of:
Its dependable industrial performance makes it ideal for automation systems, electrical panels, and industrial grounding applications.
