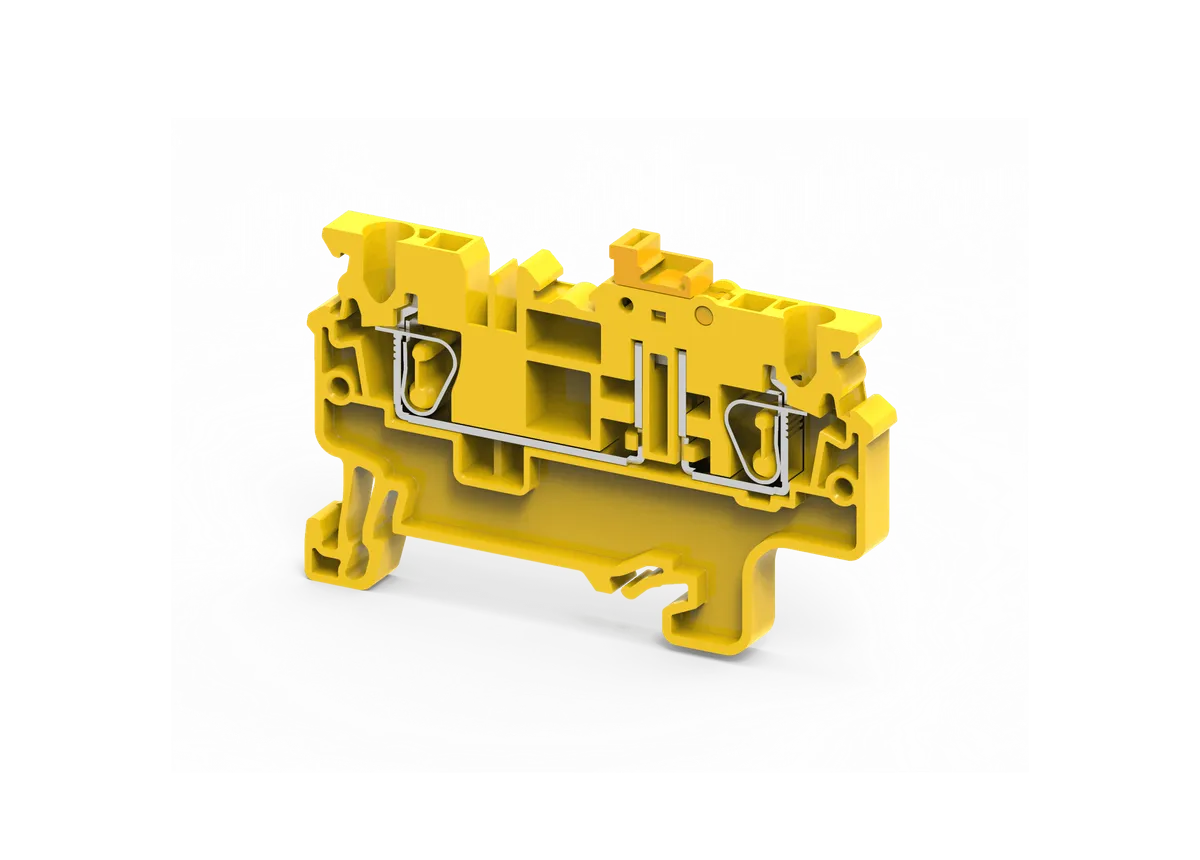

The CXK2.5Y is a compact and reliable knife disconnect spring clamp terminal block designed for industrial electrical and automation applications requiring safe circuit isolation, secure conductor termination, and dependable electrical performance. This 2.5 sq.mm terminal block is widely used in PLC panels, control systems, switchgear assemblies, instrumentation circuits, machine control wiring, and industrial automation systems.
Built with advanced spring clamp technology, the CXK2.5Y provides maintenance-free and vibration-resistant conductor connections, ensuring stable electrical performance even in demanding industrial environments. The integrated knife disconnect mechanism allows technicians to safely isolate electrical circuits during maintenance, testing, and troubleshooting without removing conductors from the terminal block.
Its slim DIN rail mounted design supports organized wiring and efficient panel space utilization in modern electrical control systems. The yellow housing color enables quick circuit identification and improves wiring management inside industrial control panels.
Manufactured using high-quality polyamide material, the CXK2.5Y offers excellent electrical insulation, heat resistance, and mechanical durability for long-term industrial operation.
The CXK2.5Y knife disconnect terminal block is specially engineered for industrial electrical systems where secure conductor connectivity and quick circuit isolation are important. The spring clamp connection system provides strong conductor holding without requiring periodic retightening, reducing maintenance effort and improving reliability.
The integrated knife disconnect feature enables safe interruption of electrical circuits for inspection, testing, and maintenance procedures. This improves troubleshooting efficiency and enhances operator safety during industrial servicing operations.
The terminal block supports conductor sizes ranging from 0.2 sq.mm to 2.5 sq.mm and is compatible with DIN 35 and DIN 35-15 mounting rails. Its slim 5 mm width supports high-density terminal arrangements while maximizing available panel space.
The CXK2.5Y is extensively used in industrial automation systems, electrical distribution panels, process control equipment, instrumentation systems, and machine control applications requiring dependable disconnect functionality and organized wiring.
| Specification | Details |
|---|---|
| Model Number | CXK2.5Y |
| Product Type | Knife Disconnect Spring Clamp Terminal Block |
| Color | Yellow |
| Rated Voltage | 1000 V |
| Rated Current | 20 A – 22 A |
| Wire Size Range | 0.2 sq.mm to 2.5 sq.mm |
| AWG Range | 24 AWG to 12 AWG |
| Mounting Type | DIN 35 / DIN 35-15 Rail |
| Connection Type | Spring Clamp |
| Housing Material | Polyamide |
| Width / Thickness | 5 mm |
| Length | 62.2 mm |
| Wire Entry Orientation | Top Entry |
| Operation | Screwdriver Operated |
| Application | Disconnect & Testing |
| Pollution Degree | 3 |
| Stripping Length | 10 mm |
| Mechanical Strength | High |
| Heat Resistance | Excellent |
| Corrosion Resistance | Yes |
| Industrial Usage | Automation & Control Panels |
The CXK2.5Y terminal block is widely used in industrial electrical systems requiring safe disconnect functionality and reliable wiring connections.
Its disconnect functionality makes it highly suitable for systems requiring regular testing and troubleshooting operations.
The integrated knife disconnect mechanism allows secure electrical isolation during maintenance and testing procedures.
Spring clamp technology eliminates the need for periodic tightening, reducing maintenance requirements.
Its slim 5 mm structure supports high-density terminal arrangements and optimized panel space usage.
The secure spring clamp system provides stable conductor contact and dependable current flow.
The terminal maintains reliable electrical connections even in industrial environments exposed to vibration.
The top-entry wiring configuration simplifies conductor insertion and improves installation efficiency.
Its polyamide housing provides excellent resistance to heat, mechanical stress, and harsh operating conditions.
Knife disconnect terminal blocks are important components in industrial control systems because they allow technicians to isolate electrical circuits quickly without disconnecting conductors manually. This improves maintenance efficiency, troubleshooting speed, and operational safety.
The CXK2.5Y is especially useful in automation systems, instrumentation circuits, and control panels where quick access for testing and signal interruption is required. Its spring clamp technology also improves connection reliability by maintaining consistent conductor pressure over long-term industrial use.
The yellow color housing further enhances circuit identification and organized panel wiring, especially in large and complex industrial electrical systems.
The CXK2.5Y offers a dependable combination of compact design, safe disconnect functionality, and maintenance-free spring clamp technology. It is ideal for industrial electrical systems requiring organized wiring, reliable conductor holding, and efficient troubleshooting capability.
Its durable construction, strong insulation properties, and vibration-resistant performance make it suitable for demanding industrial environments. The terminal block is widely preferred by automation engineers, industrial electricians, OEM manufacturers, and panel builders for professional control panel installations.
Whether used in automation systems, process control applications, or industrial machinery, the CXK2.5Y delivers safe, efficient, and reliable electrical connectivity.
