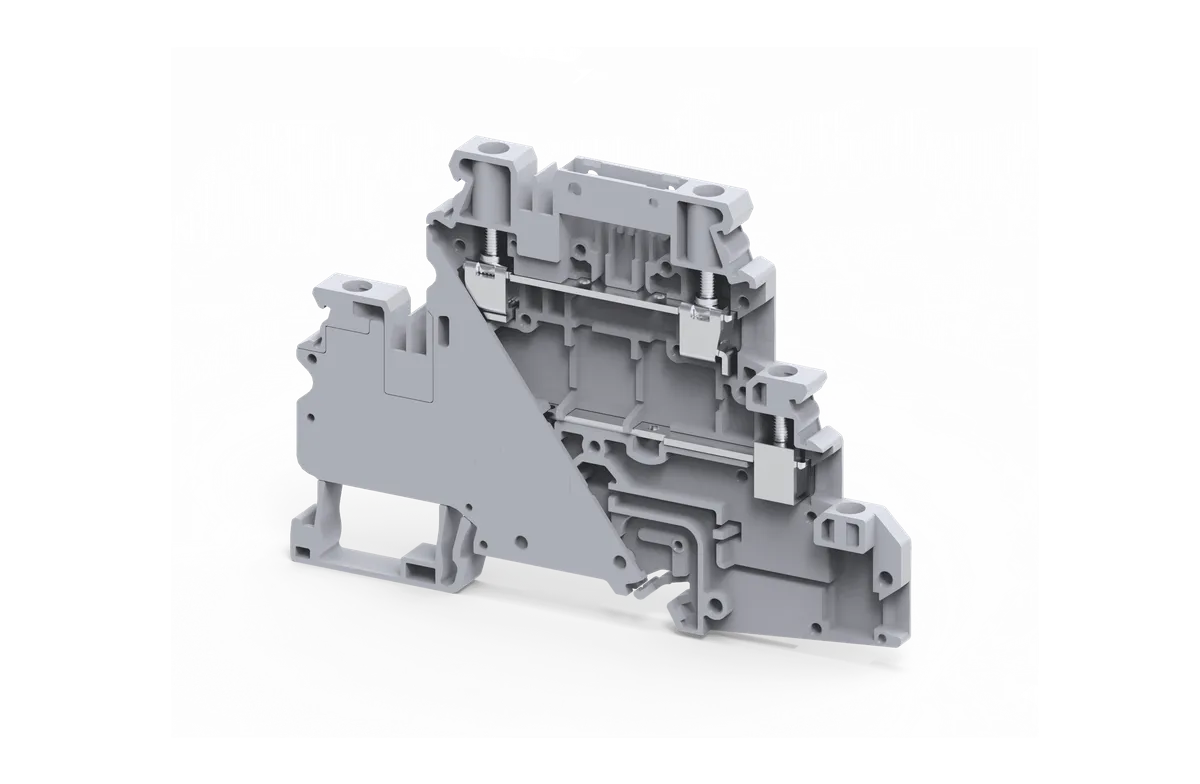

CYDLF4FT Double Level Feed Through Terminal Block is a compact and high-performance electrical connection component specially designed for multi-level wire termination, structured circuit distribution, and space-saving panel wiring in industrial electrical systems. It is widely used in control panels, switchgear assemblies, PLC systems, automation cabinets, machine wiring, instrumentation systems, and electrical distribution boards where reliable electrical connectivity and efficient use of panel space are required.
In modern industrial electrical systems, panel space optimization and organized wiring are critical for safe and efficient operation. The CYDLF4FT is designed with a double level feed through construction, allowing two levels of conductor termination in a compact terminal block body. This helps electrical engineers and panel builders reduce wiring congestion while improving terminal density and panel organization.
The CYDLF4FT provides secure conductor clamping and stable electrical continuity for safe current flow across industrial circuits. Its compact modular design supports high-density wiring installations, making it ideal for electrical panels where multiple circuits need to be connected in limited panel space.
Manufactured using industrial-grade polyamide insulation material, the CYDLF4FT offers excellent electrical insulation, heat resistance, mechanical strength, and long industrial service life. Its durable body construction and reliable conductive path make it suitable for continuous industrial operation under vibration, heat, dust, and demanding environmental conditions.
Its DIN rail mounting design supports quick installation, secure fitment, and organized terminal assembly in industrial control systems. The double level terminal structure helps improve circuit organization, simplifies wiring management, and supports professional panel finishing.
The CYDLF4FT is an ideal solution for industrial electricians, automation engineers, panel builders, OEM manufacturers, and electrical contractors looking for a compact and reliable terminal block for organized multi-level wiring systems.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
In industrial electrical systems, panel builders often require:
✔ Space-saving wire termination
✔ Multi-level conductor connection
✔ Structured circuit distribution
✔ Higher terminal density
✔ Organized wiring layout
✔ Safe electrical continuity
✔ Compact control panel wiring
✔ Reliable circuit interconnection
Without a double level terminal block, panels may face:
◆ Wiring congestion
◆ Increased panel space usage
◆ Difficult circuit organization
◆ Untidy wiring layout
◆ Complex maintenance access
◆ Reduced terminal density
◆ Difficult installation planning
The CYDLF4FT solves these issues by providing a compact double level feed through terminal block for structured and space-efficient electrical wiring.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
◆ Double level feed through terminal design
◆ 4 sq.mm conductor capacity
◆ Space-saving compact structure
◆ Secure wire termination support
◆ High terminal density wiring solution
◆ DIN rail mounting design
◆ Reliable conductive path
◆ Durable polyamide insulation body
◆ Low resistance electrical contact
◆ Organized multi-level circuit connection
◆ Easy installation support
◆ Compact modular construction
◆ Heat-resistant body design
◆ Vibration-resistant performance
◆ Long industrial service life
◆ Professional panel wiring solution
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
The CYDLF4FT works by providing two levels of conductor termination within a single compact terminal block body.
During operation:
✔ Conductors are inserted into terminal connection points
✔ Clamp mechanism secures wires firmly
✔ Stable electrical contact is maintained
✔ Current flows with low resistance
✔ Two-level wiring supports higher terminal density
✔ Panel space is optimized
✔ Organized circuit interconnection is maintained
✔ Safe wire termination is achieved
This improves wiring efficiency and structured panel design in industrial applications.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
The CYDLF4FT improves industrial electrical wiring by providing reliable multi-level conductor connectivity.
Its design helps:
✔ Improve circuit continuity
✔ Reduce wiring congestion
✔ Support compact panel wiring
✔ Minimize contact resistance
✔ Improve electrical safety
✔ Support higher terminal density
✔ Reduce panel space usage
✔ Improve wiring reliability
This makes it ideal for industrial control systems where compact and structured electrical wiring is required.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
The CYDLF4FT is manufactured using industrial-grade materials for dependable electrical and mechanical performance.
Its construction provides:
✔ High-strength polyamide housing
✔ Excellent electrical insulation
✔ Heat-resistant body material
✔ Flame-retardant construction
✔ Corrosion-resistant conductive parts
✔ Secure conductor clamping mechanism
✔ Compact industrial design
✔ Long service life
Its rugged construction supports reliable industrial use under:
◆ Heat
◆ Dust
◆ Vibration
◆ Moisture
◆ Continuous industrial operation
This ensures long-lasting performance in demanding industrial electrical systems.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
The CYDLF4FT improves panel wiring efficiency by supporting compact multi-level wire termination.
Its design supports:
✔ Better panel space utilization
✔ Organized conductor routing
✔ Cleaner panel appearance
✔ Higher terminal density
✔ Faster installation
✔ Easy troubleshooting access
✔ Reduced wiring clutter
✔ Professional panel finishing
This makes the CYDLF4FT highly suitable for industrial electricians, automation engineers, panel builders, and electrical contractors.
| Specification | Details |
|---|---|
| Product Model | CYDLF4FT |
| Product Type | Double Level Feed Through Terminal Block |
| Terminal Function | Multi-Level Wire Termination & Circuit Connection |
| Terminal Color | Grey |
| Rated Voltage | 500V |
| Rated Current | 32A |
| Conductor Size | 0.2 – 4 sq.mm |
| AWG Range | 24 – 10 AWG |
| Connection Type | Screw Clamp |
| Terminal Level | Double Level |
| Mounting Type | DIN Rail Mount |
| Housing Material | Industrial Grade Polyamide |
| Insulation Type | High Electrical Insulation |
| Dimensions (L x W x H) | 94 x 6 x 47.5 mm |
| Mechanical Strength | High |
| Heat Resistance | Yes |
| Corrosion Resistance | Yes |
| Moisture Resistance | Industrial Grade |
| Dust Resistance | Industrial Grade |
| Vibration Stability | Yes |
| Electrical Conductivity | High Conductive Contact Path |
| Mounting Stability | Secure Rail Fitment |
| Maintenance Benefit | Easy Wiring & Inspection Access |
| Service Life | Long Industrial Use |
| Main Usage | Multi-Level Wire Termination & Circuit Connectivity |
| Panel Benefit | Organized Wiring & Space Saving Panel Design |
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
► Double Level Wiring Design
Supports two-level conductor termination in a compact body.
► Space Saving Terminal Block
Helps improve panel space utilization.
► Reliable Electrical Performance
Supports stable current flow and secure conductor connection.
► Durable Industrial Construction
Built for long-term industrial electrical use.
► Easy DIN Rail Installation
Supports quick and secure mounting.
► Professional Panel Wiring
Improves organized electrical layout.
► Low Maintenance Operation
Designed for reliable long-term performance.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
✔ PLC Panels
✔ Industrial Control Cabinets
✔ Switchgear Assemblies
✔ Automation Systems
✔ Machine Wiring Systems
✔ Instrumentation Panels
✔ Relay Control Circuits
✔ Process Automation Panels
✔ Electrical Distribution Boards
✔ Junction Box Wiring
✔ HVAC Control Panels
✔ Industrial Electrical Installations
