Product Description

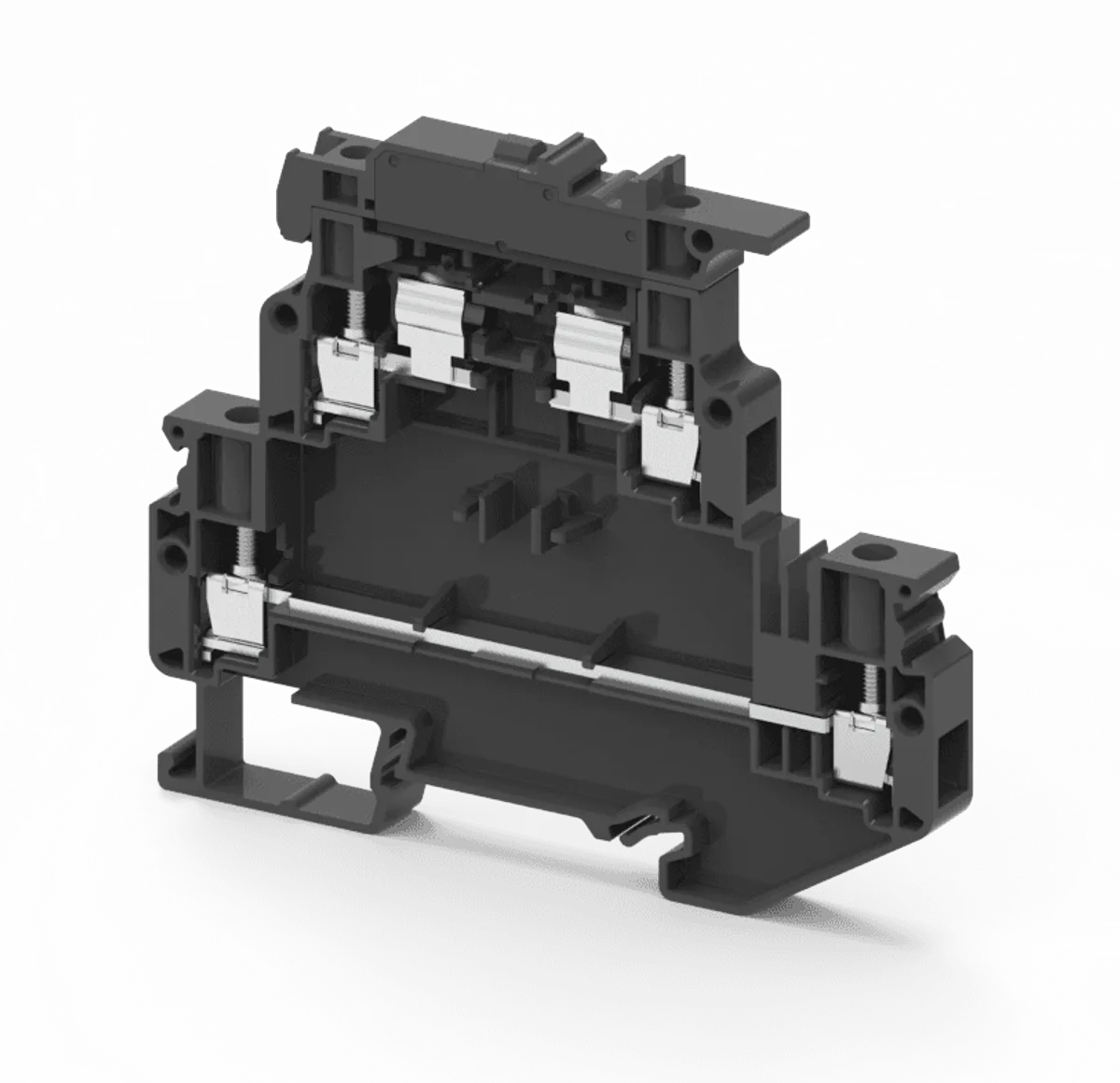

The DDDL4ULR Double Level Disconnect & Test Terminal Block is a compact and highly efficient electrical connection solution specially designed for industrial and commercial applications where safe circuit isolation, testing, and organized wiring are essential. This advanced double-level terminal block combines disconnecting function, test point access, and dual-level wiring capability in a single compact housing, making it an ideal solution for control panels, PLC panels, instrumentation systems, automation cabinets, switchgear systems, and industrial electrical installations. It is specially engineered to simplify circuit testing, improve troubleshooting efficiency, and reduce wiring complexity while saving valuable panel space.

In industrial electrical systems, maintenance and troubleshooting often require temporary circuit interruption without removing wires or disturbing the complete wiring arrangement. Traditional terminal blocks may require manual disconnection, which increases downtime and complicates testing procedures. The DDDL4ULR Double Level Disconnect Terminal Block solves this issue by providing a built-in disconnecting lever mechanism that allows quick circuit interruption for maintenance, testing, and troubleshooting applications. This feature improves technician safety, reduces maintenance time, and helps ensure faster fault identification in industrial control systems.

One of the major advantages of the DDDL4ULR Terminal Block is its double-level construction, which provides two wiring levels in a single compact terminal block body. This design helps reduce panel space requirements and improves wiring organization by allowing multiple circuit connections within one compact component. It eliminates the need for installing separate terminal blocks for related connections, creating a cleaner and more professional panel layout for industrial automation and control systems.

The DDDL4ULR is designed for 4 sq.mm conductor capacity and supports a rated voltage of 800V with a rated current of 6.3A, making it suitable for control circuits, instrumentation panels, PLC signal wiring, and industrial automation applications where circuit interruption and testing functions are required. Its dependable electrical design ensures stable current flow and secure conductor retention in industrial environments where reliable circuit monitoring and isolation are important.

A key feature of this terminal block is its disconnect & test mechanism, which allows technicians to isolate circuits quickly while also providing test point access for circuit checking and troubleshooting. This reduces maintenance downtime and allows electrical systems to be serviced in a safer and more efficient manner. This makes the DDDL4ULR especially suitable for automation panels, PLC panels, instrumentation systems, and control circuits where periodic testing and fault isolation are required.

The body of the DDDL4ULR Double Level Disconnect Terminal Block is manufactured using high-quality polyamide insulated housing, which offers excellent electrical insulation, heat resistance, impact strength, and long service life. The durable insulated housing protects conductive parts from accidental contact and improves electrical safety during operation. Polyamide construction also ensures dependable performance in industrial environments exposed to temperature changes and mechanical stress.

Its side-entry wire connection orientation allows easy conductor insertion and organized cable routing inside electrical panels. The secure screw clamp connection system provides strong conductor fastening and reliable electrical contact, reducing the risk of loose wiring, overheating, voltage drop, or electrical faults during long-term use. This improves overall electrical reliability and makes installation easier for professional panel builders and electricians.

The DDDL4ULR supports DIN 32, DIN 35, and DIN 35-15 rail mounting, allowing fast installation and compatibility with standard industrial electrical panel systems. DIN rail mounting improves component organization, reduces installation time, and makes maintenance or replacement easier when required. This mounting flexibility makes it suitable for professional electrical panel building applications.

Electrical safety is a critical requirement in industrial wiring systems, and the DDDL4ULR is designed with a rated surge voltage of 5KV and pollution degree 3, making it suitable for demanding electrical environments exposed to voltage disturbances, dust, or industrial contaminants. These safety features improve long-term electrical reliability and support safe operation in industrial applications.
