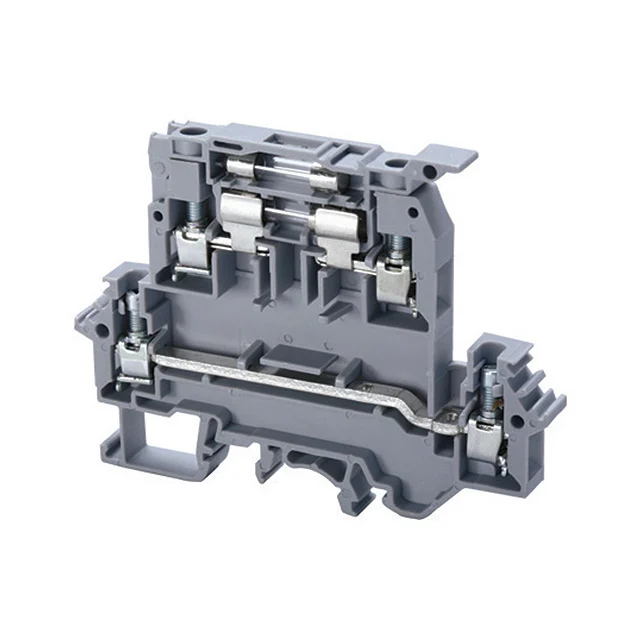

The DDFL4U0.5A fuse terminal block is engineered to provide safe and reliable electrical connectivity while protecting connected equipment from current overload conditions. Industrial environments often require compact solutions that deliver strong electrical performance and simplified maintenance, and this terminal block addresses those requirements effectively.
Its screw-clamp connection technology creates a secure mechanical and electrical bond between conductors and terminals. Unlike loose-fit electrical connections, the screw mechanism helps maintain stable contact even in environments exposed to vibration and continuous operation.
The integrated fuse compartment allows technicians to quickly replace or inspect fuses without disturbing surrounding wiring. This reduces maintenance downtime and improves operational efficiency.
Manufactured using durable Polyamide PA66 insulation material, the terminal block offers excellent thermal resistance, dimensional stability, and flame-retardant characteristics for demanding industrial applications.
The compact DIN rail mounting system allows fast installation inside electrical panels and supports organized cable routing.
Combines fuse protection and electrical distribution in a single compact component.
Protects circuits against overload and short-circuit conditions.
Reduces panel size requirements by eliminating separate fuse holders.
Provides stable and secure wire termination.
Supports quick and standardized installation.
Fuse replacement can be completed without extensive rewiring.
Constructed using durable insulation materials for long-term operation.
Ensures stable conductivity and reduced electrical losses.
| Specification | Details |
|---|---|
| Product Model | DDFL4U0.5A |
| Product Type | Double Level Fuse Terminal Block |
| Mounting Type | DIN Rail |
| Connection Method | Screw Clamp |
| Fuse Rating | 0.5 Amp |
| Fuse Type | Cartridge Fuse |
| Fuse Size | 5 × 20 mm / 5 × 25 mm |
| Number of Levels | 2 |
| Rated Voltage (IEC) | Up to 800 V |
| Rated Voltage (UL) | Up to 600 V |
| Current Capacity (Top Level) | 6.3 A |
| Current Capacity (Bottom Level) | Up to 35 A |
| Wire Range | 0.2–4 mm² |
| Wire Size | 22–10 AWG |
| Strip Length | 9.5 mm |
| Tightening Torque | 0.5 Nm |
| Housing Material | Polyamide PA66 |
| Width | 8 mm |
| Length | 88 mm |
| Color | Grey |
| Mounting Standard | DIN Rail |
Specifications may vary depending on manufacturer configuration and regional standards.
The DDFL4U0.5A is commonly installed inside automation panels to protect low-current control circuits and electrical signals.
Programmable logic controllers require dependable electrical protection. This terminal block supports safe and organized PLC wiring.
Industrial machines often contain multiple protected circuits that benefit from compact fuse terminal integration.
Used in manufacturing plants where uninterrupted electrical operation is essential.
Protects measurement and monitoring devices from current-related failures.
Supports organized power and signal routing inside industrial cabinets.
Ideal for installations requiring multiple fused connections within limited panel space.
Integrated fuse protection reduces the possibility of damage caused by overload conditions.
Technicians can inspect and replace fuses quickly.
Combining fuse and terminal functions simplifies panel assembly.
Double-level design minimizes DIN rail usage.
Durable construction supports demanding industrial environments.
Screw-clamp technology maintains consistent electrical contact.
Reduced maintenance requirements improve long-term efficiency.
For best performance:
Regular inspection of fuse condition and terminal tightness helps maintain reliable system performance.
The DDFL4U0.5A is designed for low-maintenance operation, but periodic inspection is recommended.
Maintenance steps include:
Preventive maintenance extends service life and reduces downtime.
