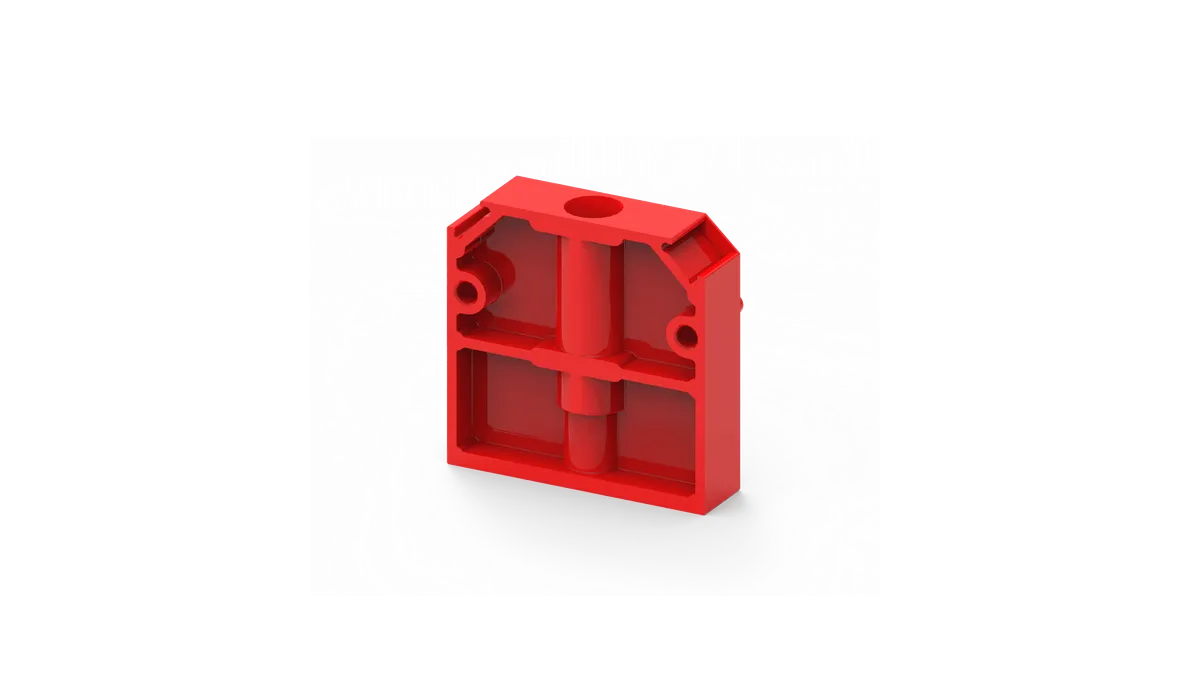

The EPCMB4R Terminal Block Connector is a high-performance industrial electrical connector designed for secure, efficient, and reliable wire termination in control panels, automation systems, switchgear assemblies, and electrical distribution applications. Manufactured using premium-quality flame-retardant thermoplastic material and high-conductivity copper alloy components, the EPCMB4R terminal block delivers superior electrical performance, excellent insulation properties, and long-term operational durability.
Designed specifically for DIN rail mounting systems, the EPCMB4R connector provides organized and maintenance-friendly wiring solutions for industrial electrical installations. Its compact modular structure helps maximize panel space utilization while ensuring strong and vibration-resistant electrical connections.
The terminal block features a secure screw-clamp wire connection mechanism that provides firm wire holding strength and stable electrical continuity. Its industrial-grade construction allows dependable performance under continuous electrical loads, mechanical stress, and demanding operating environments.
The EPCMB4R terminal block connector is widely used in industrial automation systems, machinery wiring, PLC control panels, instrumentation systems, OEM electrical assemblies, and power distribution applications requiring safe and durable electrical interconnections.
The EPCMB4R terminal block is manufactured using high-quality flame-retardant thermoplastic housing material that offers exceptional insulation properties, thermal resistance, and mechanical durability. The insulated housing enhances electrical safety by protecting against accidental contact, short circuits, and environmental stress.
Its internal conductive components are made from precision-engineered copper alloy material to ensure efficient current transfer and low electrical resistance. The rugged construction provides reliable electrical continuity and long operational service life.
The industrial-grade design makes the EPCMB4R suitable for use in demanding environments such as automation systems, switchgear panels, industrial machinery, and electrical distribution cabinets.
The EPCMB4R connector is equipped with a strong screw-clamp connection system that ensures secure wire fastening and dependable electrical performance. The screw-clamp mechanism provides stable wire retention and minimizes the possibility of loose connections caused by vibration, movement, or continuous industrial operation.
This secure connection system improves electrical safety and helps maintain reliable current flow in industrial applications. The connector also supports convenient wire insertion and removal during installation, servicing, and maintenance procedures.
Its strong fastening capability makes it highly suitable for industrial control systems and automation equipment.
The EPCMB4R terminal block connector is designed for standard DIN rail mounting systems widely used in industrial electrical panels and automation cabinets. DIN rail compatibility enables fast installation, organized wiring management, and simplified maintenance access.
Its compact modular design helps optimize available panel space while maintaining clean and professional wiring arrangements. This feature is especially beneficial in high-density electrical systems and industrial automation panels.
DIN rail mounting also simplifies future system upgrades and connector replacement operations.
The EPCMB4R connector is engineered to provide efficient electrical conductivity and reliable current transmission in industrial electrical systems. Its high-conductivity copper alloy components help minimize power loss and maintain stable electrical performance during continuous operation.
The terminal block offers excellent insulation resistance and thermal stability, ensuring safe and reliable operation under industrial working conditions. It is suitable for low and medium-voltage industrial applications requiring secure and durable electrical interconnections.
Its precision-engineered structure supports long-term operational reliability and consistent electrical performance.
The EPCMB4R terminal block connector is suitable for a wide range of industrial and commercial applications, including:
Its versatile construction and dependable performance make it suitable for multiple industrial sectors.
The EPCMB4R connector is designed for quick and efficient installation. The screw-clamp wire connection system allows easy wire termination using standard tools, reducing installation time and improving operational productivity.
The modular DIN rail mounting design simplifies maintenance, servicing, and replacement procedures. Electricians and maintenance engineers can easily access and replace the connector whenever necessary.
Its organized wiring capability also helps simplify troubleshooting and electrical system maintenance.
The EPCMB4R terminal block connector offers several important industrial advantages:
These features make the EPCMB4R a preferred terminal block solution for industrial engineers, automation professionals, electricians, and panel builders.
| Specification | Details |
|---|---|
| Model | EPCMB4R |
| Product Type | Terminal Block Connector |
| Mounting Type | DIN Rail Mount |
| Connection Type | Screw Clamp Connection |
| Housing Material | Flame Retardant Thermoplastic |
| Conductor Material | High Conductivity Copper Alloy |
| Rated Voltage | Up to 800V |
| Rated Current | Up to 32A |
| Wire Size Capacity | 0.2 – 4 sq.mm |
| Color | Red |
| Operating Temperature | -20°C to +85°C |
| Insulation Resistance | High |
| Mechanical Strength | Industrial Grade |
| Application | Electrical & Industrial Wiring |
| Usage | Control Panels & Automation Systems |
| Standard Compatibility | IEC Standard Compatible |
