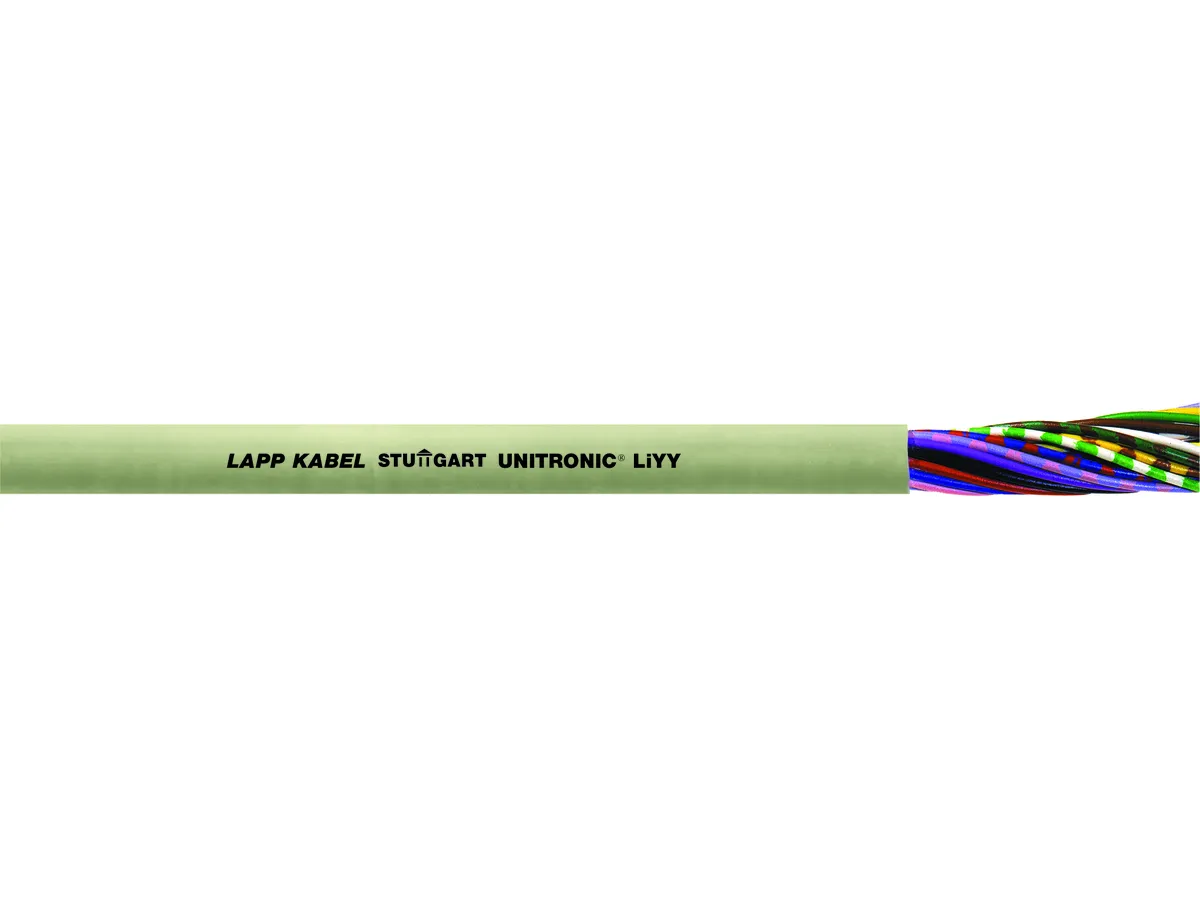

UNITRONIC® LiYY 3x0.25 is a reliable unscreened data transmission cable designed for signal and control applications in industrial environments. The cable contains 3 cores with 0.25 mm² conductors, ensuring stable communication between electronic devices and control systems.
The fine-stranded copper conductors provide excellent flexibility and conductivity, while the PVC insulation and grey outer sheath (RAL 7032) ensure durability and long service life. UNITRONIC® LiYY cables are widely used in control cabinets, instrumentation systems, and electronic equipment where reliable low-frequency signal transmission is required.
Brand: LAPP
Product Name: UNITRONIC® LiYY
Cable Type: Unscreened Data Transmission Cable
Configuration: 3 x 0.25 mm²
Number of Cores: 3
Conductor Material: Fine Stranded Bare Copper
Core Insulation: PVC
Shielding: No Shield (Unscreened)
Outer Sheath Material: PVC
Outer Sheath Colour: Grey (RAL 7032)
Nominal Voltage: 250 V
Temperature Range
Fixed Installation: -40°C to +80°C
Flexible Installation: -5°C to +70°C
Minimum Bending Radius
Fixed Installation: 6 × Cable Diameter
Flexible Installation: 10 × Cable Diameter
