Product Description

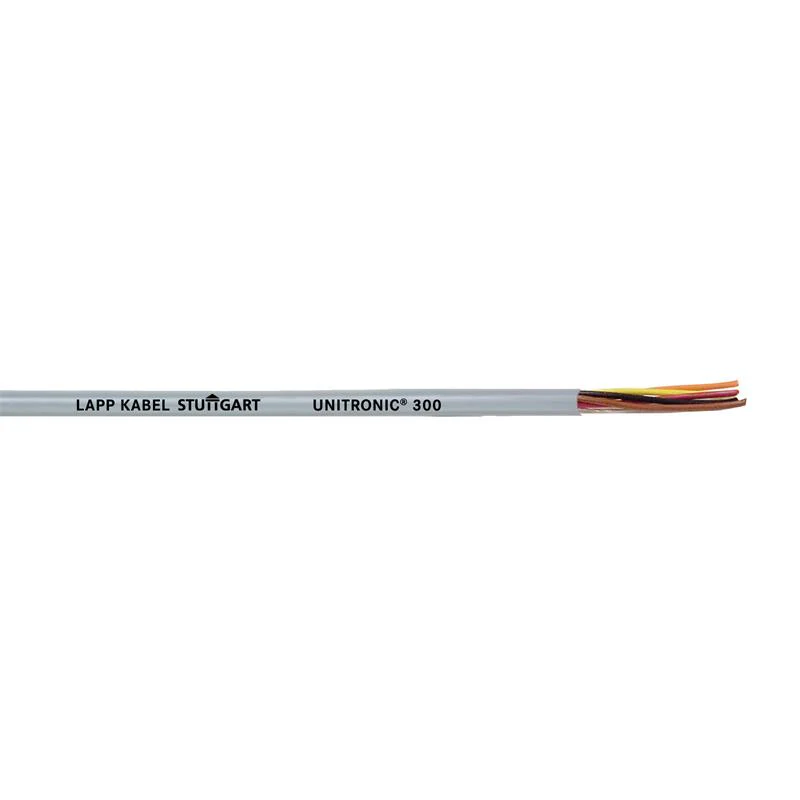

UNITRONIC® 300 S 20/6C is a high-performance shielded control and data cable designed for complex industrial applications requiring multiple signal transmission paths. This cable features 20 cores grouped in 6 circuits (pairs/triples configuration depending on design), ensuring efficient and organized signal flow in control systems.
Equipped with tinned copper braid shielding, the cable offers excellent protection against electromagnetic interference (EMI), making it highly suitable for environments with heavy electrical noise. Its robust construction and flexible design allow easy installation in control cabinets, automation systems, and machinery wiring.
🔹 Product Overview
The UNITRONIC® 300 S 20/6C cable is engineered for reliable data and control signal transmission across industrial systems. It is widely used in applications where multiple signals must be transmitted simultaneously with minimal interference.
With high-quality PVC insulation and a durable outer sheath, this cable ensures long service life, mechanical strength, and consistent performance even under demanding conditions.
🔹 Key Features
-
Shielded Construction (S): Tinned copper braid for superior EMI protection
-
Multi-Core Design (20/6C): Supports multiple signal circuits efficiently
-
Reliable Signal Transmission: Stable and interference-free performance
-
Flexible Cable Design: Easy to install in tight or complex layouts
-
Durable PVC Sheath: Resistant to abrasion, oil, and mechanical stress
-
Industrial Grade Quality: Suitable for demanding environments
🔹 Technical Specifications
-
Product Name: UNITRONIC® 300 S 20/6C
-
Cable Type: Shielded control cable
-
Core Configuration: 20 cores / 6 circuits
-
Conductor Material: Fine-stranded bare copper
-
Insulation Material: PVC
-
Shielding: Tinned copper braid (overall)
-
Outer Sheath: PVC (Grey)
-
Voltage Rating: 300/500 V
-
Temperature Range:
-
Fixed installation: -40°C to +80°C
-
Flexible use: -5°C to +70°C
-
Application Type: Control and signal transmission
🔹 Applications
-
Industrial automation systems
-
Control panels and switchgear
-
Machine tool wiring
-
Instrumentation and monitoring systems
-
Multi-signal transmission systems
-
EMI-sensitive industrial environments
Technical Specifications
Product Name: UNITRONIC® 300 S 20/6C
Brand: LAPP
Cable Type: Shielded Data Transmission Cable
Conductor Size: 20 AWG
Number of Cores: 6 Cores
Conductor Material: Bare Copper
Shielding: Overall Foil Shield with Tinned Copper Braid
Insulation Material: PVC
Outer Sheath: PVC
Voltage Rating: 300 V
Temperature Range: -25°C to +105°C
Application: Industrial automation, control systems, signal transmission, instrumentation and machine wiring.
