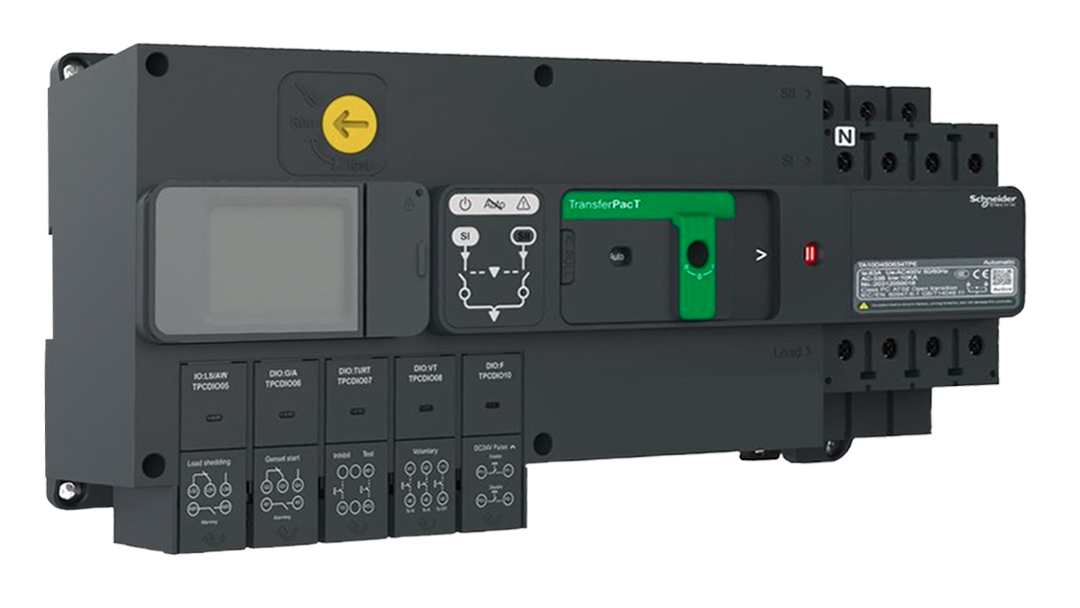

Schneider TransferPacT Active Automatic TA10D2L0323TPE is a compact automatic transfer switch (ATS) designed for reliable switching between two power sources such as mains and generator supply in low-current applications.
It is part of Schneider Electric’s TransferPacT Active series, which is known for intelligent monitoring, fast switching, and integrated control features. This model is specifically built for 32A, 2-pole systems, making it suitable for single-phase or light commercial applications.
The device continuously monitors voltage and frequency conditions of both sources and automatically transfers the load when abnormal conditions are detected. It also restores supply back to the main source once stable power is available.
With its built-in LCD interface, users can view system status, alarms, and operating conditions in real time. It supports both automatic and manual override operation, making it flexible for maintenance and emergency control.
🔹 Key Features
• Schneider Electric TransferPacT Active series
• Model: TA10D2L0323TPE
• 32A rated current
• 2-Pole configuration (single-phase applications)
• Automatic mains–generator transfer system
• Integrated LCD display for monitoring & diagnostics
• Compact frame design (100A frame size flexibility)
• Real-time voltage and frequency monitoring
• Manual override function available
• High reliability for critical small-load systems
• IEC 60947-6-1 compliant design
| Parameter | Specification |
|---|---|
| Product Type | Automatic Transfer Switch (ATS) |
| Model Number | TA10D2L0323TPE |
| Brand | Schneider Electric |
| Poles | 2 Pole |
| Rated Current | 32A |
| System Type | Single Phase / Phase–Neutral |
| Frame Size | 100A frame |
| Control | Automatic + Manual override |
| Display | LCD interface |
| Standard | IEC 60947-6-1 |
| Application | Mains–Generator transfer |
