TransferPacT Active Automatic - TA10D2L0403TPE

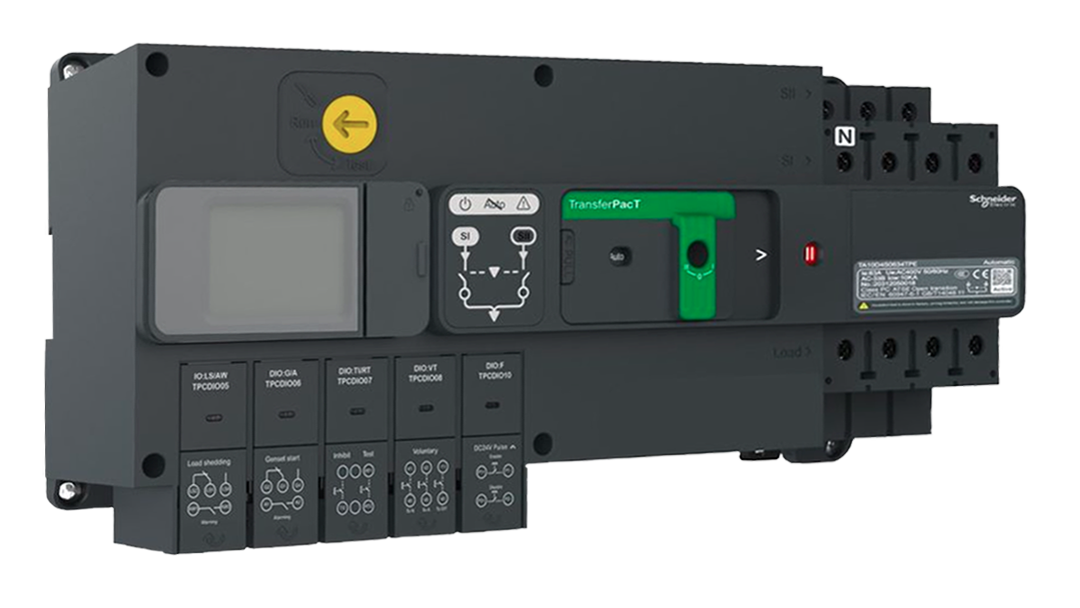

🔹 Schneider Electric TransferPacT Active Automatic – TA10D2L0403TPE (40A, 2 Pole ATS)

🔹 Product Description

The Schneider TransferPacT Active Automatic TA10D2L0403TPE is a compact and intelligent Automatic Transfer Switch (ATS) designed for reliable switching between two power sources such as mains and generator in low-current single-phase systems.

Part of Schneider Electric’s advanced TransferPacT Active series, this device ensures continuous power availability by automatically detecting supply failure and transferring the load to the backup source. Once the main supply stabilizes, it safely switches the load back.

This model is rated for 40A, 2-pole operation, making it ideal for residential, small commercial, and light industrial applications where uninterrupted power is required for critical loads.

It includes built-in monitoring features, an intuitive interface, and automatic/manual control modes for flexible operation and maintenance.

🔹 Key Features

• Schneider Electric TransferPacT Active series
• Model: TA10D2L0403TPE
• 40A rated current
• 2-Pole configuration (single-phase systems)
• Automatic mains–generator transfer function
• Integrated digital display for status monitoring
• Compact design for easy panel installation
• Real-time voltage and frequency monitoring
• Manual override for maintenance control
• High reliability and fast switching performance
• IEC 60947-6-1 compliant ATS system
