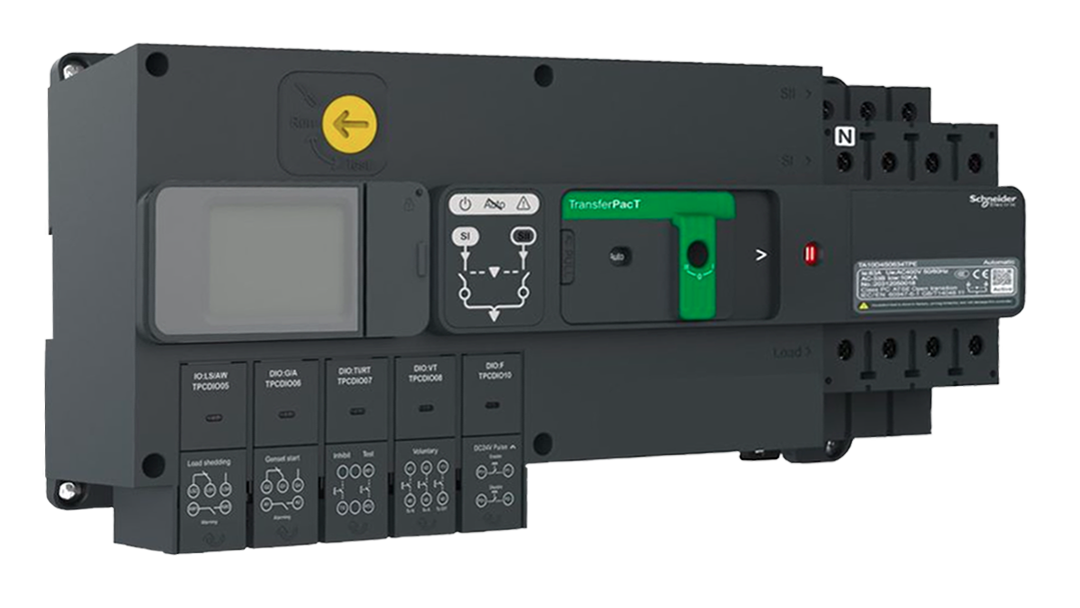

🔹 Schneider Electric TransferPacT Active Automatic – TA10D4L0404TPE (40A, 4 Pole ATS)
The Schneider TransferPacT Active Automatic TA10D4L0404TPE is an advanced Automatic Transfer Switch (ATS) designed for seamless switching between main utility supply and generator/alternate source in single-phase or 3-phase + neutral systems.
It is part of Schneider Electric’s intelligent TransferPacT Active series, which provides real-time monitoring, fast switching, and reliable power transfer for critical loads.
This model is rated at 40A with a 4-pole configuration, making it suitable for systems requiring neutral switching along with phase switching—commonly used in sensitive commercial and industrial applications.
The device continuously monitors voltage and frequency on both sources and automatically transfers the load during power failure. Once the main supply stabilizes, it safely returns the load back to mains.
It also includes a built-in LCD display, enabling real-time status monitoring, alarms, configuration settings, and manual override control.
• Schneider Electric TransferPacT Active series
• Model: TA10D4L0404TPE
• 40A rated current
• 4-Pole configuration (with neutral switching)
• Automatic mains–generator transfer system
• Integrated LCD display for monitoring & diagnostics
• Real-time voltage & frequency monitoring
• Manual override mode available
• Compact 100A frame size design
• High switching reliability and safety
• IEC 60947-6-1 compliant ATS
| Parameter | Specification |
|---|---|
| Product Type | Automatic Transfer Switch (ATS) |
| Model Number | TA10D4L0404TPE |
| Brand | Schneider Electric |
| Poles | 4 Pole |
| Rated Current | 40A |
| System Type | Single Phase / Three Phase + Neutral |
| Frame Size | 100A frame |
| Operation Mode | Automatic + Manual |
| Display | LCD interface |
| Standard | IEC 60947-6-1 |
| Application | Mains–Generator changeover |
