The Bhartia Boxes – BIL-50560 is a premium-grade industrial double door electrical enclosure designed for secure housing and protection of electrical panels, automation systems, industrial controls, power distribution equipment, and process management systems. Manufactured using high-quality CRCA sheet steel and advanced industrial fabrication standards, this enclosure delivers exceptional durability, reliable protection, and long-lasting operational performance in demanding industrial environments.

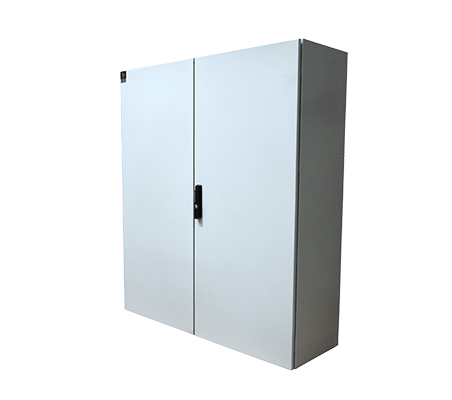

The BIL-50560 is a double door wall-mounted enclosure with dimensions 1000x1400x300 mm, making it an ideal solution for large electrical installations requiring spacious internal wiring arrangements and organized component mounting. The enclosure is engineered to protect sensitive electrical systems from dust, moisture, accidental contact, and industrial environmental conditions while ensuring safe and efficient operation.
Designed for industrial reliability, the enclosure body and front doors are fabricated using 1.6 mm CRCA sheet steel, providing excellent structural strength and durability. The gland plate is manufactured using 2.0 mm CRCA steel, while the mounting plate is made from 2.0 mm GPSP steel for superior load-bearing capacity and stable component installation.
The enclosure features a corrosion-resistant powder-coated finish with tricationic zinc phosphating in RAL 7035 color, ensuring superior resistance against rust, industrial wear, and harsh operating conditions. This durable surface finish enhances the enclosure’s lifespan and maintains its professional industrial appearance over extended use.
The BIL-50560 enclosure includes hinged double doors fitted with polyurethane foam gasket sealing, which improves ingress protection and helps maintain reliable internal equipment safety. The enclosure is rated with IP55 protection as per IEC 60529 standards, offering dependable resistance against dust and water ingress in industrial applications. It also provides IK10 mechanical impact resistance, ensuring strong protection against external mechanical impact.
Its spacious internal layout allows organized installation of electrical components such as PLCs, relays, drives, contactors, terminals, monitoring systems, and industrial automation devices. The double door design improves accessibility during maintenance and installation procedures while supporting efficient cable routing and structured wiring management.
The enclosure supports professional wall-mounted installation and is widely used in manufacturing industries, automation plants, electrical infrastructure projects, process industries, telecom systems, and power distribution applications. Its robust construction and industrial-grade protective features make it a preferred choice for electrical contractors, automation engineers, panel builders, and industrial maintenance professionals.
The Bhartia Boxes BIL-50560 enclosure combines durability, operational safety, organized installation, and industrial-grade reliability, making it a dependable enclosure solution for modern industrial electrical systems and automation projects.
| Specification | Details |
|---|---|
| Product Name | Bhartia Boxes |
| Model Number | BIL-50560 |
| Product Type | Double Door Industrial Enclosure |
| Enclosure Size | 1000x1400x300 mm |
| Door Type | Double Door |
| Number of Doors | 2 |
| Material | CRCA Sheet Steel |
| Body Thickness | 1.6 mm |
| Front Door Thickness | 1.6 mm |
| Gland Plate Thickness | 2.0 mm |
| Mounting Plate Thickness | 2.0 mm GPSP Steel |
| Surface Finish | Powder Coated with Zn Phosphating |
| Color | RAL 7035 |
| Protection Class | IP55 |
| Impact Resistance | IK10 |
| Door Opening Angle | 120° |
| Lock Type | Triangular Insert Cam Lock |
| Mounting Type | Wall Mount |
| Application | Industrial Electrical Systems |
| Weight | Approx. 79 Kg |
| Maintenance | Low Maintenance |
Technical specifications sourced from BCH product catalogues and industrial product listings.
Ideal for housing industrial electrical control systems and power distribution equipment.
Suitable for PLC panels, industrial drives, automation controls, and process control applications.
Provides reliable protection for industrial power management and distribution installations.
Widely used in factories and industrial plants for automation and machine control systems.
Suitable for communication infrastructure and industrial networking equipment.
Used in engineering plants, process automation systems, and industrial monitoring applications.
Supports installation of machine control systems, relays, terminals, and automation devices.
Suitable for large-scale commercial electrical infrastructure and industrial installations.
Manufactured using premium CRCA steel for reliable industrial performance and long service life.
Provides organized wiring management and sufficient mounting space for large electrical systems.
Protects sensitive electrical components from dust, moisture, and industrial environmental conditions.
Powder-coated surface improves durability and resistance against rust and industrial wear.
Double door configuration allows easier maintenance access and efficient installation management.
IP55 ingress protection and IK10 impact resistance ensure dependable industrial safety.
Supports convenient wall mounting and simplified servicing access.
Designed for continuous industrial operation with minimal maintenance requirements.
Industrial electrical enclosures are essential for maintaining safe, organized, and reliable electrical operations. Proper enclosure systems help protect internal electrical equipment from dust, accidental contact, moisture, and environmental exposure while improving operational safety and system reliability.
The Bhartia Boxes BIL-50560 enclosure supports organized cable management, structured equipment installation, and improved maintenance accessibility. Its strong construction and spacious internal design help reduce operational downtime and enhance electrical system performance in industrial environments.
Using high-quality industrial enclosure systems also improves installation standards, workplace safety, and long-term equipment reliability across automation plants, manufacturing facilities, electrical infrastructure projects, and power distribution systems.
