SENTRON 3VA MCCB, Thermal Magnetic Trip Unit - 3VA1125-4EE32-0AA0

Product Description

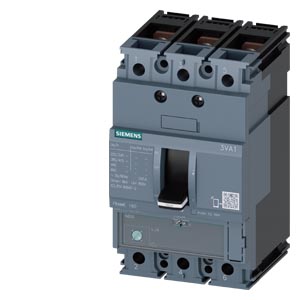

Siemens SENTRON 3VA MCCB with Thermal Magnetic Trip Unit – 3VA1125-4EE32-0AA0

The Siemens 3VA1125-4EE32-0AA0 is a Molded Case Circuit Breaker (MCCB) from the SENTRON 3VA1 series, designed to provide reliable protection of low-voltage electrical systems against overload and short-circuit faults. This 4-pole MCCB is equipped with a Thermal Magnetic Trip Unit (TM220 / ATFM type), offering adjustable overload protection and fixed short-circuit protection, making it suitable for industrial and commercial power distribution applications.

It is widely used in LT panels, MCC/PCC systems, feeder protection, and main distribution boards, where high breaking capacity and dependable system coordination are required.

Key Features:

• Siemens SENTRON 3VA1 series MCCB

• Part Number: 3VA1125-4EE32-0AA0

• 4-pole molded case circuit breaker

• Thermal Magnetic Trip Unit (TM220 / ATFM type)

• Rated current: 25A

• IEC Frame Size 160

• Adjustable overload protection (Ir approx. 18–25A)

• Fixed short-circuit protection (Ii approx. 10 × In)

• High breaking capacity: 25kA at 415V AC (class N)

• Rated operational voltage up to 690V AC

• Compact industrial-grade MCCB design

• Reliable protection against overload and short-circuit faults

• Suitable for selective coordination in LV systems

• Screw / lug terminal connection (variant dependent)

• High electrical and mechanical endurance

• Compliant with IEC 60947-2 standards
