SENTRON 3VA MCCB, Thermal Magnetic Trip Unit - 3VA1132-5ED32-0AA0

Product Description

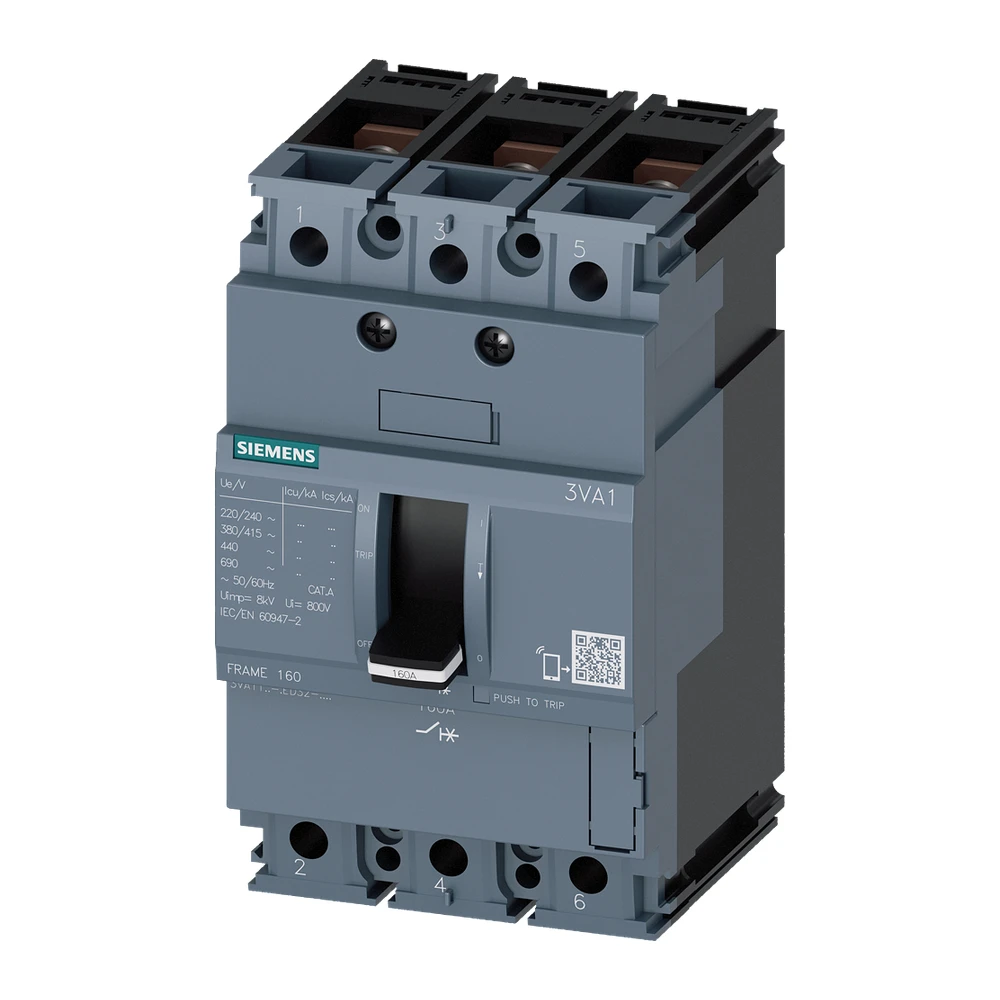

Siemens SENTRON 3VA MCCB with Thermal Magnetic Trip Unit – 3VA1132-5ED32-0AA0

The Siemens 3VA1132-5ED32-0AA0 is a Molded Case Circuit Breaker (MCCB) from the SENTRON 3VA1 series, engineered for reliable protection of low-voltage power distribution systems against overload and short-circuit faults. This 3-pole MCCB uses a Thermal Magnetic Trip Unit (TM/FTFM type), providing fixed overload and fixed short-circuit protection, making it suitable for standard industrial feeder and distribution applications.

It is widely used in LT panels, MCC/PCC systems, industrial feeders, HVAC systems, and commercial distribution boards, where high breaking capacity and dependable fault isolation are required.

Key Features:

• Siemens SENTRON 3VA1 series MCCB
• Part Number: 3VA1132-5ED32-0AA0
• 3-pole molded case circuit breaker
• Thermal Magnetic Trip Unit (TM210 / FTFM type)
• Rated current: 32A
• Frame size: IEC Frame 160
• Fixed overload protection (Ir = 32A)
• Fixed short-circuit protection (Ii ≈ 10 × In)
• High breaking capacity: 55kA at 415V AC
• Rated operational voltage up to 690V AC
• Compact and robust industrial design
• High mechanical and electrical endurance
• Suitable for feeder and motor protection coordination
• Screw / lug terminal connection
• Complies with IEC 60947-2 standards
