SENTRON 3VA MCCB, Thermal Magnetic Trip Unit - 3VA1132-5GE42-0AA0

Product Description

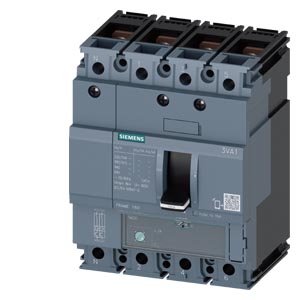

Siemens SENTRON 3VA MCCB, Thermal Magnetic Trip Unit – 3VA1132-5GE42-0AA0

The Siemens 3VA1132-5GE42-0AA0 is a SENTRON 3VA1 series Molded Case Circuit Breaker (MCCB) designed for reliable protection of low-voltage distribution systems against overload and short-circuit faults. This 4-pole MCCB is equipped with a Thermal Magnetic Trip Unit (TM220 / ATFM type), providing adjustable overload protection and fixed instantaneous short-circuit protection, making it suitable for demanding industrial and commercial applications.

It is widely used in LT panels, MCC/PCC systems, feeder circuits, and industrial distribution boards, especially where high breaking capacity and neutral protection are required.

Key Features:

• Siemens SENTRON 3VA1 series MCCB
• Part Number: 3VA1132-5GE42-0AA0
• 4-pole molded case circuit breaker
• Thermal Magnetic Trip Unit (TM220 / ATFM)
• Rated current: 32A
• Frame size: IEC Frame 160
• Adjustable overload protection: Ir ≈ 22–32A
• Fixed short-circuit protection: Ii ≈ 10 × In
• High breaking capacity: 55kA at 415V AC
• Neutral conductor protection (up to 100%)
• Rated operational voltage up to 690V AC
• Compact and robust industrial design
• Suitable for feeder and distribution protection
• Screw / lug terminal connection (variant dependent)
• Complies with IEC 60947-2 standards
