SENTRON 3VA MCCB, Thermal Magnetic Trip Unit - 3VA1196-5ED32-0AA0

Product Description

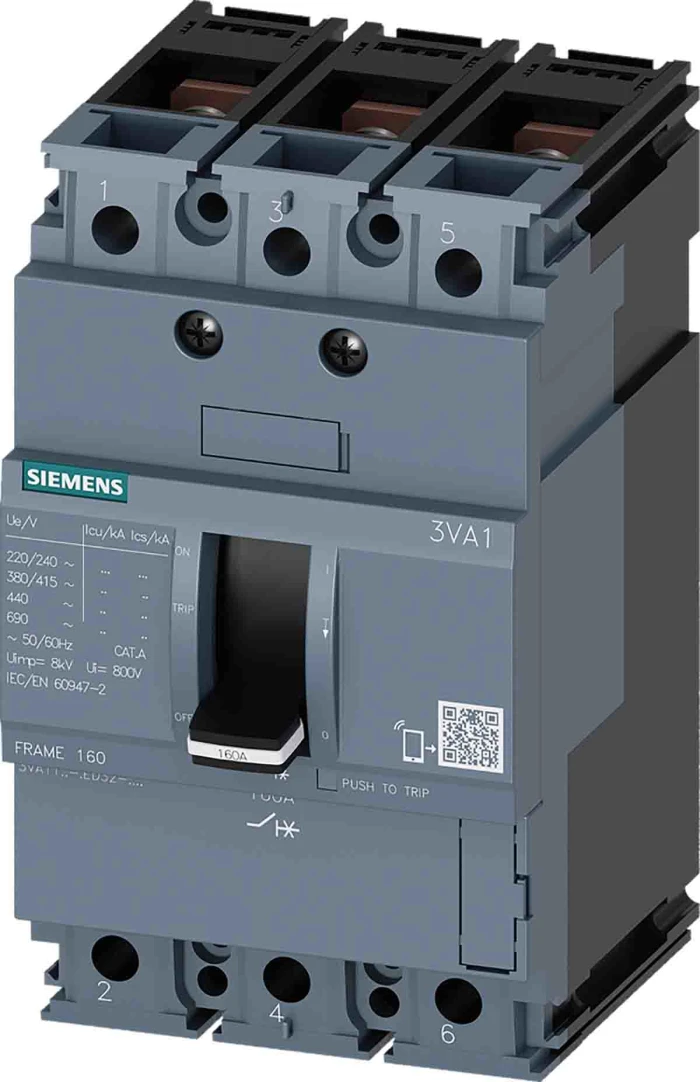

Siemens SENTRON 3VA MCCB, Thermal Magnetic Trip Unit – 3VA1196-5ED32-0AA0

The Siemens 3VA1196-5ED32-0AA0 is a SENTRON 3VA1 series Molded Case Circuit Breaker (MCCB) designed for reliable protection of low-voltage electrical distribution systems against overload and short-circuit faults. This model belongs to the IEC frame size 160 series and is commonly used in industrial feeder and starter protection applications where high breaking capacity and compact design are required.

It is widely used in LT panels, MCC/PCC systems, motor feeder circuits, and industrial distribution boards, ensuring safe and stable operation of electrical installations.

Key Features:

• Siemens SENTRON 3VA1 series MCCB

• Part Number: 3VA1196-5ED32-0AA0

• 3-pole molded case circuit breaker

• Thermal Magnetic Trip Unit (TM210 / FTFM type)

• Rated current: 16A

• IEC frame size: 160

• Overload protection: fixed at Ir = 16A

• Short-circuit protection: fixed magnetic (Ii ≈ 20 × In)

• High breaking capacity: 55kA at 415V AC

• Rated operational voltage up to 690V AC

• Compact industrial-grade construction

• Screw terminal connection

• Fixed mounting design

• High electrical & mechanical endurance

• Suitable for feeder and starter protection

• Complies with IEC 60947-2 standards
