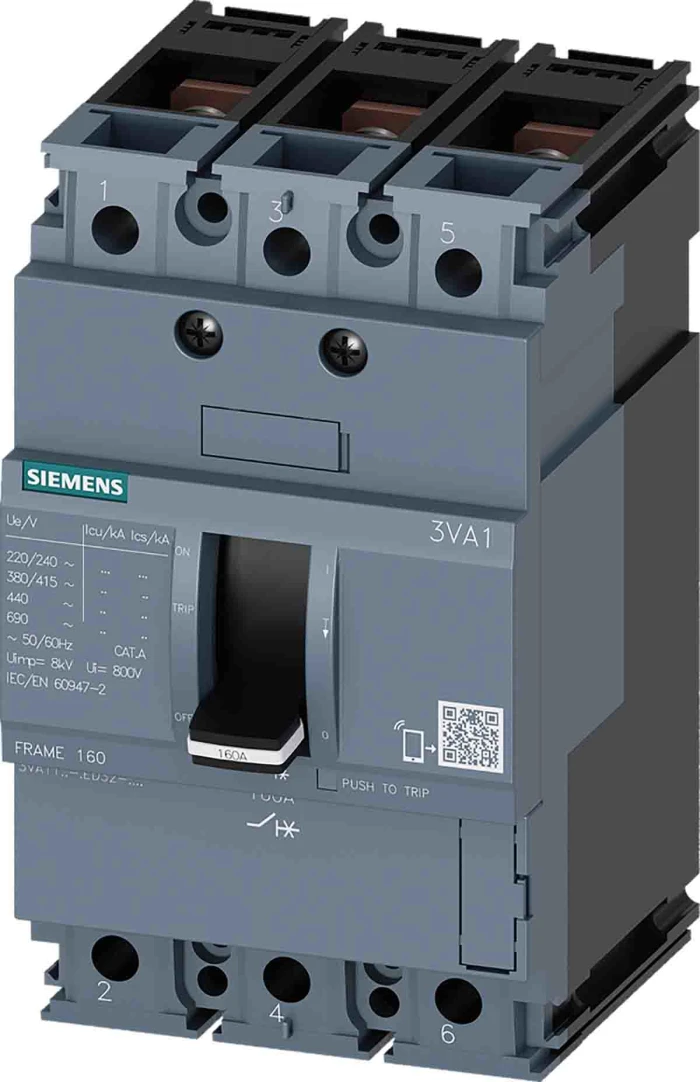

Siemens SENTRON 3VA MCCB, Thermal Magnetic Trip Unit – 3VA1196-5GE42-0AA0
The Siemens 3VA1196-5GE42-0AA0 is a SENTRON 3VA1 series Molded Case Circuit Breaker (MCCB) designed for starter and feeder protection in low-voltage electrical distribution systems. This 4-pole MCCB uses a Thermal Magnetic Trip Unit (TM210 / ATFM type) and is widely used in industrial power distribution, MCC panels, and LT systems where high breaking capacity and compact design are required.
It belongs to the IEC frame size 160 class, offering strong short-circuit performance and reliable overload protection for modern electrical networks.
Key Features:
• Siemens SENTRON 3VA1 series MCCB
• Part Number: 3VA1196-5GE42-0AA0
• 4-pole molded case circuit breaker
• Thermal Magnetic Trip Unit (TM210 / ATFM type)
• Rated current: 16A
• Frame size: 160 (3VA11 series)
• Adjustable overload protection (Ir: approx. 11–16A)
• Fixed magnetic short-circuit protection (Ii ≈ 20 × In)
• High breaking capacity: 55kA at 415V AC
• Rated operational voltage up to 690V AC
• Compact industrial-grade design
• Screw terminal connection
• Fixed mounting type
• Suitable for feeder and starter protection
• Complies with IEC 60947-2 standards
|
Parameter |
Specification |
|
Product Series |
Siemens SENTRON 3VA1 |
|
Part Number |
3VA1196-5GE42-0AA0 |
|
Product Type |
MCCB (Molded Case Circuit Breaker) |
|
Number of Poles |
4 Pole |
|
Rated Current (In) |
16A |
|
Trip Unit Type |
Thermal Magnetic (TM210 / ATFM) |
|
Overload Protection |
Adjustable (11–16A) |
|
Short Circuit Protection |
Fixed Magnetic |
|
Breaking Capacity (Icu) |
55kA at 415V AC |
|
Rated Operational Voltage |
Up to 690V AC |
|
Frame Size |
IEC Frame 160 |
|
Mounting Type |
Fixed mounting |
|
Connection Type |
Screw terminal |
|
Application |
LT panels, MCC/PCC systems, feeder & motor protection |
