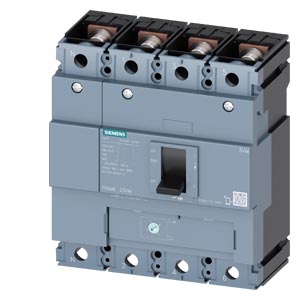

Siemens SENTRON 3VA MCCB – Thermal Magnetic Trip Unit –
3VA1220-5GE42-0AA0
The Siemens 3VA1220-5GE42-0AA0 is a SENTRON 3VA1
series molded case circuit breaker (MCCB) designed for dependable
protection of low-voltage electrical distribution systems against overload
and short-circuit faults. It is widely used in industrial switchboards,
MCC/PCC panels, infrastructure projects, and commercial electrical distribution
systems where high fault interruption capability and reliable operation are
required.
This model is equipped with a thermal magnetic trip unit
(TM250 / ATFM – Adjustable Thermal Fixed Magnetic) that provides adjustable
overload protection and fixed instantaneous short-circuit protection. The
breaker belongs to the 3VA12 frame series and features a 4-pole
configuration, making it suitable for applications requiring phase and
neutral protection. (rs-online.com)
With a rated current of 200A and a breaking
capacity of 55kA at 415V AC, this MCCB is suitable for demanding industrial
and commercial distribution applications with high prospective fault levels.
(industrybuying.com)
Key Features
|
Parameter |
Specification |
|
Product Model |
3VA1220-5GE42-0AA0 |
|
Brand |
Siemens |
|
Series |
SENTRON 3VA1 |
|
Type |
MCCB (Molded Case Circuit Breaker) |
|
Trip Unit |
TM250 (ATFM) |
|
Rated Current |
200 A |
|
Number of Poles |
4 Pole |
|
Breaking Capacity (Icu) |
55 kA @ 415 V AC |
|
Rated Operational Voltage |
Up to 690 V AC |
|
Rated Insulation Voltage |
800 V |
|
Protection Type |
Adjustable overload + short-circuit protection |
|
Mounting Type |
Fixed mounting |
|
Connection Type |
Front terminal connection |
|
Frequency |
50/60 Hz |
|
Standards |
IEC 60947-2 |
