Siemens SENTRON 3VA MCCB – Thermal Magnetic Trip Unit –
3VA1220-5MH32-0AA0

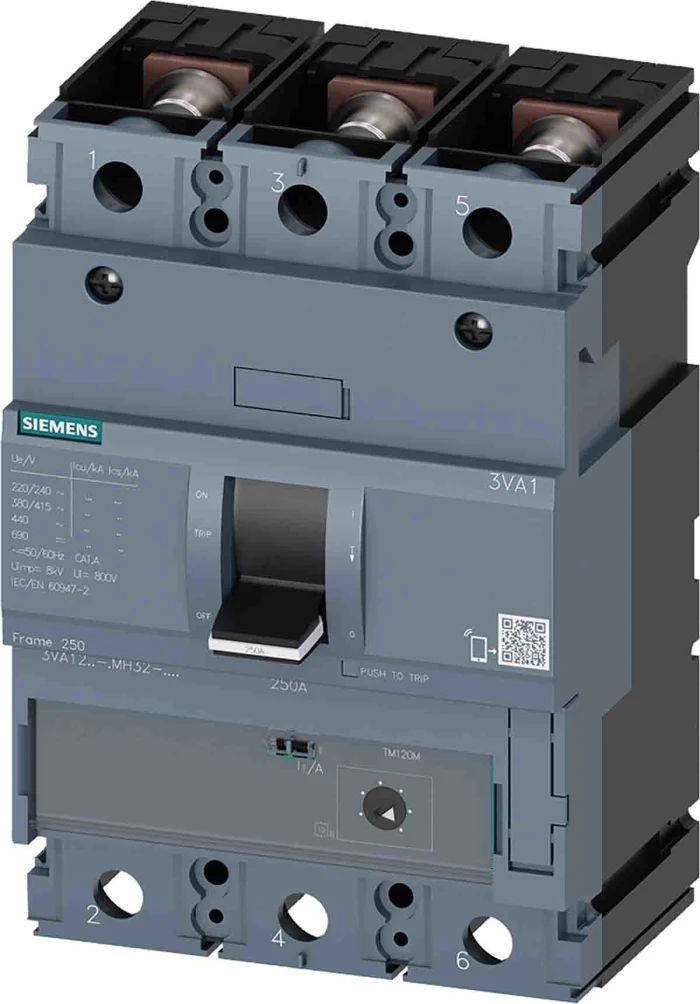

The Siemens 3VA1220-5MH32-0AA0 is a SENTRON 3VA1
series molded case circuit breaker (MCCB) designed for reliable protection
of low-voltage electrical distribution systems against overload and
short-circuit faults. It is commonly used in industrial switchboards,
PCC/MCC panels, infrastructure projects, and commercial power distribution
systems where dependable fault protection and high interruption capability
are required.
This MCCB is equipped with a thermal magnetic trip unit
(TM240 / ATFM – Adjustable Thermal Fixed Magnetic) that provides adjustable
overload protection and fixed magnetic short-circuit protection. The breaker
belongs to the 3VA12 frame series and features a 3-pole configuration,
making it suitable for three-phase feeder and incomer applications.
With a rated current of 200A and a high breaking
capacity, the breaker ensures safe interruption of fault currents in
demanding industrial environments while supporting efficient power distribution
and protection coordination.
Key Features
|
Parameter |
Specification |
|
Product Model |
3VA1220-5MH32-0AA0 |
|
Brand |
Siemens |
|
Series |
SENTRON 3VA1 |
|
Type |
MCCB (Molded Case Circuit Breaker) |
|
Trip Unit |
TM240 (ATFM) |
|
Rated Current |
200 A |
|
Number of Poles |
3 Pole |
|
Protection Type |
Adjustable overload + short-circuit protection |
|
Short-Circuit Protection |
Fixed magnetic trip |
|
Frame Size |
3VA12 |
|
Rated Operational Voltage |
Up to 690 V AC |
|
Mounting Type |
Fixed mounting |
|
Connection Type |
Front terminal connection |
|
Frequency |
50/60 Hz |
|
Standards |
IEC 60947-2 |
