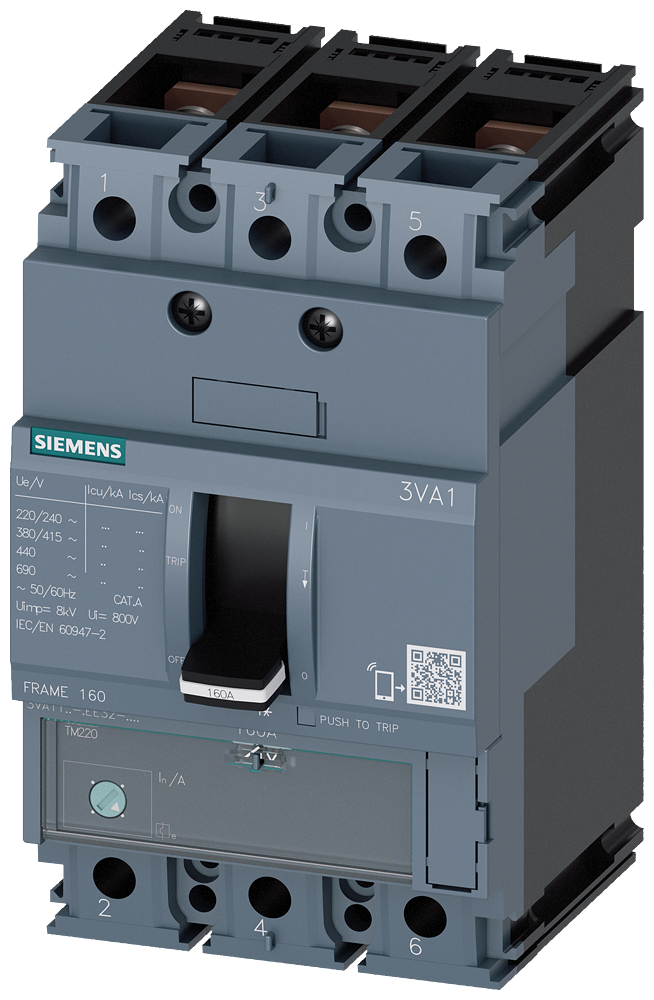

Siemens SENTRON 3VA MCCB – Thermal Magnetic Trip Unit –
3VA1332-4EE32-0AA0
The Siemens 3VA1332-4EE32-0AA0 is a SENTRON 3VA1 series
molded case circuit breaker (MCCB) engineered for dependable protection of low-voltage
electrical distribution systems against overload and short-circuit faults.
It is widely used in industrial switchboards, PCC/MCC panels, OEM machinery,
infrastructure projects, and commercial electrical systems where
high-performance protection and operational reliability are essential.
This MCCB belongs to the 3VA13 frame series and is
equipped with a thermal magnetic trip unit (TM220 / ATFM – Adjustable
Thermal Fixed Magnetic) that provides adjustable overload protection
together with fixed magnetic short-circuit protection for improved system
coordination and reliable fault interruption. The breaker features a 3-pole
configuration suitable for industrial three-phase power distribution
applications.
With a rated current of 320A and a breaking
capacity of 36kA at 415V AC, this MCCB is ideal for medium-to-heavy
industrial electrical applications requiring dependable circuit protection.
Key Features
|
Parameter |
Specification |
|
Product Model |
3VA1332-4EE32-0AA0 |
|
Brand |
Siemens |
|
Series |
SENTRON 3VA1 |
|
Type |
MCCB (Molded Case Circuit Breaker) |
|
Trip Unit |
TM220 / ATFM |
|
Rated Current |
320 A |
|
Number of Poles |
3 Pole |
|
Breaking Capacity (Icu) |
36 kA @ 415 V AC |
|
Ics |
100% of Icu |
|
Protection Type |
Adjustable overload + short-circuit protection |
|
Overload Protection |
Adjustable thermal trip |
|
Short-Circuit Protection |
Fixed magnetic trip |
|
Frame Size |
3VA13 IEC Frame 400 |
|
Rated Operational Voltage |
Up to 690 V AC |
|
Mounting Type |
Fixed mounting |
|
Connection Type |
Lug terminal / nut keeper |
|
Frequency |
50/60 Hz |
|
Standards |
IEC 60947-2 |
