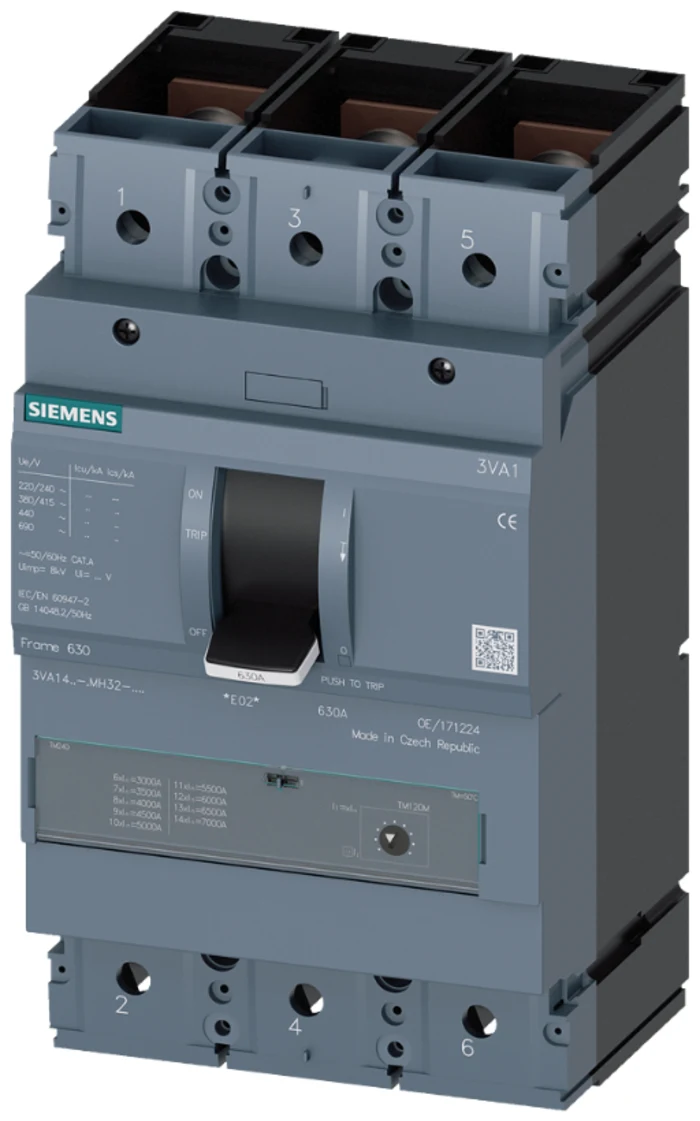

Siemens SENTRON 3VA MCCB – Thermal Magnetic Trip Unit –
3VA1440-5MH32-0AA0
The Siemens 3VA1440-5MH32-0AA0 is a SENTRON 3VA1
series molded case circuit breaker (MCCB) designed for reliable protection
of low-voltage power distribution systems against overload and
short-circuit faults. It is widely used in industrial switchboards,
PCC/MCC panels, OEM machinery, infrastructure projects, and commercial
electrical installations where high current capacity and dependable
fault interruption are required.
This model belongs to the 3VA14 frame series (up to 630A
class) and is equipped with a thermal magnetic trip unit (TM120 / ATFM
type) providing fixed or simplified overload protection and fixed
short-circuit protection, ensuring stable and cost-effective protection for
distribution networks.
With a rated current of 400A and a breaking
capacity of 55kA at 415V AC, it is suitable for medium to heavy-duty
industrial applications requiring strong fault-level handling and reliable
system safety.
Key Features
|
Parameter |
Specification |
|
Product Model |
3VA1440-5MH32-0AA0 |
|
Brand |
Siemens |
|
Series |
SENTRON 3VA1 |
|
Frame Size |
3VA14 |
|
Type |
MCCB (Molded Case Circuit Breaker) |
|
Trip Unit |
TM120 / ATFM |
|
Rated Current |
400 A |
|
Number of Poles |
3 Pole |
|
Breaking Capacity (Icu) |
55 kA @ 415 V AC |
|
Ics |
100% of Icu |
|
Protection Type |
Thermal magnetic (fixed / simplified settings) |
|
Rated Operational Voltage |
Up to 690 V AC |
|
Frequency |
50/60 Hz |
|
Mounting Type |
Fixed mounting |
|
Connection Type |
Lug / nut keeper |
|
Standards |
IEC 60947-2 |
