3VJ10 MCCB, Thermal Magnetic Trip Unit - 3VJ1010-1DB32-0AA0

Product Description

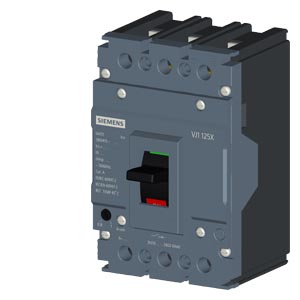

Siemens 3VJ10 MCCB with Thermal Magnetic Trip Unit – 3VJ1010-1DB32-0AA0

The Siemens 3VJ1010-1DB32-0AA0 is a Molded Case Circuit Breaker (MCCB) from the SENTRON 3VJ10 series, designed to provide reliable protection for low-voltage electrical systems against overload and short-circuit faults. This 3-pole MCCB is equipped with a Thermal Magnetic Trip Unit (ATFM type), offering adjustable overload protection and fixed short-circuit protection, making it suitable for industrial and commercial power distribution applications.

It is commonly used in LT panels, MCC/PCC panels, feeder circuits, and distribution boards, where dependable protection and compact design are required.

Key Features:

• Siemens SENTRON 3VJ10 series MCCB

• Part Number: 3VJ1010-1DB32-0AA0

• 3-pole molded case circuit breaker

• Thermal Magnetic Trip Unit (ATFM)

• Rated current: 100A

• Frame size: 3VJ10 (125A frame)

• Adjustable overload protection (Ir: approx. 80–100A)

• Fixed short-circuit protection (Ii: ~1250A)

• High breaking capacity: 18kA at 415V AC

• IEC 60947-2 compliant design

• Compact and robust construction for panel mounting

• Reliable protection against overload and short-circuit faults

• Screw terminal connection for secure wiring

• Suitable for industrial and commercial distribution systems

• Maintenance-free operation
