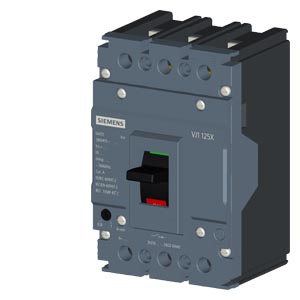

Siemens Sinova 3VJ1 MCCB 25A 3 Pole 10kA Thermal Magnetic Circuit Breaker – 3VJ1092-0DB32-0AA0
The Siemens 3VJ1092-0DB32-0AA0 is a reliable Sinova 3VJ1 Molded Case Circuit Breaker (MCCB) designed for efficient protection of electrical distribution systems against overload and short-circuit faults. Featuring a 3 Pole configuration, 25A rated current, and 10kA breaking capacity at 415V AC, this MCCB ensures safe and dependable operation in industrial, commercial, and infrastructure applications. Equipped with an Adjustable Thermal Magnetic Trip Unit (ATFM), it provides accurate overload protection and fixed short-circuit protection for enhanced system safety. Its compact design, screw terminal connections, and compliance with IEC standards make it suitable for motor protection, distribution panels, and electrical control systems.
• Siemens Sinova 3VJ1 Series MCCB
• Part Number: 3VJ1092-0DB32-0AA0
• 3 Pole (3P) configuration
• Rated Current: 25A
• Breaking Capacity: 10kA at 415V AC
• Adjustable Thermal Magnetic Trip Unit (ATFM)
• Adjustable overload protection (Ir: 20A–25A)
• Fixed short-circuit protection (Ii: 500A)
• Reliable line and equipment protection
• Compact and rugged construction
• Screw terminal connection
• High operational reliability and long service life
• Suitable for industrial and commercial applications
• Easy panel mounting installation
• Protection against overload and short-circuit faults
• Complies with IEC / IS 60947-2 standards
• Ideal for LT panels, motor feeders, and power distribution systems
| Parameter | Specification |
|---|---|
| Product Series | Siemens Sinova 3VJ1 |
| Part Number | 3VJ1092-0DB32-0AA0 |
| Product Type | Molded Case Circuit Breaker (MCCB) |
| Number of Poles | 3 Pole (3P) |
| Rated Current | 25A |
| Rated Voltage | 415V AC |
| Breaking Capacity (Icu) | 10kA |
| Breaking Capacity (Ics) | 100% of Icu |
| Trip Unit Type | Adjustable Thermal Magnetic (ATFM) |
| Overload Protection Setting | 20A – 25A |
| Short Circuit Protection | 500A Fixed |
| Connection Type | Screw Connection |
| Mounting Type | Panel Mounting |
| Insulation Voltage | 800V |
| Frequency | 50/60 Hz |
| Standard Compliance | IEC / IS 60947-2 |
| Mechanical Life | Up to 15,000 Operations |
