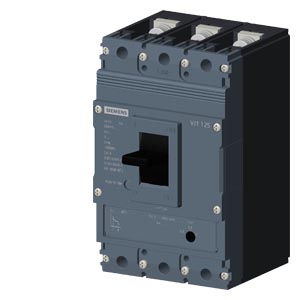

The Siemens 3VJ1106-5DB32-0AA0 is a high-performance SENTRON 3VJ Series Molded Case Circuit Breaker (MCCB) designed for reliable protection of electrical distribution systems against overload and short-circuit faults. This 3 Pole MCCB features a 63A rated current, 36kA breaking capacity, and Adjustable Thermal Fixed Magnetic (ATFM) trip unit for enhanced protection and operational flexibility. Built for industrial and commercial power distribution applications, it ensures safe switching, dependable circuit protection, and long service life in demanding electrical environments such as LT panels, PCC panels, MCC panels, and distribution boards.
• Siemens SENTRON 3VJ Series MCCB
• Part Number: 3VJ1106-5DB32-0AA0
• 3 Pole (3P) configuration
• Rated current: 63A
• Breaking capacity: 36kA at 415V AC
• Adjustable Thermal Fixed Magnetic (ATFM) trip unit
• Reliable overload and short-circuit protection
• Thermal magnetic protection mechanism
• Compact and rugged molded case construction
• High mechanical and electrical endurance
• Screw terminal connection
• Suitable for industrial and commercial applications
• Easy installation and maintenance
• Provides safe isolation and switching operation
• Designed according to IEC 60947-2 standards
• Ideal for LT panels, PCC panels, MCC panels, and power distribution systems
| Parameter | Specification |
|---|---|
| Product Series | Siemens SENTRON 3VJ |
| Part Number | 3VJ1106-5DB32-0AA0 |
| Product Type | Molded Case Circuit Breaker (MCCB) |
| Number of Poles | 3 Pole (3P) |
| Rated Current (In) | 63A |
| Frame Size | 125A Frame |
| Breaking Capacity (Icu) | 36kA @ 415V AC |
| Rated Operational Voltage | Up to 690V AC |
| Frequency | 50/60Hz |
| Trip Unit Type | Adjustable Thermal Fixed Magnetic (ATFM) |
| Overload Protection | Adjustable Thermal Protection |
| Short Circuit Protection | Fixed Magnetic Protection |
| Short Circuit Setting (Ii) | 10 × In |
| Connection Type | Screw Terminal |
| Mounting Type | Panel Mounting |
| Switching Function | Protection & Isolation |
| Protection Function | Overload & Short Circuit Protection |
| Standard Compliance | IEC 60947-2 |
| Enclosure Material | Industrial Grade Thermoplastic |
| Country of Origin | India |
| Application | LT Panels, PCC Panels, MCC Panels, Industrial Distribution Systems |
