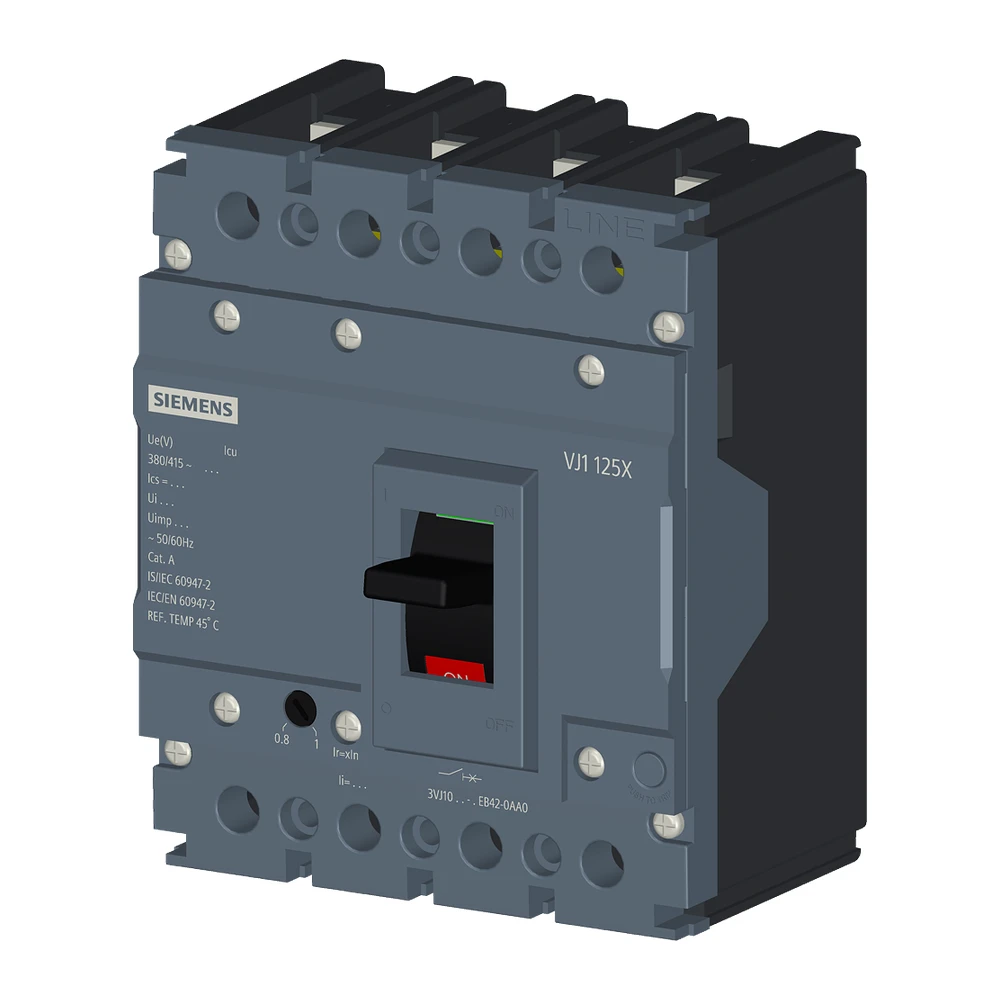

Siemens 3VJ MCCB – Thermal Magnetic Trip Unit – 3VJ1110-6EB42-0AA0
The Siemens 3VJ1110-6EB42-0AA0 is a SENTRON 3VJ
series molded case circuit breaker (MCCB) designed for reliable protection
of low-voltage electrical distribution systems against overload and
short-circuit faults. It is widely used in industrial switchboards, PCC/MCC
panels, commercial buildings, and OEM machinery applications where
dependable circuit protection and high fault interruption capability are
required.
This MCCB belongs to the 3VJ11 frame size (125A platform)
and is equipped with a thermal magnetic trip unit (ATFM – Adjustable Thermal
Fixed Magnetic). It offers adjustable overload protection with fixed
instantaneous magnetic short-circuit protection for improved coordination and
operational reliability.
With a rated current of 100A, 4-pole configuration,
and high breaking capacity, this breaker is suitable for demanding
industrial and commercial power distribution systems requiring enhanced
protection performance.
Key Features
|
Parameter |
Specification |
|
Product Model |
3VJ1110-6EB42-0AA0 |
|
Brand |
Siemens |
|
Series |
SENTRON 3VJ |
|
Type |
MCCB (Molded Case Circuit Breaker) |
|
Trip Unit |
ATFM (Adjustable Thermal Fixed Magnetic) |
|
Rated Current |
100 A |
|
Number of Poles |
4 Pole |
|
Protection Type |
Overload + short-circuit protection |
|
Overload Protection |
Adjustable thermal trip |
|
Short-Circuit Protection |
Fixed magnetic trip |
|
Frame Size |
3VJ11 (125 A frame) |
|
Rated Operational Voltage |
Up to 690 V AC |
|
Mounting Type |
Fixed mounting |
|
Connection Type |
Screw / lug terminal |
|
Frequency |
50/60 Hz |
|
Standards |
IEC 60947-2 |
