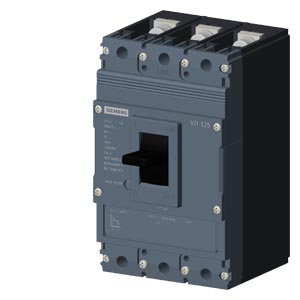

Siemens 3VJ MCCB – Thermal Magnetic Trip Unit –
3VJ1112-6DB32-0AA0
The Siemens 3VJ1112-6DB32-0AA0 is a SENTRON 3VJ
series molded case circuit breaker (MCCB) designed for reliable protection
of low-voltage power distribution systems against overload and
short-circuit faults. It is widely used in industrial switchboards,
PCC/MCC panels, OEM equipment, commercial installations, and infrastructure
applications where compact, dependable circuit protection is required.
This MCCB belongs to the 3VJ11 IEC frame series and
is equipped with a thermal magnetic trip unit (ATFM – Adjustable Thermal
Fixed Magnetic), offering adjustable overload protection and fixed
magnetic short-circuit protection. This ensures stable coordination and
reliable fault interruption in industrial electrical networks.
With a rated current of 125A and a breaking
capacity of 36kA at 415V AC, this breaker is suitable for medium-duty
industrial and commercial power distribution systems requiring dependable
performance under fault conditions.
Key Features
|
Parameter |
Specification |
|
Product Model |
3VJ1112-6DB32-0AA0 |
|
Brand |
Siemens |
|
Series |
SENTRON 3VJ |
|
Type |
MCCB (Molded Case Circuit Breaker) |
|
Trip Unit |
ATFM (Adjustable Thermal Fixed Magnetic) |
|
Rated Current |
125 A |
|
Number of Poles |
3 Pole |
|
Breaking Capacity (Icu) |
36 kA @ 415 V AC |
|
Ics |
75% of Icu |
|
Overload Protection |
Adjustable thermal setting |
|
Short-Circuit Protection |
Fixed magnetic trip |
|
Frame Size |
3VJ11 |
|
Rated Operational Voltage |
Up to 690 V AC |
|
Mounting Type |
Fixed mounting |
|
Connection Type |
Screw terminal |
|
Frequency |
50/60 Hz |
|
Standards |
IEC 60947-2 |
