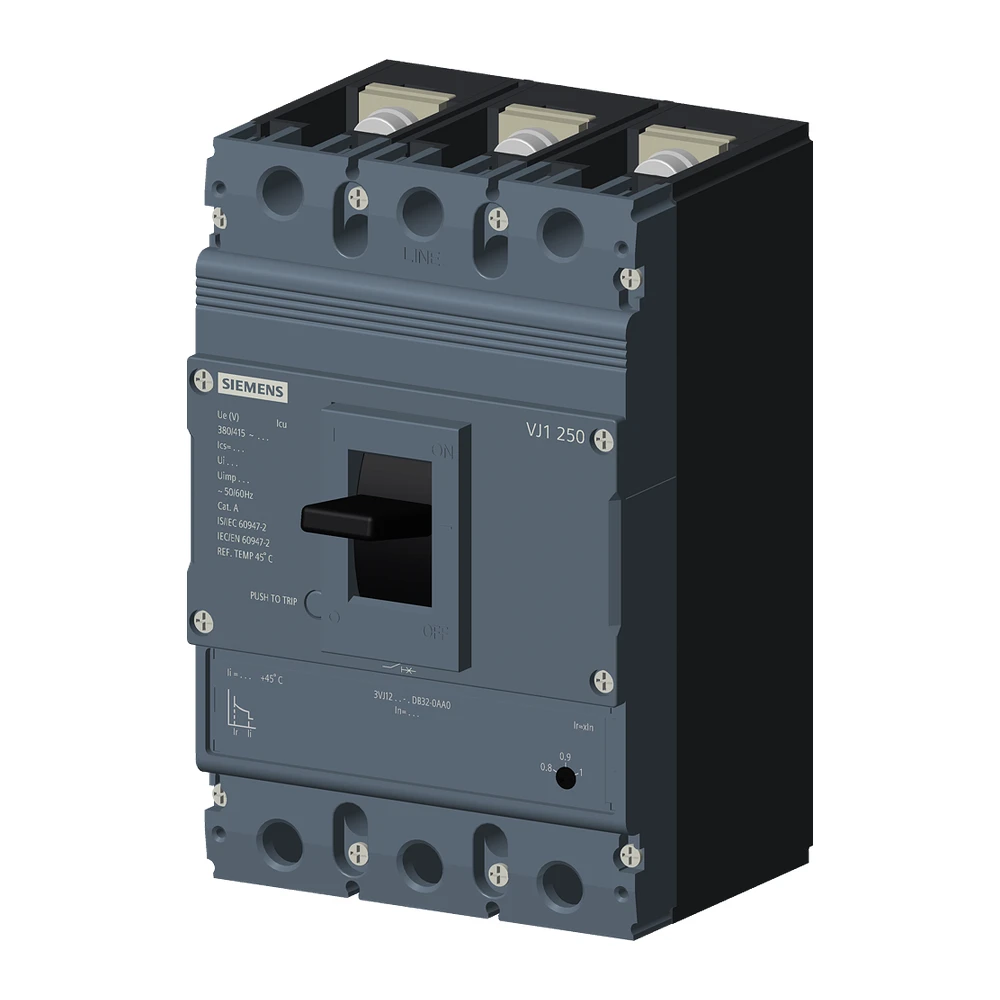

Siemens 3VJ MCCB – Thermal Magnetic Trip Unit –
3VJ1216-5DB32-0AA0
The Siemens 3VJ1216-5DB32-0AA0 is a SENTRON /
SINOVA 3VJ series molded case circuit breaker (MCCB) designed for reliable
protection of low-voltage distribution systems against overload and
short-circuit faults. It is widely used in industrial switchboards,
PCC/MCC panels, OEM machinery, commercial buildings, and infrastructure
projects where compact size and high fault interruption capability
are required.
This model belongs to the 3VJ12 frame series and
features a thermal magnetic trip unit (ATFM – Adjustable Thermal Fixed
Magnetic). It provides adjustable overload protection with fixed
instantaneous short-circuit protection, ensuring stable coordination in
feeder and distribution circuits.
It is a 3-pole MCCB with 160A rated current and 36kA
breaking capacity at 415V AC, making it suitable for medium-duty
industrial distribution and feeder protection applications.
Key Features
|
Parameter |
Specification |
|
Product Model |
3VJ1216-5DB32-0AA0 |
|
Brand |
Siemens |
|
Series |
SENTRON / SINOVA 3VJ |
|
Type |
MCCB (Molded Case Circuit Breaker) |
|
Trip Unit |
ATFM (Thermal Magnetic) |
|
Rated Current |
160 A |
|
Number of Poles |
3 Pole |
|
Breaking Capacity (Icu) |
36 kA @ 415 V AC |
|
Protection Type |
Overload (adjustable) + Short-circuit (fixed) |
|
Frame Size |
3VJ12 |
|
Rated Voltage |
Up to 415 V AC |
|
Frequency |
50/60 Hz |
|
Mounting Type |
Fixed mounting |
|
Connection Type |
Screw terminal |
|
Standards |
IEC 60947-2 |
