Product Description

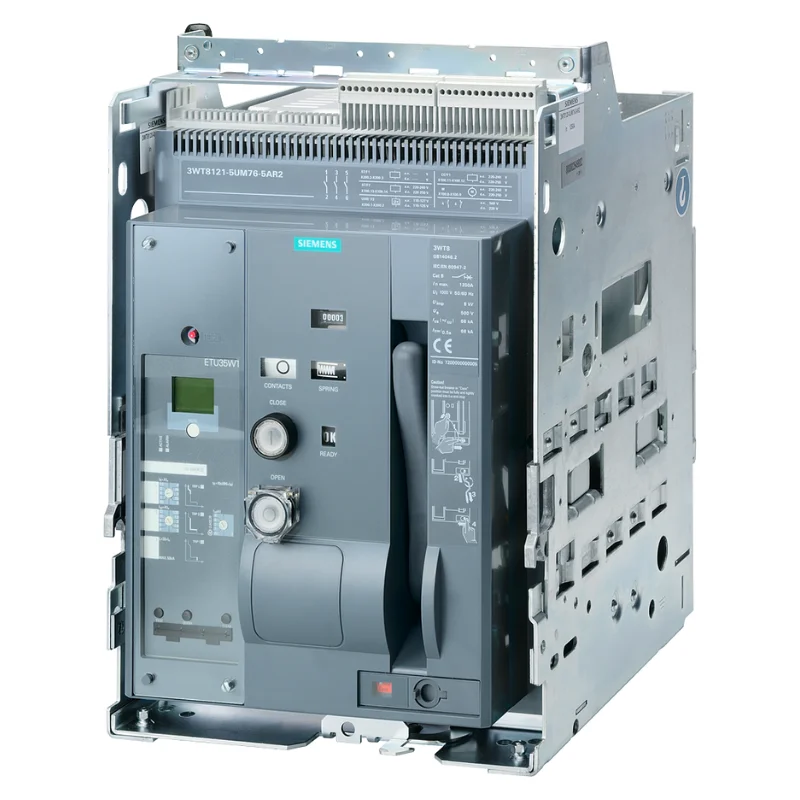

Siemens 3WT8202-6UA34-5AB2 – Air Circuit Breaker (ACB)

The Siemens 3WT8202-6UA34-5AB2 is a SENTRON 3WT8 series withdrawable Air Circuit Breaker (ACB) designed for heavy-duty low-voltage power distribution systems. It is typically used as a main incomer or feeder breaker in PCC, MCC, transformer, generator, and industrial distribution panels.

🔹 Description

The 3WT8202-6UA34-5AB2 is a 3-pole draw-out (withdrawable) ACB with an ETU37WT LSING electronic trip unit. It features a motorized/manual operating mechanism, shunt release, auxiliary contacts, trip indication, and mechanical lockout system for enhanced operational safety.

The breaker is suitable for critical installations where reliable fault protection and easy maintenance are required.

🔹 Key Features

• Siemens SENTRON 3WT8 Series
• Model: 3WT8202-6UA34-5AB2
• Type: Air Circuit Breaker (ACB)
• Rated Current: 2000A
• Poles: 3 Pole
• Breaking Capacity (Icu): 66kA @ 500V AC
• Withdrawable / Draw-Out Design
• ETU37WT LSING Electronic Trip Unit
• Adjustable Overload Protection
• Short Circuit Protection
• Ground Fault Protection
• Mechanical Lockout Device
• Tripped Signaling Switch & Indicators
• Motorized + Manual Operating Mechanism
• Shunt Release F/F2 Included
• Auxiliary Contacts: 2NO + 2NC
• Guide Frame Included
• Door Sealing Frame & Shutter System
• IEC 60947-2 Compliant Design
• Suitable for Industrial Power Distribution Applications
