Product Description

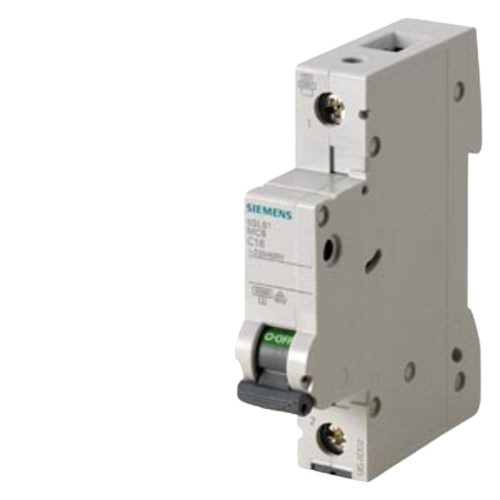

Siemens 5SL5116-7RC MCB 16A 1-Pole C Characteristic 10kA DC

The Siemens 5SL5116-7RC is a SENTRON 5SL5 miniature circuit breaker (MCB) designed specifically for DC circuit protection. This Siemens DC MCB features a 16 A rated current, 1-pole configuration, C tripping characteristic, 220 V DC operating voltage and 10 kA short-circuit breaking capacity, making it suitable for appropriately designed DC electrical installations requiring dependable protection against overload and short-circuit conditions.

The Siemens 5SL5116-7RC 16A 1-pole DC MCB is designed for individual DC circuits where reliable overcurrent protection is required in a compact modular format. Since DC fault interruption differs from AC fault interruption, a dedicated DC-rated MCB is important for applications operating within the product's specified electrical ratings.

With a 16 A rated current, the 5SL5116-7RC is suitable for appropriately designed low-to-medium current DC circuits. The connected load, conductor capacity, operating conditions and coordination with upstream and downstream protective devices should be considered when selecting the MCB.

The C tripping characteristic provides a defined response for compatible circuits where moderate starting or transient currents may occur. This makes the MCB suitable for selected DC control circuits, automation systems, auxiliary power circuits and electrical equipment, provided the load characteristics are compatible.

The 1-pole configuration provides a compact and space-efficient solution for individual DC circuit protection. It can be integrated into DC distribution boards, industrial control panels, automation cabinets, machinery panels and OEM electrical assemblies.

The 10 kA short-circuit breaking capacity provides the specified fault-interruption capability for applicable DC installations. The prospective short-circuit current should always be evaluated before installation to ensure the selected MCB is suitable for the actual DC system.

Key Features

• Siemens 5SL5116-7RC
• SENTRON 5SL5 series DC miniature circuit breaker
• Rated current: 16 A
• 1-pole (1P) configuration
• C tripping characteristic
• 10 kA short-circuit breaking capacity
• Rated DC operating voltage: 220 V DC
• Designed specifically for DC circuit protection
• Designed for overload protection
• Designed for short-circuit protection
• Suitable for individual DC circuit protection
• Suitable for industrial DC distribution systems
• Suitable for control and auxiliary circuits
• Suitable for automation applications
• Suitable for OEM electrical equipment
• Compact modular circuit protection solution

Applications

The Siemens 5SL5116-7RC 16A 1-pole C curve DC MCB can be considered for:

• DC electrical distribution
• Industrial DC control panels
• Auxiliary DC circuits
• DC power supply systems
• Battery-related electrical systems
• Industrial automation systems
• OEM DC electrical panels
• Machinery DC control circuits
• Control and signalling systems
• DC switchboards
• Power electronics equipment
• Renewable-energy electrical systems
• Industrial infrastructure
• Electrical equipment protection
• Suitable low-to-medium current DC circuits

Benefits

The Siemens 5SL5116-7RC provides dependable circuit protection for DC applications requiring a 16 A, 1-pole MCB with C characteristic and 10 kA breaking capacity. Its dedicated DC design makes it suitable for applications where the circuit breaker must provide protection under DC operating conditions.

The 16 A current rating makes this MCB appropriate for suitably designed low-to-medium current DC circuits. Proper coordination between the protective-device rating, connected load and conductor capacity helps provide effective overload protection while allowing the circuit to operate normally.

The C tripping characteristic provides a practical protection response for suitable DC circuits where moderate starting or transient currents may occur. It can be considered for selected industrial control systems, automation circuits, auxiliary supplies and compatible DC equipment, subject to the complete electrical protection design.

The 1-pole construction offers a compact solution for individual DC circuit protection. This is useful in DC distribution boards, industrial control cabinets, automation panels, machinery control systems and OEM electrical assemblies where individual circuits require dedicated protection.

The 10 kA breaking capacity provides the specified short-circuit interruption capability for suitable DC installations. Because DC fault interruption depends on system voltage, available fault current and circuit configuration, these parameters should always be verified before installation.

The 220 V DC operating voltage makes the 5SL5116-7RC suitable for compatible DC systems operating within its specified voltage rating. This makes it relevant to selected industrial DC distribution, control, auxiliary power and equipment-protection applications.

The Siemens SENTRON 5SL5 DC series provides a dedicated modular solution for professional DC circuit protection. The 5SL5116-7RC can therefore be considered by OEMs, panel builders, electrical contractors, automation integrators and industrial maintenance teams.

For customers sourcing Siemens DC circuit protection products across Faridabad, Delhi NCR, Noida, Gurgaon/Gurugram, Ghaziabad, Punjab, Mumbai, Pune, Ahmedabad, Hyderabad, Bengaluru/Bangalore, Chennai, Kolkata, Jaipur, Chandigarh, Ludhiana and other major industrial and commercial locations across India, the 5SL5116-7RC can be considered for suitable applications.

Always verify the actual DC system voltage, polarity, pole connection, prospective short-circuit current and applicable Siemens wiring arrangement before installation.

Why Buy Siemens 5SL5116-7RC from SB Smart?

SB Smart supplies Siemens industrial electrical, automation and DC circuit protection products for OEMs, panel builders, electrical contractors, system integrators, energy-sector customers and industrial maintenance teams across India.

The Siemens 5SL5116-7RC 16A 1P C characteristic 10 kA DC MCB is suitable for customers looking for Siemens circuit protection products for industrial DC distribution, control panels, auxiliary systems, automation equipment and OEM electrical applications.

SB Smart supports sourcing requirements across Faridabad, Delhi NCR, Noida, Gurgaon/Gurugram, Mumbai, Pune, Ahmedabad, Hyderabad, Bengaluru/Bangalore, Chennai, Kolkata, Chandigarh, Ludhiana and other major industrial markets across India.

FAQs

1. What is Siemens 5SL5116-7RC?
It is a Siemens SENTRON 5SL5 DC miniature circuit breaker rated 16 A, 1-pole, C characteristic and 10 kA breaking capacity.

2. What is the rated current?
The rated current is 16 A.

3. Is the 5SL5116-7RC designed for DC applications?
Yes. It belongs to the Siemens 5SL5 DC MCB range and is intended for suitable DC circuit protection applications.

4. What is the rated DC voltage?
The specified DC operating voltage is 220 V DC.

5. What is the breaking capacity?
The specified short-circuit breaking capacity is 10 kA.

6. How many poles does this MCB have?
The 5SL5116-7RC is a 1-pole (1P) DC miniature circuit breaker.

7. Where can the Siemens 5SL5116-7RC be used?
It can be considered for suitable DC distribution systems, industrial control panels, auxiliary power circuits, automation equipment, OEM installations and other compatible DC applications.

8. Is the wiring arrangement important for this DC MCB?
Yes. Correct pole connection, polarity and wiring arrangement are important for proper DC fault interruption. The installation should follow the applicable Siemens connection instructions.
