Parameter |
Specification |
|
Product Series |
SENTRON |
|
Part Number |

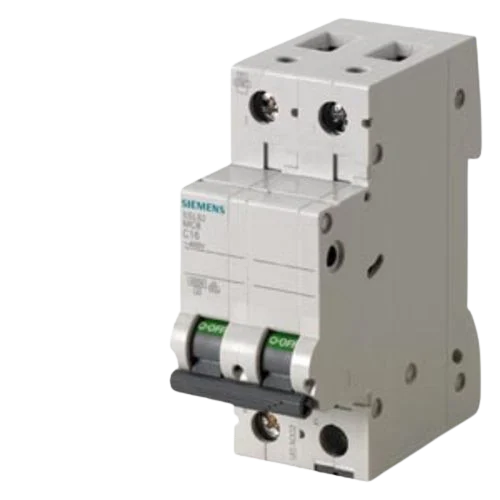

5SL5240-7RC |
|
Product Type |
Miniature Circuit Breaker (MCB) |
|
Number of Poles |
2 Pole |
|
Rated Current |
40A |
|
Tripping Characteristic |
C Curve |
|
Rated Operational Voltage |
440V DC |
|
Voltage Type |
DC |
|
Breaking Capacity |
10kA |
|
Current Limiting Class |
Class 3 |
|
Mounting Type |
DIN Rail Mounting |
|
Frequency |
DC Application |
|
Degree of Protection |
IP20 |
|
Overvoltage Category |
III |
|
Pollution Degree |
2 |
|
Mechanical Life |
Approx. 8,500 operating cycles |
|
Terminal Capacity
(Solid/Stranded) |
0.75 – 35 mm² |
|
Tightening Torque |
2.5 – 3 Nm |
|
Width |
36 mm |
|
Height |
90 mm |
|
Depth |
76 mm |
|
Installation Depth |
70 mm |
|
Net Weight |
Approx. 0.30 kg |
|
Operating Temperature |
-40°C to +70°C |
|
Mounting Position |
Any |
|
Standard Compliance |
IEC 60898-2 / IEC 60947-2 |
|
Application |
Solar Systems, Battery Banks, Industrial
DC Panels, EV Charging Systems |
