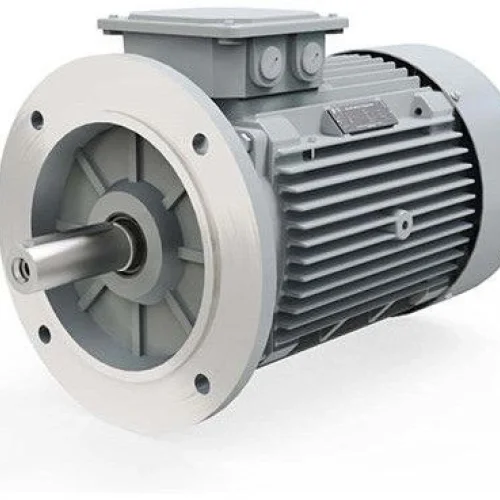

The Innomotics 1LE7603-0CA22-3AA4 is a SIMOTICS SD low-voltage three-phase induction motor designed to deliver reliable, energy-efficient performance in industrial and commercial applications. Constructed with a rugged cast iron housing, it provides excellent durability, vibration resistance, and long service life, even in demanding operating environments.
With a power rating of 0.25 kW (0.35 HP), Frame Size 71, and a 2-pole configuration delivering approximately 3000 RPM at 50 Hz, this motor is ideal for high-speed applications such as pumps, fans, blowers, conveyors, and light industrial machinery. It features IE3 Premium Efficiency, IP55 protection, Class F insulation (155°C), IC411 self-ventilated cooling, and IM B3 foot mounting, ensuring reliable operation with reduced energy consumption and low maintenance requirements.
| Parameter | Specification |
|---|---|
| Product Type | Three-Phase Induction Motor |
| Model Number | 1LE7603-0CA22-3AA4 |
| Product Series | SIMOTICS SD |
| Brand | Innomotics |
| Power Rating | 0.25 kW (0.35 HP) |
| Frame Size | 71 |
| Number of Poles | 2 Pole |
| Rated Speed | 3000 RPM (50 Hz) |
| Efficiency Class | IE3 Premium Efficiency |
| Rated Voltage | 240V Δ / 415V Y AC |
| Frequency | 50 Hz |
| Mounting Type | IM B3 (Foot Mounted) |
| Enclosure Protection | IP55 |
| Insulation Class | Class F (155°C) |
| Cooling Method | IC411 (Self-Ventilated) |
| Housing Material | Cast Iron |
| Application | Pumps, Fans, Blowers, Conveyors, Industrial Machinery |
