Product Description

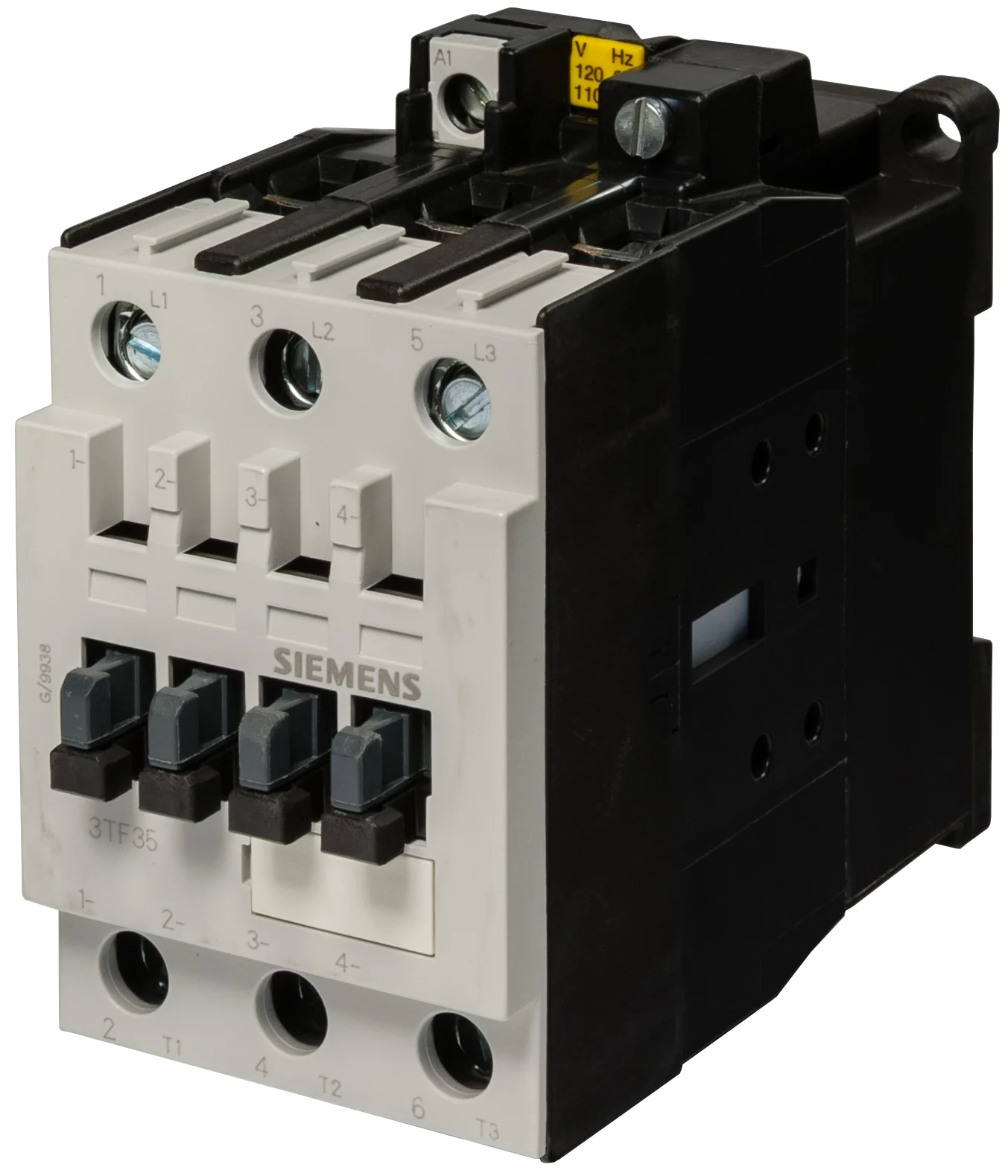

🔹 Power Contactor – Siemens 3TF35000AP0 (3TF Series, 3-Pole AC Coil)
🔹 Product Overview
The Siemens 3TF35000AP0 is a 3-pole industrial power contactor from the 3TF SICOP series, designed for switching and controlling three-phase motors and power circuits in industrial and commercial applications.
This contactor is rated for 40A AC-3 duty and is suitable for controlling motors up to 18.5 kW at 415V AC. The AP0 variant is equipped with a 230V AC control coil, making it ideal for motor starter panels, MCCs, pumps, compressors, HVAC systems, and automation equipment.
🔹 Key Features
• Siemens 3TF SICOP series
• Model: 3TF35000AP0
• 3-pole power contactor
• AC operated coil (230V AC)
• Rated current: 40A AC-3 duty
• Suitable for motors up to 18.5 kW at 415V AC
• Compact Size 2 frame design
• High electrical and mechanical durability
• Reliable motor switching performance
• Screw terminal connections
• Compatible with Siemens thermal overload relays
• Suitable for industrial control and automation systems
• Long service life with low maintenance requirements
Technical Specifications
| Product Type | Power Contactor |
| Motor Rating | 18.5 kW @ 415V AC |
| Auxiliary Contacts | Optional |
| Mounting Type | Panel Mounting |
| Terminal Type | Screw Terminal |
| Application | Motor Control & Power Switching |
