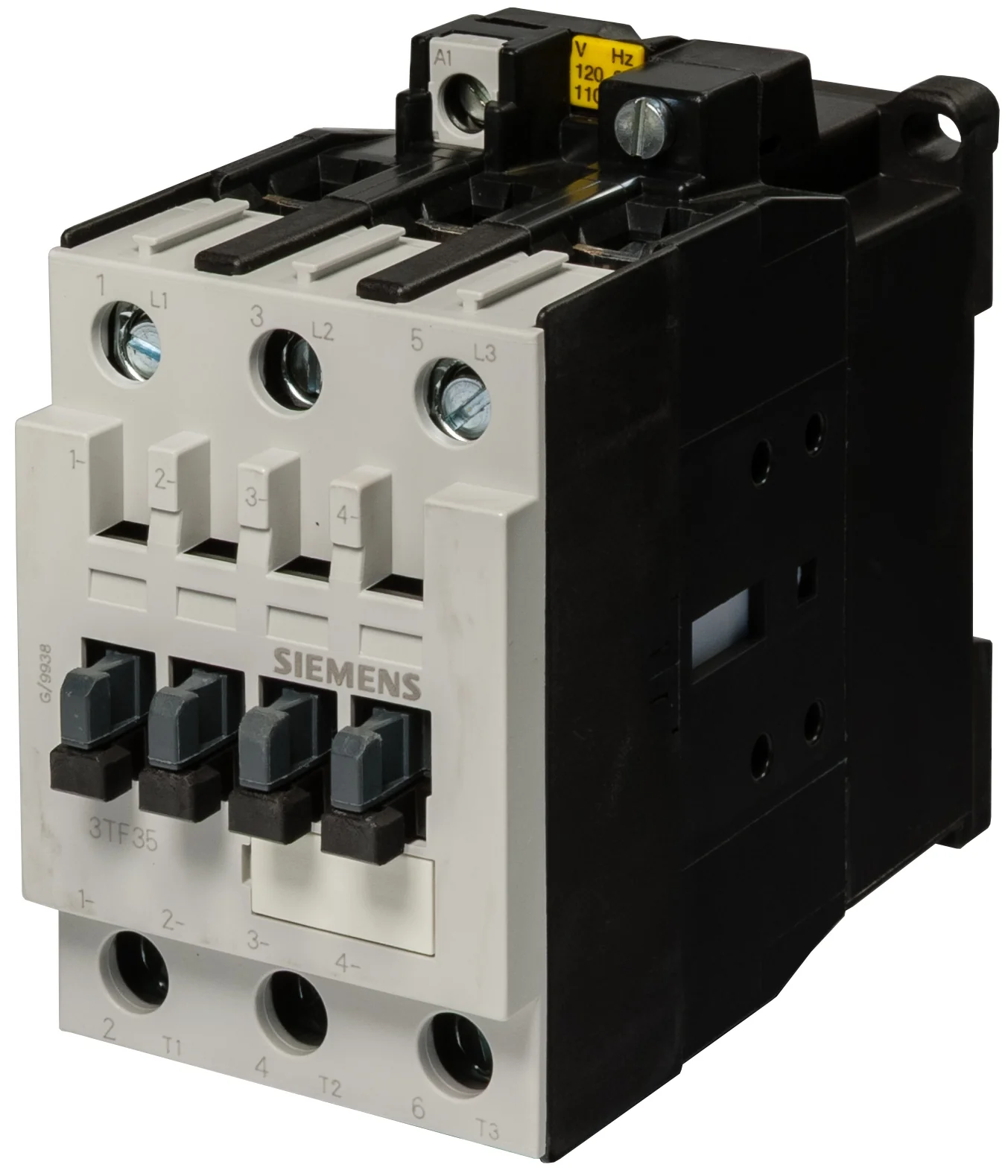

The Siemens 3TF35000AP0ZT00 is a 3-pole industrial power contactor from the 3TF SICOP series, designed for reliable switching and control of three-phase motors and power circuits in industrial applications.
This contactor is rated for 40A AC-3 duty and is suitable for controlling motors up to 18.5 kW at 415V AC. The AP0ZT00 variant features a 230V AC control coil and comes with a factory-fitted 1NO auxiliary contact, making it ideal for motor starters, MCC panels, pumps, compressors, HVAC systems, and industrial automation systems.
• Siemens 3TF SICOP series
• Model: 3TF35000AP0ZT00
• 3-pole power contactor
• AC operated coil (230V AC)
• Rated current: 40A AC-3 duty
• Motor rating up to 18.5 kW at 415V AC
• Factory-fitted 1NO auxiliary contact
• Size 2 contactor frame
• High electrical and mechanical endurance
• Reliable motor switching performance
• Screw terminal connections
• Compatible with Siemens overload relays
• Suitable for industrial control and automation systems
• Long service life with low maintenance requirements
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Series | 3TF (SICOP) |
| Part Number | 3TF35000AP0ZT00 |
| Product Type | Power Contactor |
| Poles | 3 Pole |
| Coil Voltage | 230V AC |
| Rated Current (AC-3) | 40A |
| Motor Rating | 18.5 kW @ 415V AC |
| Auxiliary Contact | 1NO Built-in |
| Frame Size | Size 2 |
| Mounting Type | Panel Mounting |
| Terminal Type | Screw Terminal |
| Utilization Category | AC-3 |
| Application | Motor Control & Power Switching |
| Brand | Siemens |
