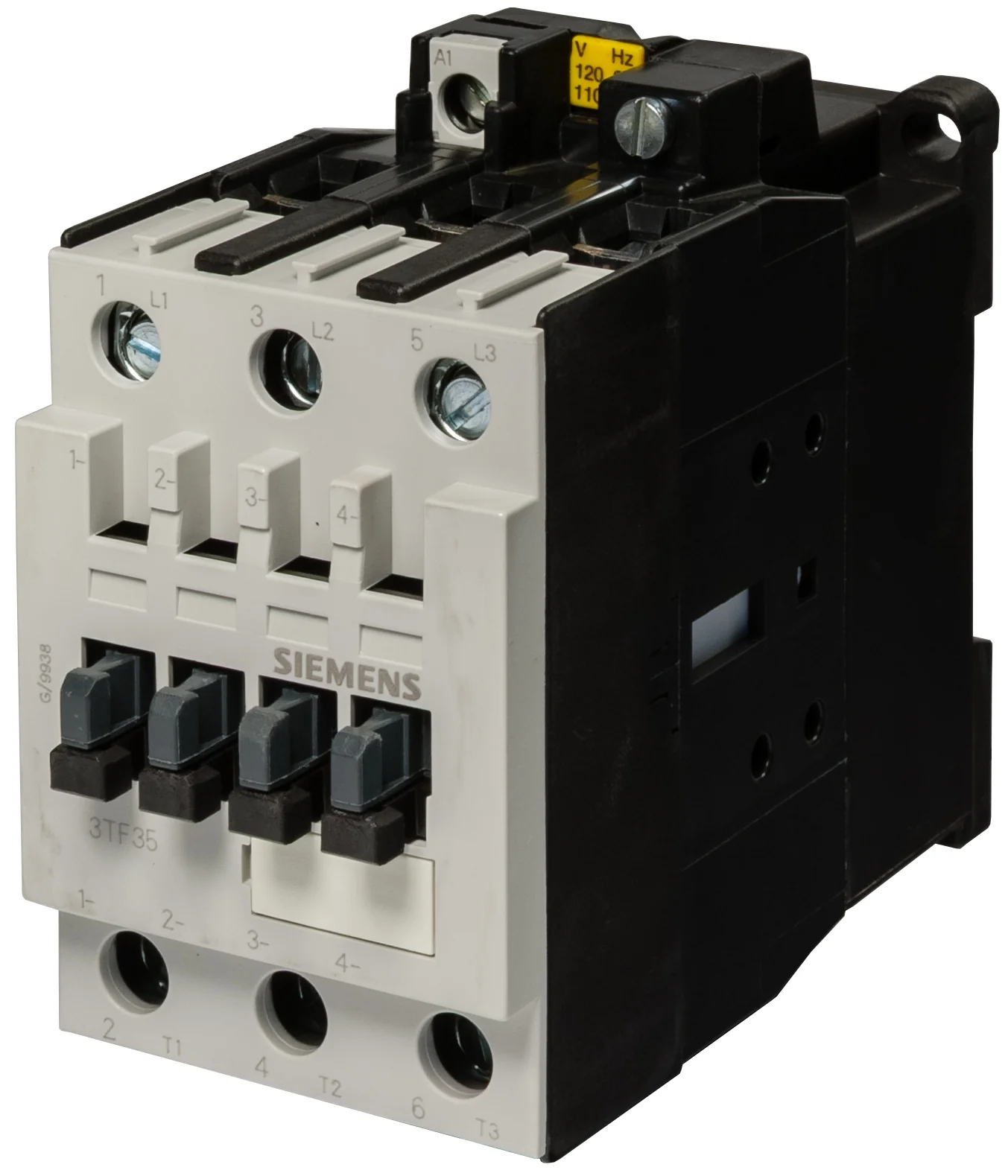

The Siemens 3TF35000AR0 is a 3-pole industrial power contactor from the 3TF SICOP series, designed for switching and controlling three-phase motors and power circuits in industrial applications.
This contactor is rated for 38A–40A AC-3 duty and is suitable for controlling motors up to 18.5 kW at 415V AC. The AR0 variant is equipped with a 415V AC control coil, making it suitable for motor starter panels, MCCs, compressors, pumps, HVAC equipment, and industrial automation systems.
• Siemens 3TF SICOP series
• Model: 3TF35000AR0
• 3-pole power contactor
• AC operated coil (415V AC)
• Rated current: 38A–40A AC-3 duty
• Suitable for motor loads up to 18.5 kW at 415V AC
• Size S2 industrial contactor frame
• High electrical and mechanical endurance
• Reliable switching performance
• Screw terminal connections
• Compatible with Siemens overload relays
• Suitable for industrial motor control and automation systems
• Long service life with low maintenance requirements
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Series | 3TF (SICOP) |
| Part Number | 3TF35000AR0 |
| Product Type | Power Contactor |
| Poles | 3 Pole |
| Coil Voltage | 415V AC |
| Rated Current (AC-3) | 38A–40A |
| Motor Rating | 18.5 kW @ 415V AC |
| Frame Size | S2 |
| Mounting Type | Panel Mounting |
| Terminal Type | Screw Terminal |
| Utilization Category | AC-3 |
| Application | Motor Control & Power Switching |
| Brand | Siemens |
