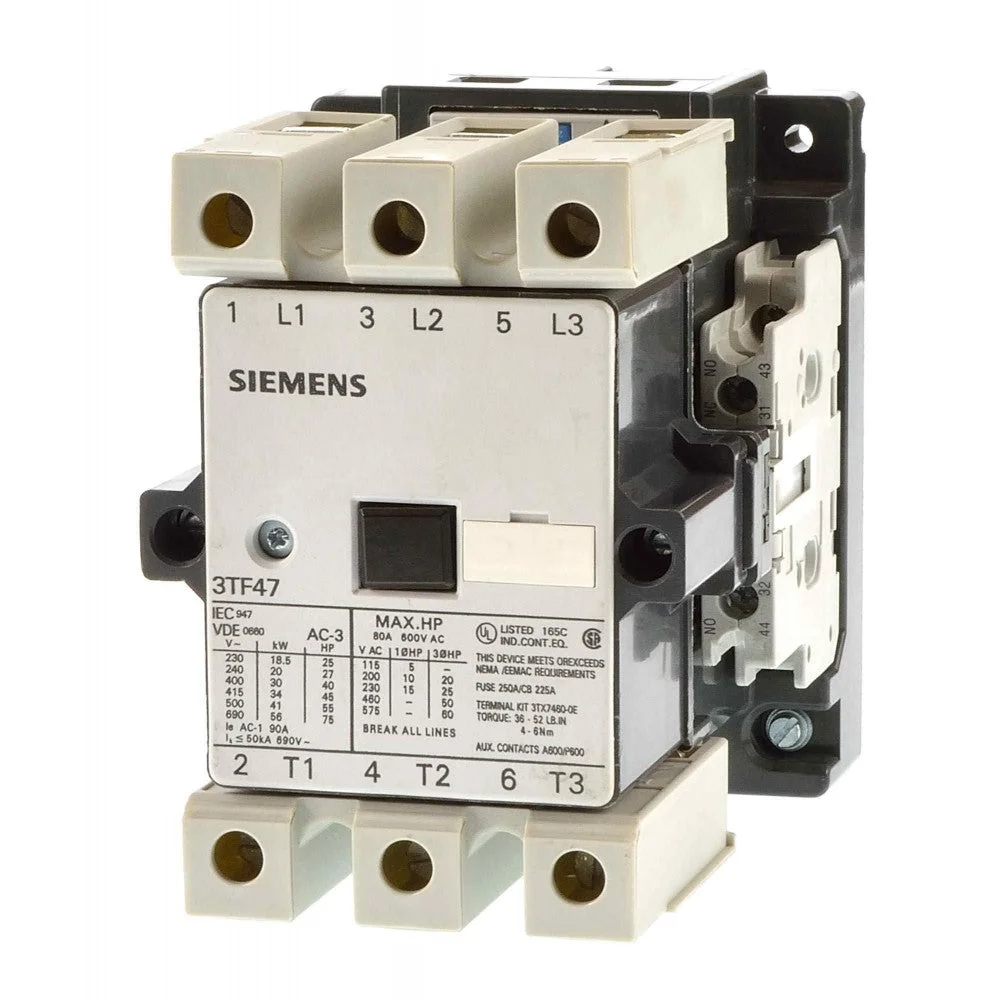

The Siemens 3TF47020AF0ZT00 is a heavy-duty 3-pole power contactor from the highly reliable 3TF SICOP series, specifically designed for switching and controlling three-phase motors and industrial power circuits.
This model features a 110V AC coil (AF0 variant) and is rated for 65A AC-3 duty, making it suitable for motors up to 30 kW at 415V AC. The ZT00 variant is supplied with 3 main power contacts (3NO) and no factory-fitted auxiliary contacts, offering flexibility for customized control panel designs.
| Parameter | Specification |
|---|---|
| Product Name | Power Contactor |
| Manufacturer | Siemens |
| Series | 3TF SICOP |
| Model Number | 3TF47020AF0ZT00 |
| Product Type | Heavy Duty Contactor |
| Number of Poles | 3 Pole |
| Main Contacts | 3NO |
| Coil Type | AC Coil |
| Coil Voltage | 110V AC |
| Frequency | 50/60 Hz |
| Rated Current (AC-3) | 65A |
| Motor Power @ 415V AC | 30 kW |
| Rated Insulation Voltage (Ui) | 690V |
| Auxiliary Contacts | None |
| Frame Size | S4 |
| Mounting | Panel Mount |
| Connection Type | Screw Terminal |
| Utilization Category | AC-3 |
| Protection Class | IP20 |
| Standard | IEC 60947 |
