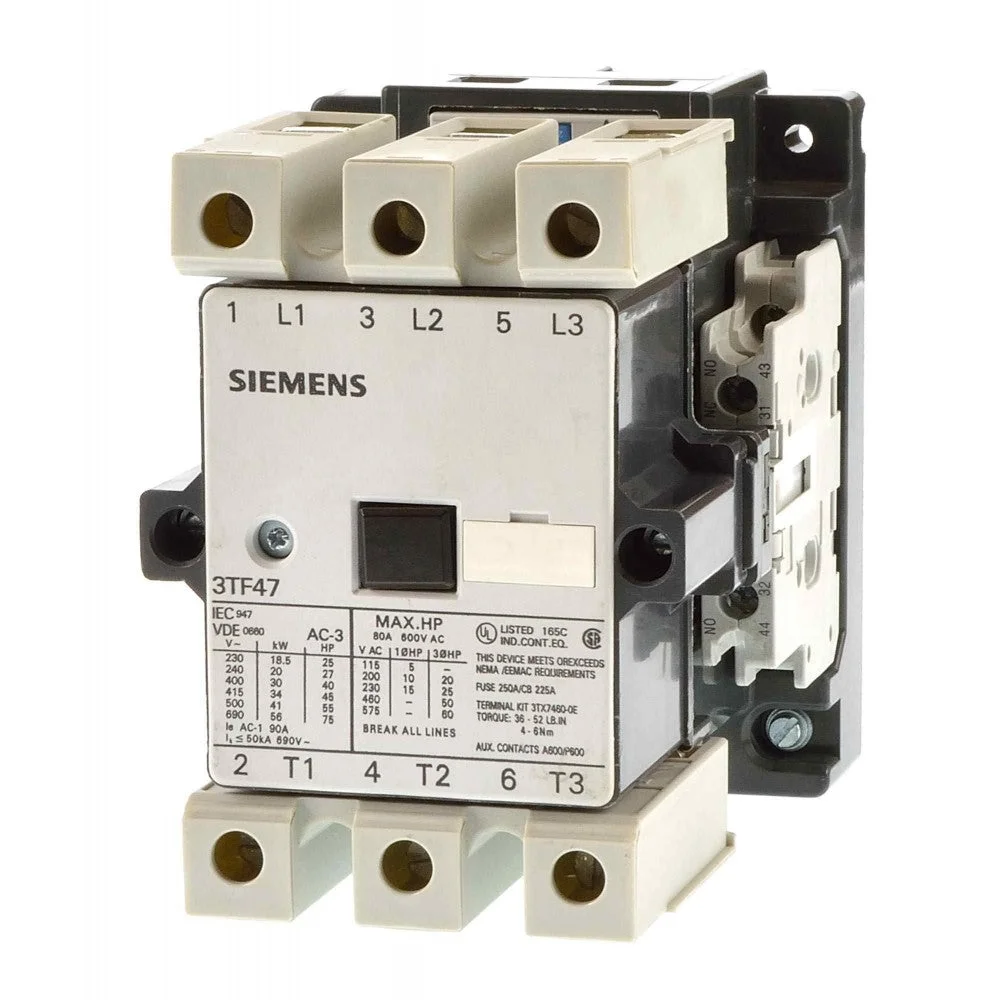

The Siemens 3TF47720AP0 is a heavy-duty 3-pole power contactor from the trusted 3TF SICOP series, designed for efficient switching and control of three-phase motors and industrial power loads.
This model is rated for 70A AC-3 duty and is suitable for controlling motors up to 37 kW at 415V AC. The AP0 variant is equipped with a 230V AC control coil and comes with 2NO + 2NC built-in auxiliary contacts, making it ideal for motor starter panels, MCCs, compressors, pumps, HVAC systems, conveyors, and industrial automation applications.
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Series | 3TF SICOP |
| Part Number | 3TF47720AP0 |
| Product Type | Heavy Duty Power Contactor |
| Poles | 3 Pole |
| Main Contacts | 3NO |
| Auxiliary Contacts | 2NO + 2NC |
| Coil Type | AC Coil |
| Coil Voltage | 230V AC |
| Frequency | 50/60 Hz |
| Rated Current (AC-3) | 70A |
| Motor Rating @ 415V AC | 37 kW |
| Rated Insulation Voltage (Ui) | 690V |
| Frame Size | S3 |
| Mounting Type | Panel Mount |
| Connection Type | Screw Terminal |
| Utilization Category | AC-3 |
| Protection Class | IP20 |
| Mechanical Life | Up to 10 Million Operations |
| Standard | IEC 60947-4-1 |
