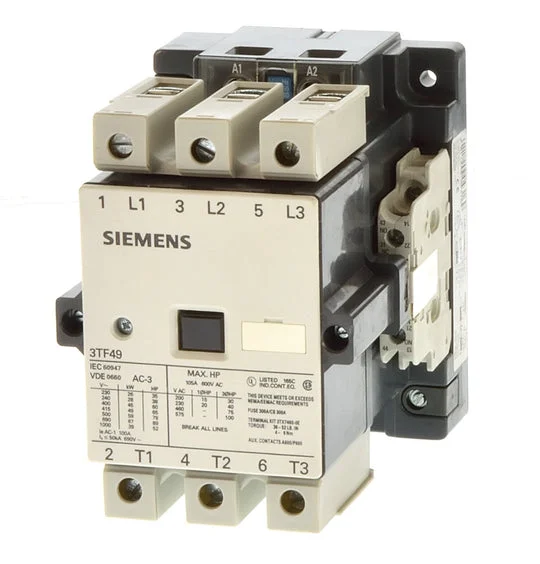

The Siemens 3TF49220AP0ZA01 is a heavy-duty 3-pole power contactor from the 3TF SICOP Series, engineered for switching and controlling three-phase motors and industrial power loads in demanding applications.
This model features a 230V AC control coil (AP0) and comes with 2NO + 2NC factory-fitted auxiliary contacts (ZA01). It is rated at 85A AC-3 duty and is suitable for motors up to 45 kW at 415V AC, making it ideal for MCC panels, motor starters, compressors, pumps, HVAC systems, and industrial automation systems.
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Series | 3TF SICOP |
| Part Number | 3TF49220AP0ZA01 |
| Product Type | Heavy Duty Power Contactor |
| Number of Poles | 3 Pole |
| Main Contacts | 3NO |
| Auxiliary Contacts | 2NO + 2NC |
| Coil Type | AC Coil |
| Coil Voltage | 230V AC |
| Frequency | 50 Hz |
| Rated Current (AC-3) | 85A |
| Motor Power Rating | 45 kW @ 415V AC |
| AC-1 Rating | 170A |
| Frame Size | S4 |
| Connection Type | Screw Terminal |
| Rated Insulation Voltage (Ui) | Up to 690V |
| Breaking Capacity | 50 kA |
| Standard | IS/IEC 60947-4-1 |
| Weight | Approx. 2.3 kg |
