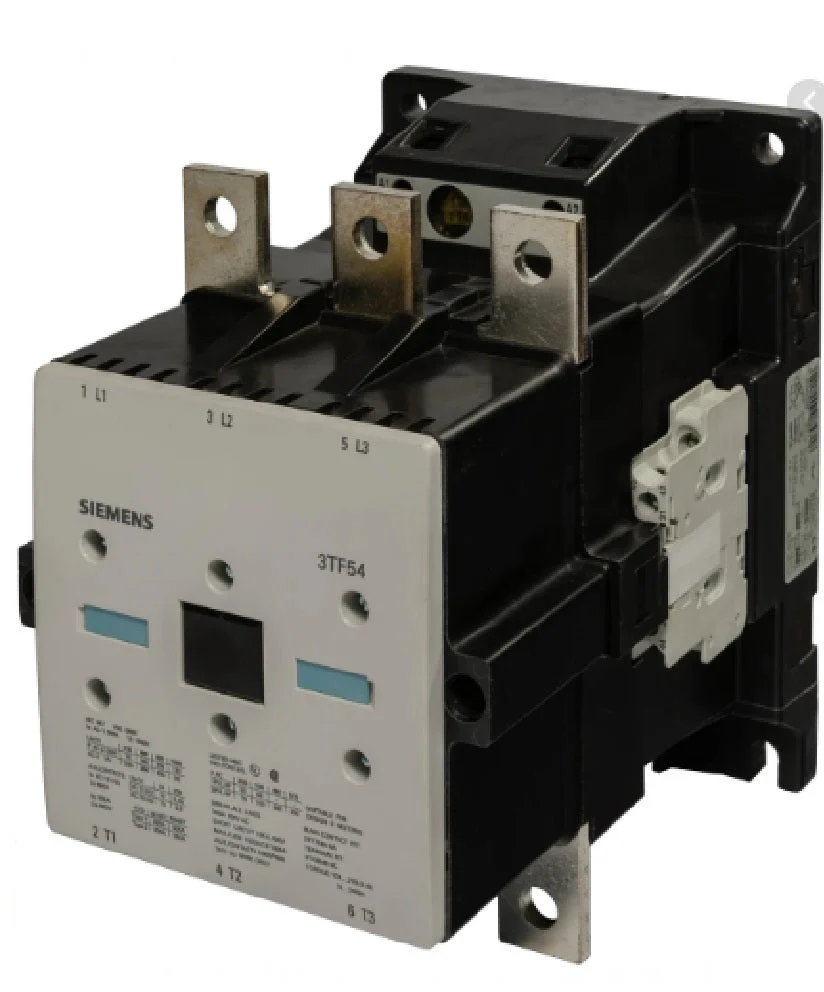

The Siemens 3TF54020AP0 is a heavy-duty 3-pole power contactor from the robust 3TF SICOP Series, engineered for switching and controlling large three-phase motors and high-current industrial loads.
This variant features a 230V AC control coil (AP0) and includes 2NO + 2NC built-in auxiliary contacts. With an AC-3 current rating of 265A, the contactor is suitable for controlling motors up to 132 kW at 415V AC, making it an ideal solution for motor control centers (MCCs), heavy-duty pumps, compressors, HVAC plants, conveyors, mining equipment, steel plants, and industrial automation systems.
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Series | 3TF SICOP |
| Part Number | 3TF54020AP0 |
| Product Type | Heavy Duty Power Contactor |
| Number of Poles | 3 Pole |
| Main Contacts | 3NO |
| Auxiliary Contacts | 2NO + 2NC |
| Coil Type | AC Coil |
| Coil Voltage | 230V AC |
| Frequency | 50/60 Hz |
| Rated Current (AC-3) | 265A |
| Motor Power Rating | 132 kW @ 415V AC |
| AC-1 Rating | 400A |
| Rated Insulation Voltage (Ui) | 1000V |
| Frame Size | S12 |
| Connection Type | Screw Terminal |
| Utilization Category | AC-3 |
| Protection Class | IP20 |
| Mechanical Life | Up to 10 Million Operations |
| Standard | IEC 60947-4-1 |
