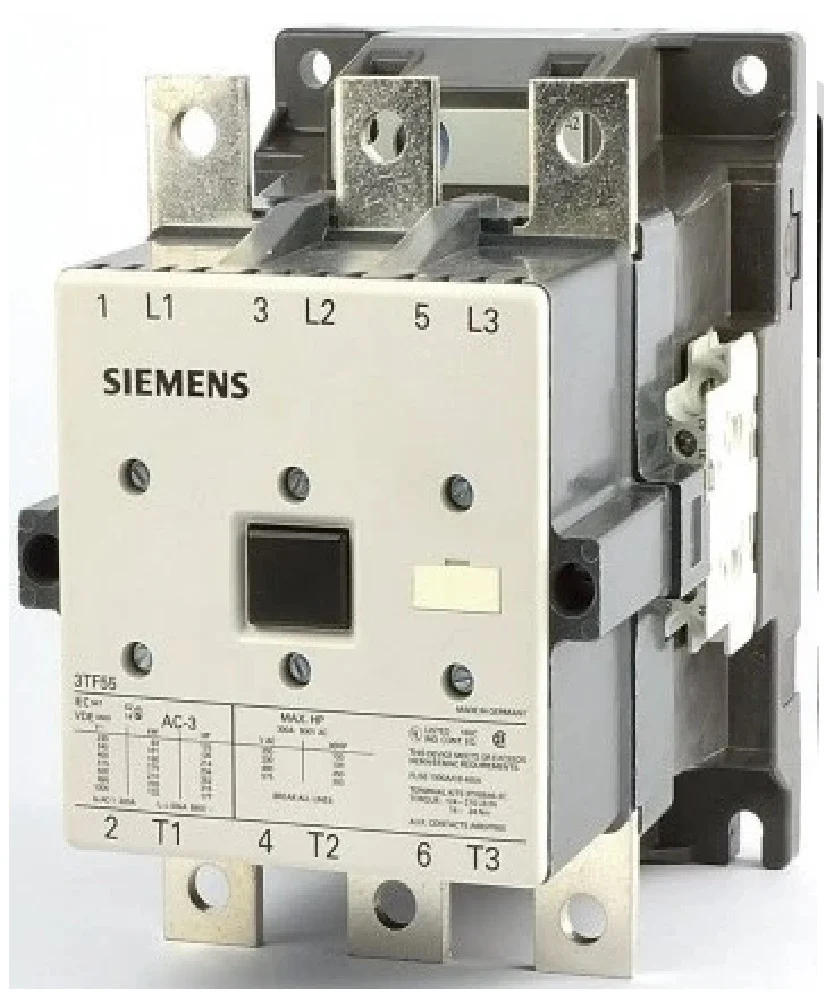

🔹 Power Contactor – Siemens 3TF55020AP0 (3TF Series, Heavy Duty)

🔹 Product Overview

The Siemens 3TF55020AP0 is a heavy-duty 3-pole power contactor from the reliable 3TF SICOP Series, designed for switching and controlling high-power three-phase motors and industrial electrical loads.

This variant features a 230V AC control coil (AP0) and comes with 2NO + 2NC built-in auxiliary contacts. With an AC-3 current rating of 300A, the contactor is suitable for controlling motors up to 160 kW at 415V AC, making it ideal for MCC panels, large motor starters, compressors, pumps, HVAC systems, conveyors, mining operations, steel plants, and other heavy industrial applications.

🔹 Key Features

• Siemens 3TF SICOP Heavy Duty Series
• Part Number: 3TF55020AP0
• 3-Pole Power Contactor
• 230V AC Coil Voltage
• Built-In 2NO + 2NC Auxiliary Contacts
• 300A AC-3 Rated Current
• Suitable for Motors up to 160 kW at 415V AC
• Heavy-Duty Industrial Construction
• Screw Terminal Connections
• High Mechanical & Electrical Endurance
• Compatible with Siemens thermal overload relays
• Designed for continuous industrial operation
