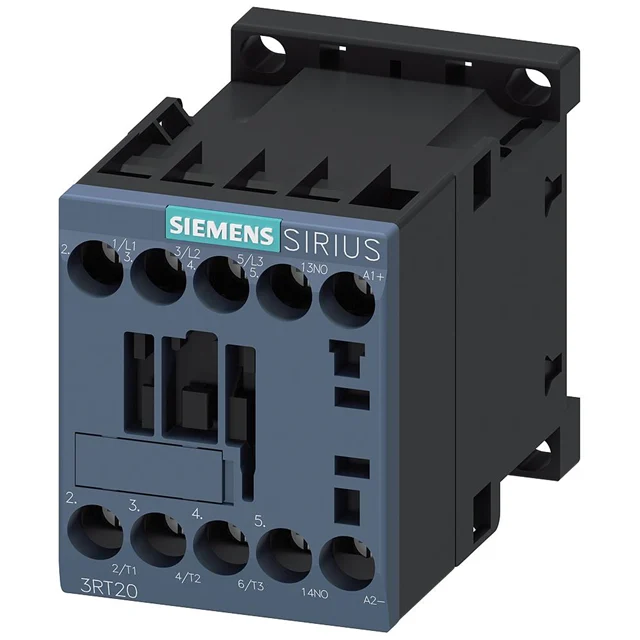

The Siemens 3RT2016-1BB41 is a SIRIUS 3RT2 series 3-pole power contactor designed for reliable switching of three-phase motors and industrial loads. It comes with mirror contact elements, screw terminal connections, and a 24 V DC control coil, making it suitable for use in motor control centers (MCCs), automation systems, HVAC installations, machinery, and industrial power distribution systems.
This model belongs to the compact S00 frame size and is rated for AC-3e/AC-3 duty up to 9 A, with a motor capacity of approximately 4 kW at 400 V AC. It is commonly used in small to medium motor control applications where stable switching and PLC compatibility are required.
According to Siemens official specifications, the 3RT2016-1BB41 includes a 3-pole main switching system, 1 NO auxiliary contact, and screw terminal connections, ensuring reliable wiring and stable operation in control panels.
The integrated mirror contact elements provide mechanically linked feedback of the main contacts, which is essential for PLC interlocking, safety circuits, and system monitoring. This ensures that the controller can confirm whether the contactor is actually energized or de-energized, improving operational safety and diagnostics.
With robust screw terminals, installation is secure and vibration-resistant, making it suitable for long-term industrial use in harsh environments.
• Siemens SIRIUS 3RT2 series power contactor
• Model: 3RT2016-1BB41
• 3-pole motor switching contactor
• Rated AC-3 current: ~9 A
• Motor rating: ~4 kW @ 400 V AC
• Control coil: 24 V DC
• Mirror contact elements for safe feedback and monitoring
• Screw terminal connection system
• Compact S00 frame size
• 1 NO auxiliary contact (built-in)
• High electrical endurance and reliability
• Suitable for industrial automation and MCC panels
• Compatible with Siemens SIRIUS modular accessories
| Parameter | Specification |
|---|---|
| Product Series | Siemens SIRIUS 3RT2 |
| Model Number | 3RT2016-1BB41 |
| Product Type | Power Contactor |
| Contactor Configuration | 3 Pole |
| Rated Current (AC-3) | ~9 A |
| Motor Rating | ~4 kW @ 400 V AC |
| Coil Type | 24 V DC Control Coil |
| Auxiliary Contact | 1 NO |
| Contact Feedback | Mirror Contact Elements |
| Terminal Type | Screw Terminals |
| Frame Size | S00 |
| Application | Motor Control & Power Switching |
| Brand | Siemens |
