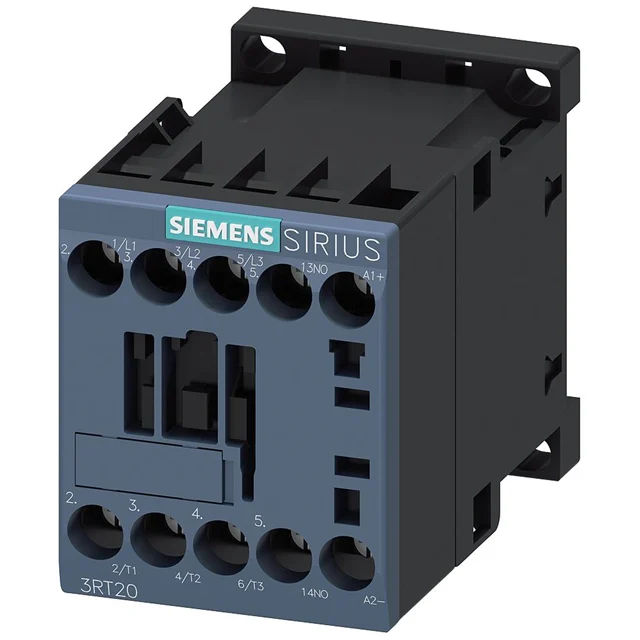

The Siemens 3RT2017-1FB41 is a SIRIUS 3RT2 series 3-pole power contactor designed for reliable switching of three-phase motors up to 5.5 kW at 400 V AC. It features mirror contact elements, screw terminal connections, and a 24 V DC control coil with integrated diode, making it suitable for motor control centers (MCCs), automation systems, HVAC applications, and industrial power distribution systems.
This model belongs to the compact S00 frame size and is rated for AC-3 / AC-3e duty up to 12 A, making it a standard industrial-grade solution for small motor control and switching applications.
According to Siemens technical listings, the 3RT2017-1FB41 includes 1 NO auxiliary contact, 24 V DC coil with integrated diode, screw terminals, and S00 size construction, ensuring compact installation and reliable performance in control panels.
The mirror contact elements provide mechanically linked feedback of the main contacts, which is essential for PLC interlocking, safety circuits, and machine monitoring systems, allowing the controller to verify the true ON/OFF status of the contactor for safe operation and diagnostics.
With screw terminals, wiring remains secure, vibration-resistant, and suitable for long-term industrial use.
• Siemens SIRIUS 3RT2 series power contactor
• Model: 3RT2017-1FB41
• 3-pole motor switching contactor
• Rated AC-3 current: 12 A
• Motor rating: 5.5 kW @ 400 V AC
• Control coil: 24 V DC with integrated diode
• Mirror contact elements for safety feedback
• Screw terminal connection system
• Compact S00 frame size
• 1 NO auxiliary contact
• High electrical endurance and reliable switching
• Suitable for industrial automation and MCC panels
• Compatible with Siemens SIRIUS modular accessories
| Parameter | Specification |
|---|---|
| Product Series | Siemens SIRIUS 3RT2 |
| Model Number | 3RT2017-1FB41 |
| Product Type | Power Contactor |
| Contactor Configuration | 3 Pole |
| Rated Current (AC-3) | 12 A |
| Motor Rating | 5.5 kW @ 400 V AC |
| Coil Type | 24 V DC (with integrated diode) |
| Auxiliary Contact | 1 NO |
| Contact Feedback | Mirror Contact Elements |
| Terminal Type | Screw Terminals |
| Frame Size | S00 |
| Application | Motor Control & Power Switching |
| Brand | Siemens |
