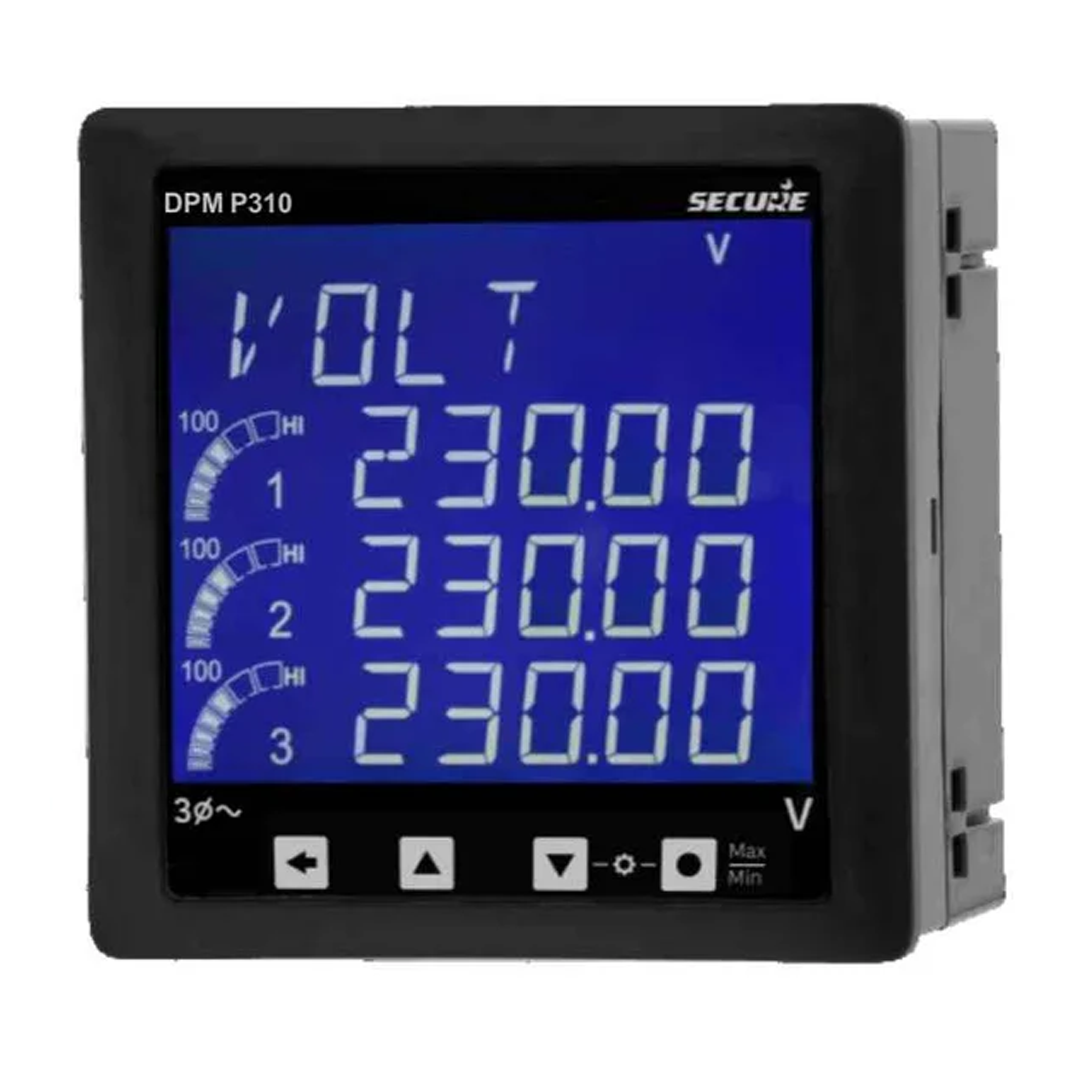

The DPM96P310-2 Three-Phase LED Digital Power Factor Meter is a high-precision instrument designed to measure and display the power factor (PF) in three-phase electrical systems. Built in a standard 96×96 mm panel size, this meter is ideal for installation in control panels, switchgear, and power distribution systems.
Equipped with a bright LED display, the meter provides clear and accurate readings even in low-light or industrial environments. It continuously monitors the power factor, helping users maintain energy efficiency and reduce power losses in electrical systems.
The DPM96P310-2 is specifically designed for three-phase applications, making it suitable for industries such as manufacturing, power plants, automation systems, and commercial infrastructure. Monitoring power factor is essential for optimizing electrical performance, avoiding penalties from utilities, and improving overall energy efficiency.
This meter works efficiently with voltage and current inputs (via CTs if required) to calculate the real-time power factor. It delivers high accuracy, fast response, and stable performance, ensuring reliable operation in demanding environments.
The compact and rugged design allows easy installation in standard panel cutouts, while the simple wiring configuration ensures quick setup for electricians and technicians. With minimal maintenance and long service life, the DPM96P310-2 is a cost-effective solution for continuous power factor monitoring.
| Parameter | Details |
|---|---|
| Model | DPM96P310-2 |
| Display Type | LED Digital Display |
| Measurement | Power Factor (PF) |
| System | Three Phase |
| PF Range | 0.00 – 1.00 (Lag/Lead) |
| Input Voltage | 415V AC (Typical) |
| Input Current | Via CT (e.g., 5A secondary) |
| Accuracy | ±0.5% of Full Scale |
| Display Size | 96 × 96 mm |
| Mounting | Panel Mount |
| Frequency | 50/60 Hz |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 70°C |
| Protection Level | IP54 (Front Panel) |
