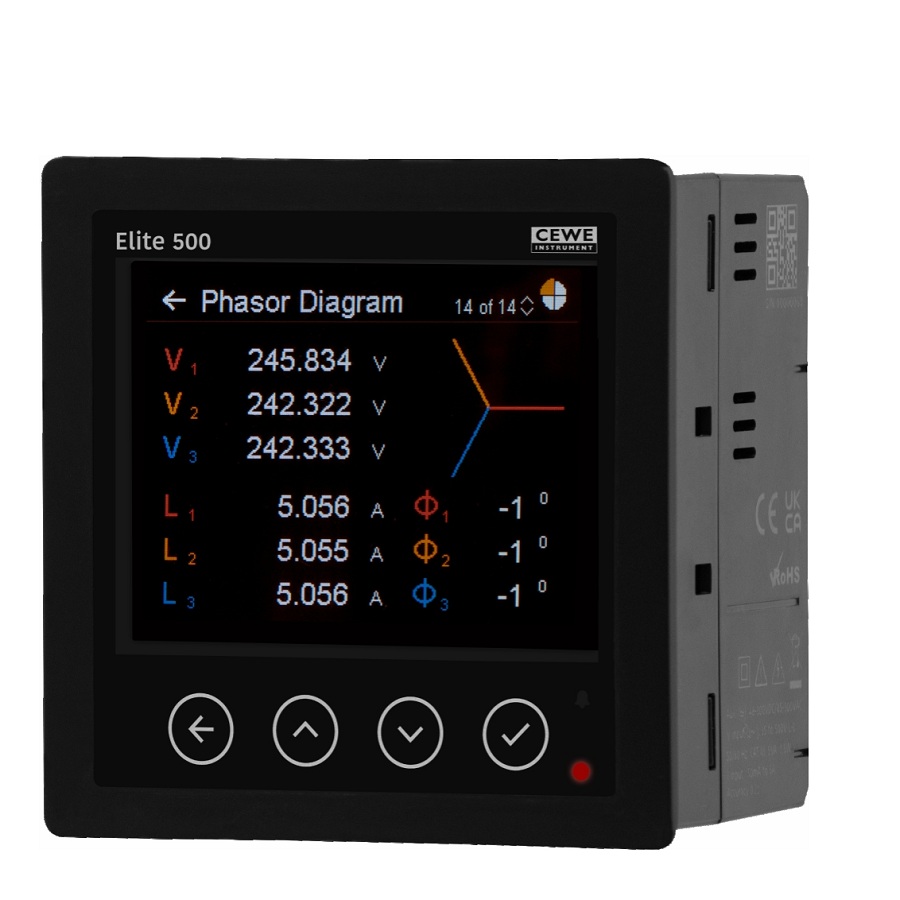

Elite 500 with Rogowski Coil – Model E500R-53C2
The Elite 500 Model E500R-53C2, integrated with an advanced Rogowski Coil, is a high-performance AC current monitoring device designed for modern industrial and commercial electrical systems. This model delivers exceptional accuracy, flexibility, and safety, making it an ideal solution for applications where traditional current transformers (CTs) are impractical or difficult to install.
The Rogowski Coil technology used in the E500R-53C2 provides a major advantage in terms of installation and usability. Unlike conventional CTs, the flexible Rogowski coil can be easily wrapped around conductors without disconnecting the circuit. This non-intrusive installation significantly reduces downtime and simplifies retrofitting in existing systems, making it highly suitable for maintenance and upgrade projects.
The E500R-53C2 offers precise current measurement across a wide range, ensuring accurate monitoring of electrical parameters. It features excellent linearity and minimal phase shift, allowing reliable performance even under dynamic load conditions. This makes it highly effective for applications such as energy monitoring, load analysis, power quality assessment, and system diagnostics.
Designed for panel mounting, the device integrates seamlessly into electrical control panels, switchgear systems, and automation environments. Its compact and rugged design ensures optimal space utilization while maintaining high durability. The model is equipped with a high-brightness LED display that provides clear, real-time readings, enabling operators to monitor current values efficiently.
One of the most significant benefits of the Rogowski Coil is enhanced safety. Since it does not contain a ferromagnetic core, it eliminates the risk of dangerous open-circuit voltages commonly associated with traditional CTs. This makes the E500R-53C2 a safer option for high-current applications and ensures protection for both operators and equipment.
The device is constructed using high-quality industrial-grade materials that offer excellent resistance to environmental conditions such as heat, dust, and electrical noise. This ensures long-lasting performance and reliability even in harsh industrial environments. The low maintenance requirement further enhances its cost-effectiveness.
The E500R-53C2 also incorporates essential protection features, including overload protection, short circuit protection, and voltage protection. These built-in safeguards help maintain system stability and protect connected equipment from potential damage.
In addition to performance and safety, the model is designed with energy efficiency in mind. It consumes minimal power while delivering high operational performance, making it suitable for continuous industrial use.
The E500R-53C2 is widely used in various industries such as power distribution, renewable energy, manufacturing, and industrial automation. It is particularly useful in applications that require flexible installation, high-current measurement, and non-intrusive monitoring.
In conclusion, the Elite 500 with Rogowski Coil (E500R-53C2) is a modern, reliable, and highly efficient current monitoring solution. Its flexibility, safety, and precision make it a preferred choice for advanced industrial applications.
General Specifications:
Electrical Specifications:
Display Features:
Rogowski Coil Features:
Environmental Specifications:
Mechanical Specifications:
Safety & Protection:
Applications:
Installation & Maintenance:
