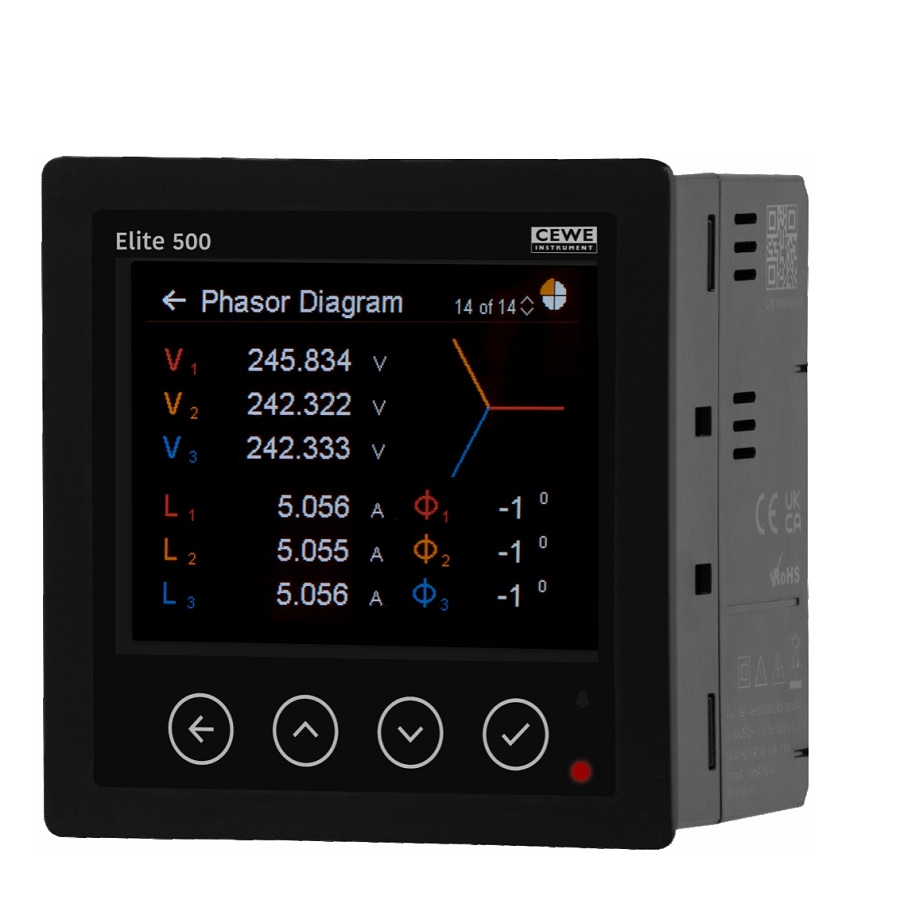

Elite 500 with Rogowski Coil – Model E500R-51E2
The Elite 500 Model E500R-51E2, integrated with a high-performance Rogowski Coil, is an advanced AC current monitoring device designed for modern industrial and commercial applications. This model delivers superior flexibility, safety, and measurement accuracy, making it an ideal alternative to traditional current transformers (CTs), especially in installations where ease of use and non-intrusive measurement are essential.
The E500R-51E2 utilizes Rogowski Coil technology, which offers a flexible and lightweight sensing solution for current measurement. Unlike conventional CTs, the Rogowski coil can be easily wrapped around conductors without disconnecting the electrical circuit. This non-intrusive installation reduces downtime and simplifies retrofitting, making the device highly suitable for maintenance operations and system upgrades.
The device provides highly accurate AC current measurement across a wide operating range. With excellent linearity and minimal phase shift, it ensures precise monitoring even under fluctuating load conditions. This makes it ideal for applications such as energy monitoring, load analysis, power quality monitoring, and electrical diagnostics.
Designed for panel mounting, the E500R-51E2 integrates seamlessly into electrical control panels, switchgear systems, and industrial automation setups. Its compact and rugged design ensures durability while optimizing panel space. The high-brightness LED display provides clear and real-time readings, allowing operators to monitor electrical parameters efficiently.
One of the key advantages of the Rogowski Coil is enhanced safety. Since it does not use a magnetic core, it eliminates the risk of dangerous open-circuit voltages associated with traditional CTs. This ensures safer operation in high-current environments and provides better protection for both equipment and personnel.
The E500R-51E2 is constructed using industrial-grade materials that offer excellent resistance to environmental factors such as heat, dust, and electrical noise. This ensures long-term reliability and stable performance even in harsh industrial conditions. Its robust construction reduces maintenance needs and increases operational efficiency.
The device is equipped with advanced protection features, including overload protection, short circuit protection, and voltage protection. These built-in safety mechanisms help safeguard both the device and connected systems, ensuring stable and secure operation.
Energy efficiency is another important feature of the E500R-51E2. It consumes minimal power while delivering high performance, making it a cost-effective solution for continuous industrial usage.
The E500R-51E2 is widely used in industries such as power distribution, renewable energy systems, manufacturing, and industrial automation. It is particularly useful in applications that require flexible installation and accurate high-current measurement without interrupting system operations.
In conclusion, the Elite 500 with Rogowski Coil (E500R-51E2) is a reliable, efficient, and modern current monitoring solution. Its flexibility, safety, and precision make it an excellent choice for advanced industrial applications.
General Specifications:
Electrical Specifications:
Display Features:
Rogowski Coil Features:
Environmental Specifications:
Mechanical Specifications:
Safety & Protection:
Applications:
Installation & Maintenance:
