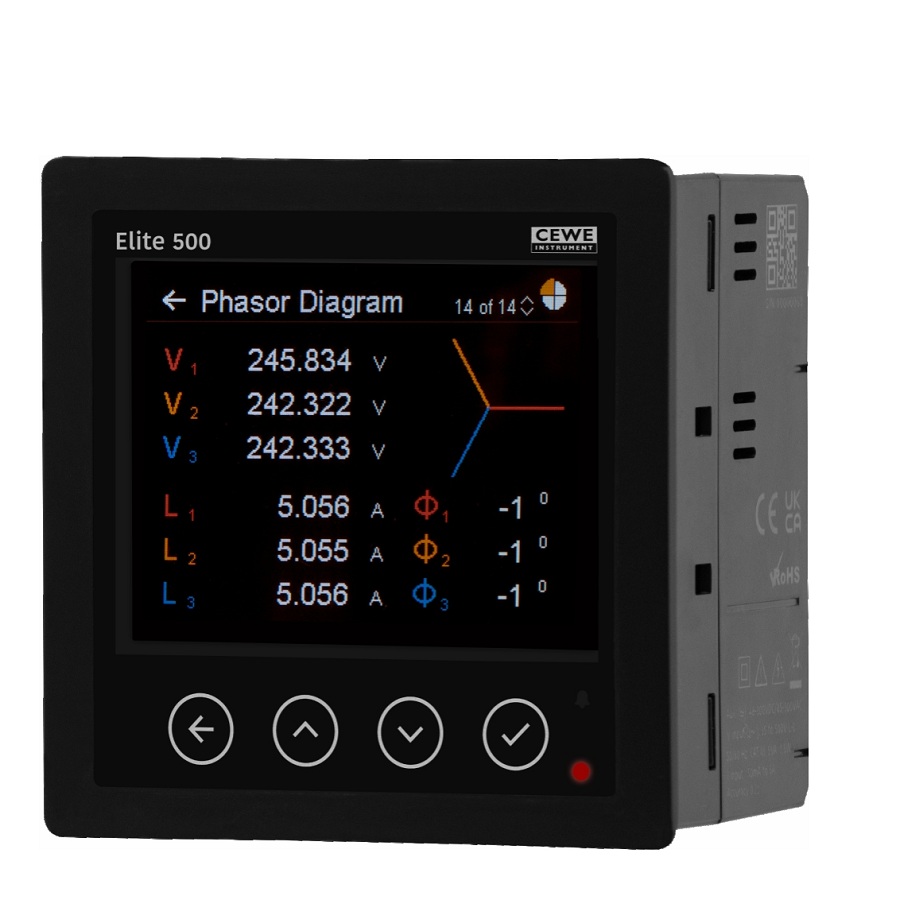

Elite 500 with Rogowski Coil – Model E500R-54E2
The Elite 500 Model E500R-54E2, integrated with an advanced Rogowski Coil, is a high-precision AC current monitoring device designed to meet the demands of modern industrial and commercial electrical systems. This model combines flexibility, safety, and superior accuracy, making it an ideal alternative to traditional current transformers (CTs), particularly in applications requiring non-intrusive installation and high-current measurement.
The E500R-54E2 utilizes Rogowski Coil technology, which offers a flexible and lightweight solution for current sensing. Unlike conventional CTs, the Rogowski coil can be easily wrapped around conductors without disconnecting the circuit. This non-intrusive installation method reduces downtime and simplifies retrofitting, making it highly suitable for maintenance tasks and system upgrades.
The device ensures accurate AC current measurement across a wide operating range. With excellent linearity and minimal phase shift, it provides reliable performance even under fluctuating load conditions. This makes it suitable for applications such as energy monitoring, load analysis, power quality assessment, and electrical diagnostics.
Designed for panel mounting, the E500R-54E2 integrates seamlessly into electrical control panels, switchgear systems, and industrial automation environments. Its compact and rugged design ensures durability while optimizing space usage. The device features a high-brightness LED display that provides clear, real-time readings, allowing operators to monitor electrical parameters efficiently.
One of the major advantages of Rogowski Coil technology is enhanced safety. Since it does not use a magnetic core, it eliminates the risk of dangerous open-circuit voltages associated with traditional CTs. This ensures safer operation in high-current environments and protects both personnel and equipment.
The E500R-54E2 is constructed using high-quality industrial-grade materials that offer excellent resistance to environmental factors such as dust, heat, and electrical interference. This ensures long-term reliability and stable performance even in harsh industrial conditions. The robust construction reduces maintenance needs and increases operational efficiency.
The device is equipped with advanced protection features such as overload protection, short circuit protection, and voltage protection. These safety mechanisms help safeguard the device and connected systems, ensuring stable and secure operation.
Energy efficiency is another important feature of the E500R-54E2. It consumes minimal power while delivering high performance, making it a cost-effective solution for continuous industrial use.
The E500R-54E2 is widely used across industries including power distribution, renewable energy systems, manufacturing, and industrial automation. It is particularly effective in applications requiring flexible installation and accurate high-current measurement without interrupting system operations.
In conclusion, the Elite 500 with Rogowski Coil (E500R-54E2) is a reliable, efficient, and modern current monitoring solution. Its flexibility, safety, and precision make it an excellent choice for advanced industrial applications.
General Specifications:
Electrical Specifications:
Display Features:
Rogowski Coil Features:
Environmental Specifications:
Mechanical Specifications:
Safety & Protection:
Applications:
Installation & Maintenance:
