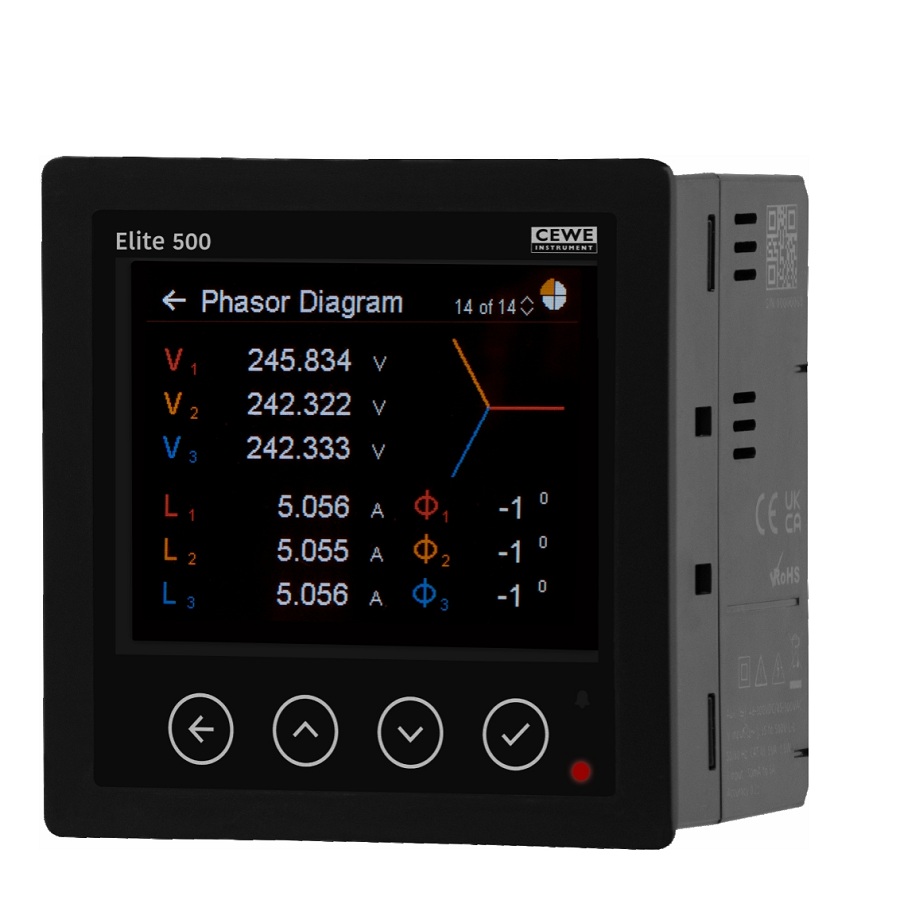

The Elite 500 with Rogowski Coil (Model: E500R-52F2) is a high-performance, multifunctional power monitoring device designed for accurate measurement of electrical parameters in industrial and commercial applications. This advanced energy meter integrates seamlessly with flexible Rogowski coils, enabling easy installation in confined spaces and around large conductors without disconnecting the circuit.
Built for precision and reliability, the Elite 500 offers real-time monitoring of voltage, current, power, energy consumption, frequency, and power factor. Its compatibility with Rogowski coils makes it ideal for retrofitting existing systems where traditional current transformers (CTs) are difficult to install.
The device features a user-friendly interface, high-resolution display, and communication capabilities for integration with SCADA and energy management systems. With robust construction and high accuracy, the E500R-52F2 ensures efficient energy analysis, helping businesses optimize power usage and reduce operational costs.
| Parameter | Details |
|---|---|
| Model | E500R-52F2 |
| Display Type | LED / LCD Digital Display |
| Input Voltage Range | 3 Phase, 4 Wire (Typically 415V AC) |
| Current Input | Via Rogowski Coil |
| Measurement Type | True RMS |
| Frequency Range | 45 – 65 Hz |
| Accuracy Class | ±0.5% or better |
| Measured Parameters | V, I, kW, kVA, kVAR, PF, Hz, kWh |
| Communication | RS485 with Modbus RTU |
| Mounting Type | Panel Mount (96x96 mm) |
| Operating Temperature | -10°C to +55°C |
| Power Supply | Auxiliary Supply Required |
| Insulation & Safety | As per IEC standards |
