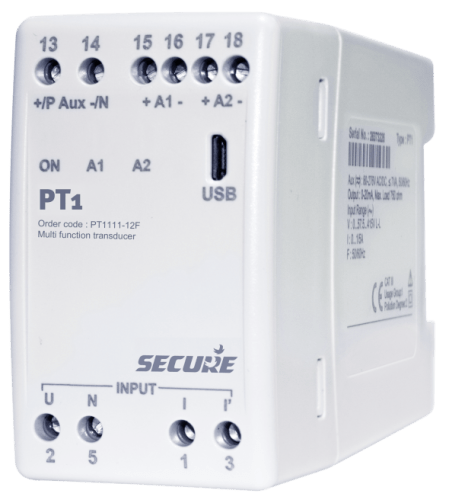

The Secure PT1 XX1-156 is a high-precision single-phase AC Active Power Transducer designed for accurate True RMS active power (kW) measurement and analog signal conversion in industrial power monitoring and automation systems. Featuring Accuracy Class 0.5, it provides 2 galvanically isolated analog outputs (mA or Voltage) for seamless integration with PLCs, SCADA systems, DCS, and energy management platforms. Its compact DIN rail-mounted design, configurable input/output ranges, and USB programming interface make it ideal for switchgear, power distribution panels, OEM equipment, and industrial control applications.
| Parameter | Specification |
|---|---|
| Brand | Secure |
| Model | PT1 XX1-156 |
| Product Type | AC Active Power Transducer |
| System | Single Phase |
| Measurement | Active Power (kW) |
| Accuracy Class | 0.5 |
| Analog Outputs | 2 Isolated Outputs |
| Output Type | Configurable (mA / Voltage) |
| Voltage Input | 57.7–415 V AC (Measuring Range: 0–130% of Un, up to 500 V) |
| Current Input | 1 A / 5 A CT |
| Frequency | 45–55 Hz or 55–65 Hz |
| Response Time | 100–220 ms |
| Mounting | DIN Rail (EN 50022) |
| Configuration | Micro USB with ConfigView Software |
| Protection | IP40 (Housing), IP20 (Terminals) |
| Standards | IEC 60688, IEC 61010-1, IEC 61010-2-30, IEC 61326-1 |
| Applications | PLC Panels, SCADA Systems, DCS, Switchgear, Industrial Automation, Power Monitoring, Energy Management |
